Grün VPM Series SWIR Sorting System

Grün VPM Series SWIR Sorting System is a premium sorting solution designed for E-waste processing plants to accurately recover 5+ plastic types (ABS/PS/PC/PP/PE) from shredded E-waste based on their molecular bond vibrations without manual pre-sorting, achieving 90%+ purity for high-end recycled plastic markets.

Applications

Technical Features

● Tailored SWIR Sorting System for Plastic Recovery in E-waste

   ✦ Innovative high-capacity 2-layer vibratory feeding system evenly distributes shredded E-waste into a single layer to minimize overlapping

   ✦ Sealed scanning and control boxes provide machine with high-level dust protection

   ✦ Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

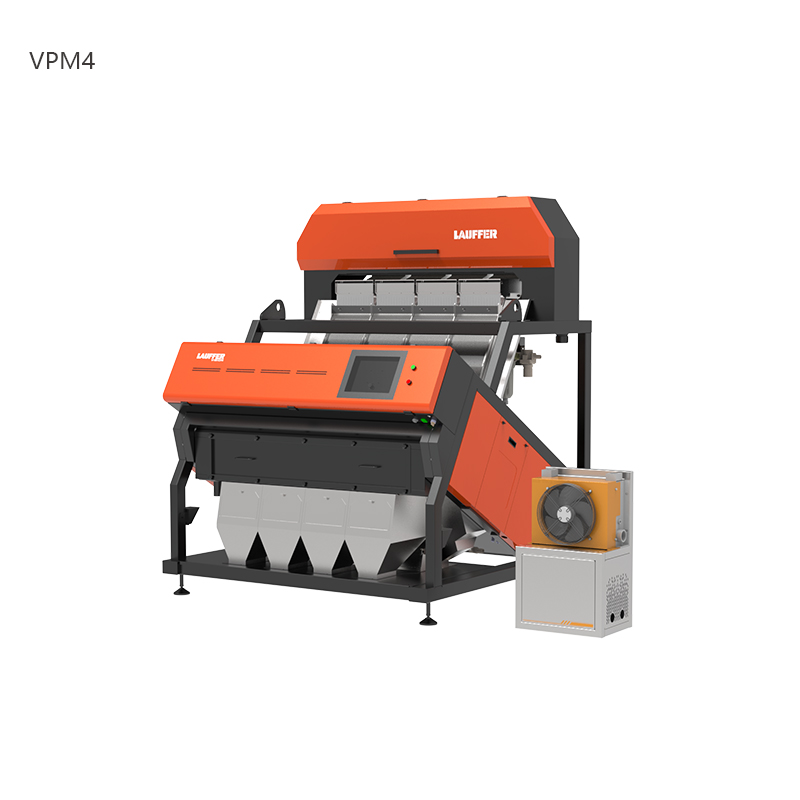

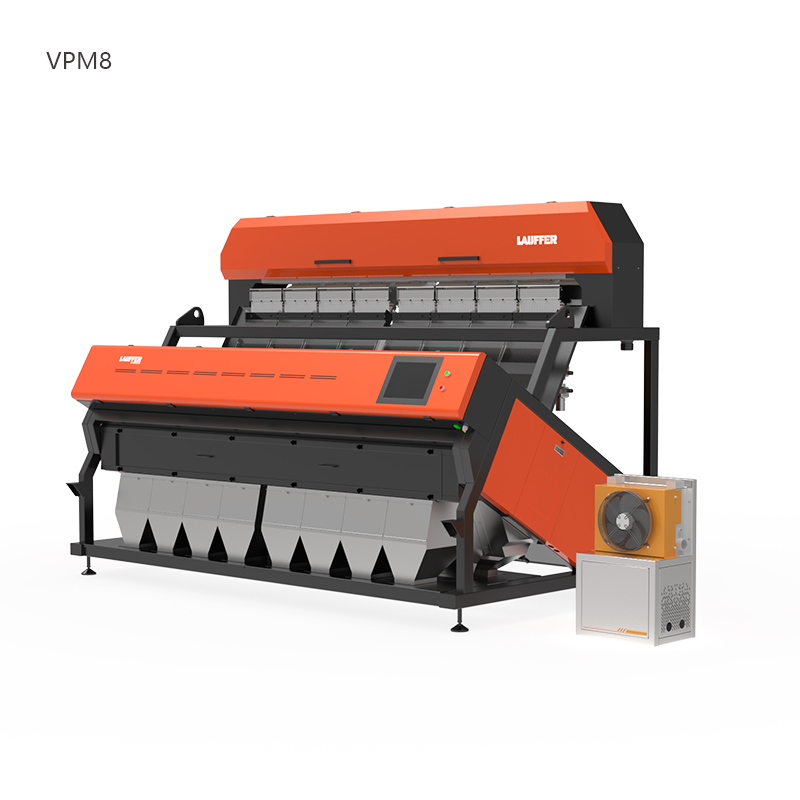

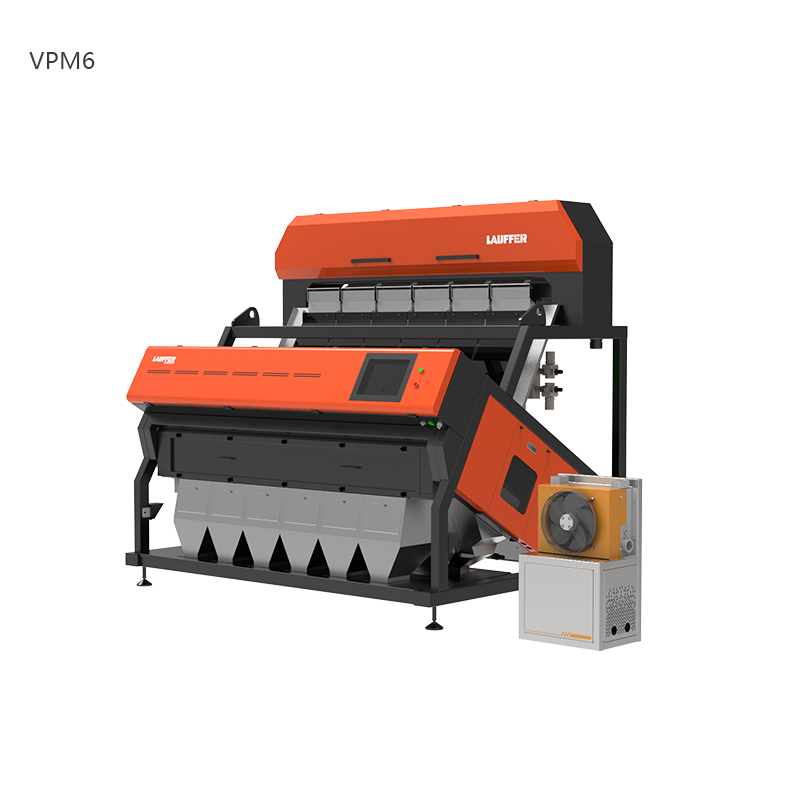

   ✦ Modular design of vertical frame size from 4 to 8 chutes (4/6/8) provides processors more flexibility

● Premium Industrial Inspection System

   ✦ Dual-Band InGaAs-SWIR Camera System

      ✩ Accurate detection to polymer types (ABS/PS/PC/PP/PE,etc.) based on molecular bond vibrations

   ✦ Stable Air Cooling System maintains InGaAs sensor and Halogen Lighting System stabilities in hot environments

● High-Performance Air Ejector System

   ✦ Engineered for enhanced durability, optimized speed and air consumption

   ✦ Accurate rejection and reliable performance at high-capacity sorting

   ✦ Adjustable settings for typical plastic flake sizes (3-15 mm)

● 15-Inch Industrial Touchscreen Control Panel

   ✦ Intuitive HMI with multilingual support

   ✦ Instant switching between product profiles

   ✦ Comprehensive remote support system

      ✩ Remote Access and Monitoring

      ✩ Real-time Performance Dashboard

      ✩ Live Expert Diagnosis

      ✩ Interactive Troubleshooting

Specifications
