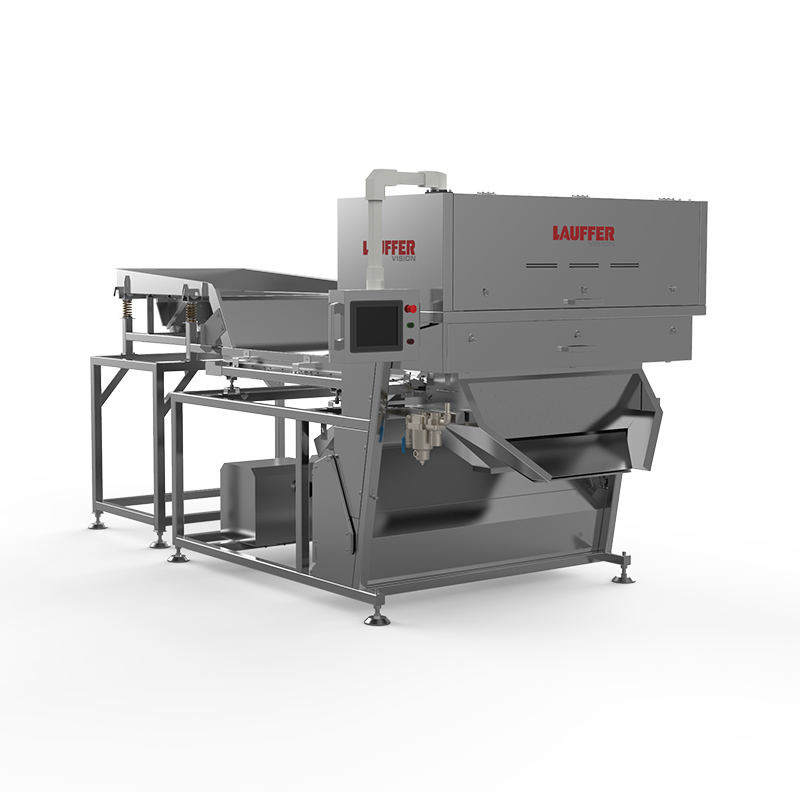

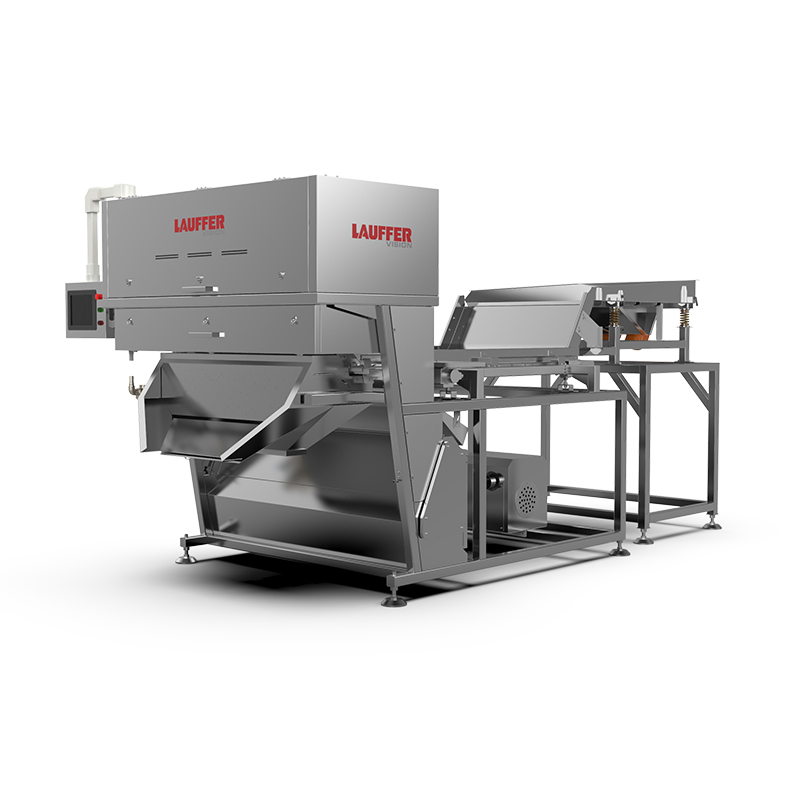

Legende H Series AI Optical Sorting System is a superior solution to accurately sort dehydrated vegetables by AI powered MSI (Multi-Spectral Imaging) and effectively remove discolored or impurities to enhance quality standards.
Applications
Technical Features
● Tailored Optical Sorting System for Dehydrated Vegetables
✦ Compact single-belt sorting system with quick-install design

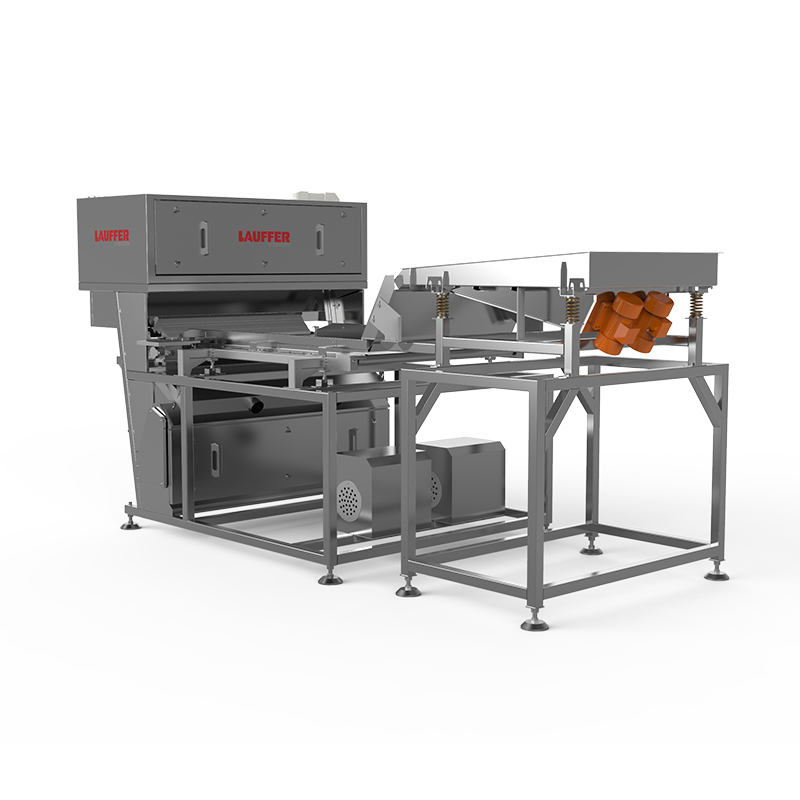

✦ Optional innovative high-capacity 2-layer vibratory feeding system evenly distributes dehydrated vegetables into a single layer to minimize overlapping
✦ Food-grade stainless steel structure complies with global food safety and hygiene standards
✦ Sealed scanning and control boxes provides machine with high-level dust protection
✦ Quick belt change ensures convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards
✦ Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime
✦ Modular design of belt width from 300 to 1200mm (300/600/1200) provides processors more flexibility
● AI Powered 4-In-1 Multi-Spectral Defect Inspection System
✦ Proprietary AI Deep Learning algorithms continuously improve defect recognition based on new samples
✦ High-Resolution RGB Camera System
✦ High-Intensity LED Illumination System
✦ Optional InGaAs-SWIR Camera System
✦ Optional UV Fluorescence Camera System
✦ Market-leading high-precision detection to a wide range of defects in dehydrated vegetables by color, size, shape and texture features:
✩ Color Defects: Browning, discoloration, charred spots, mold, skin residues
✩ Shape Defects: Broken fragments, clumped pieces, deformed shapes, oversized, undersized
✩ Drying Defects: Uneven dehydration, sugar crystallization, rehydration stains
✩ Foreign Material Contamination: plastic/rubber fragments
✩ Biological Contamination: Microbial colonies
● High-Performance Air Ejector System
✦ Engineered for enhanced durability, optimized speed and air consumption
✦ Accurate rejection and reliable performance at high-capacity sorting
✦ Significant reduction in false rejection rate and total cost of ownership
● 15-Inch Industrial Touchscreen Control Panel
✦ Intuitive HMI with multilingual support
✦ Instant switching between product profiles
✦ Comprehensive remote support system
✩ Remote Access and Monitoring
✩ Real-time Performance Dashboard
✩ Live Expert Diagnosis
✩ Interactive Troubleshooting
Specifications
|
Model |
Belt Width (mm) |
Air Nozzle |
Air Pressure (MPa) |
Air Consumption (m3/min) |
Voltage |
Power (kW) |
Dimension (mm) |
Unpacked Weight (kg) |
|

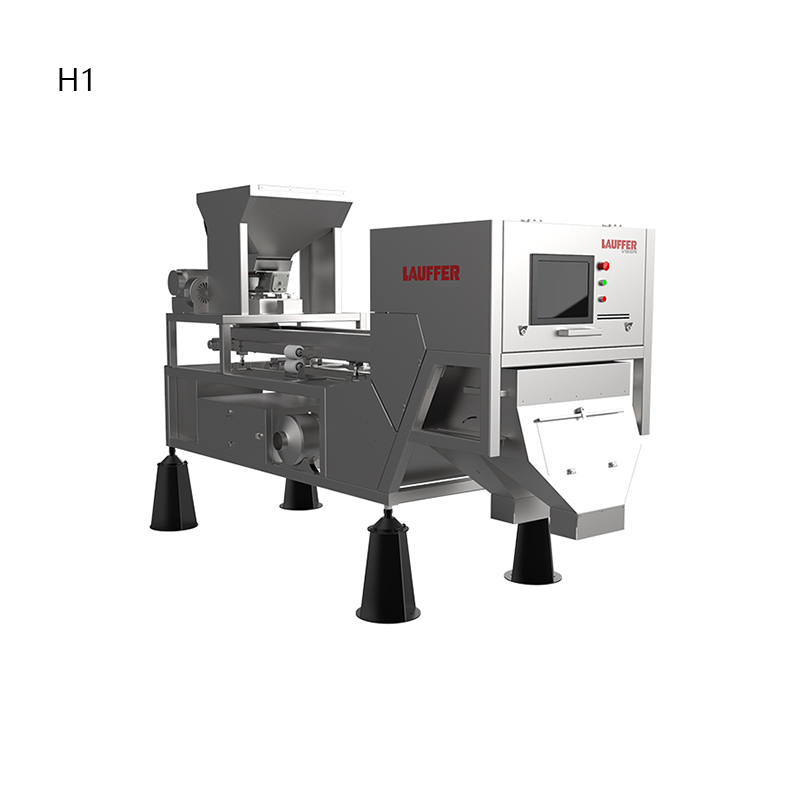

Legende H1 |
300 | 64 | 0.6~0.8 | <1.2 | 220V～50/60Hz | 3.2 | 3385×1251×2127 | 710 |
|

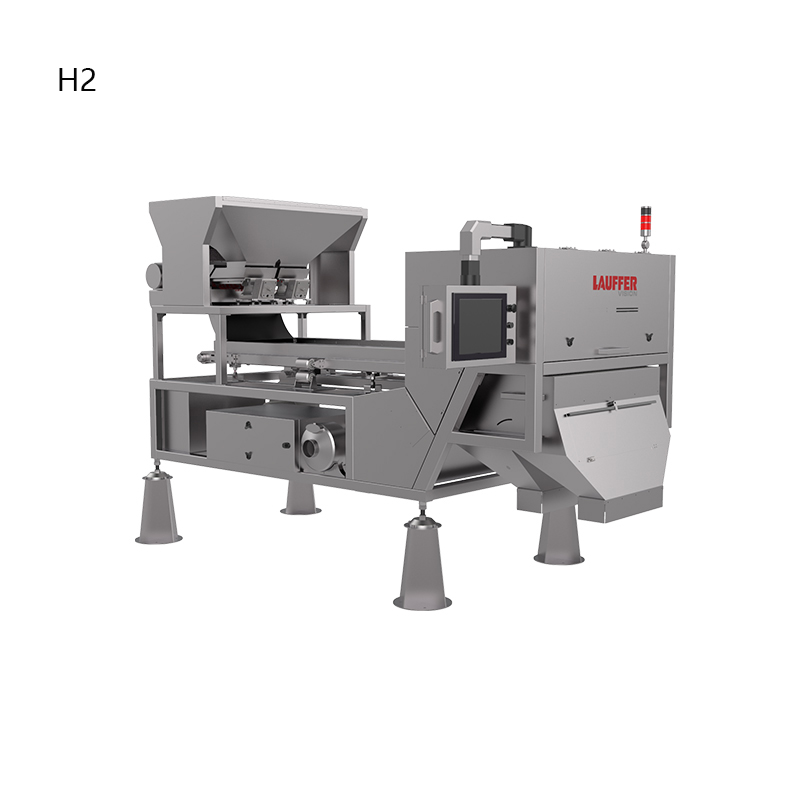

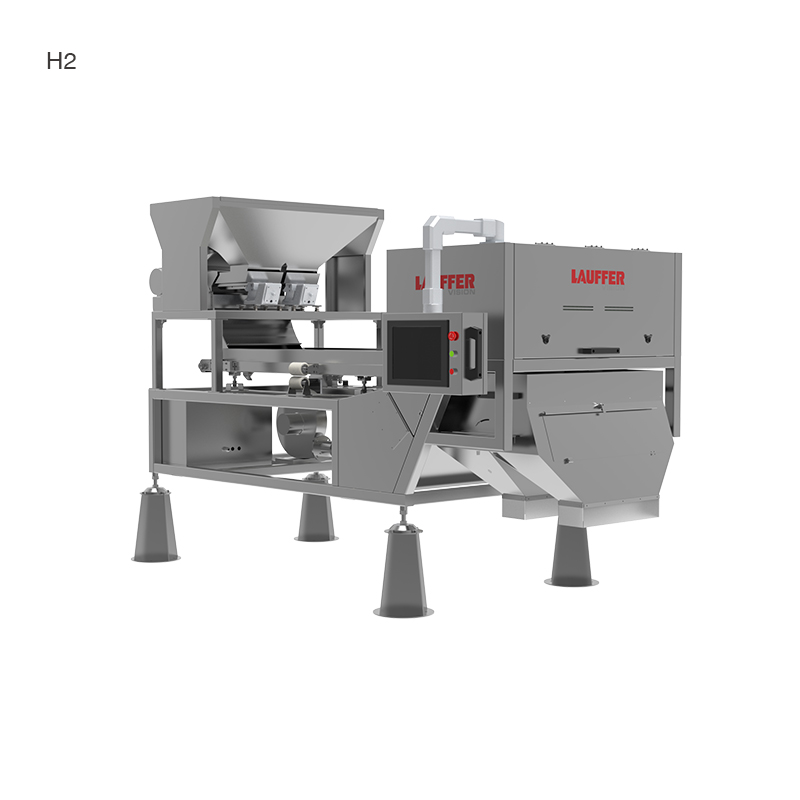

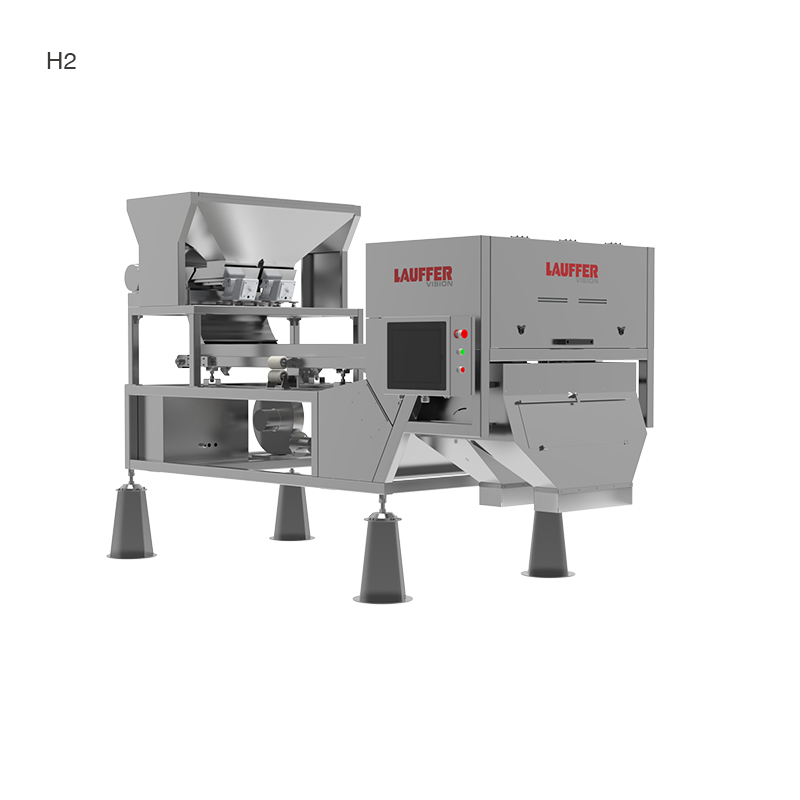

Legende H2 |
600 | 128 |
0.6~0.8 |
<2.4 |
220V～50/60Hz |
3.6 |
3385×1826×2127 |
881 |
|

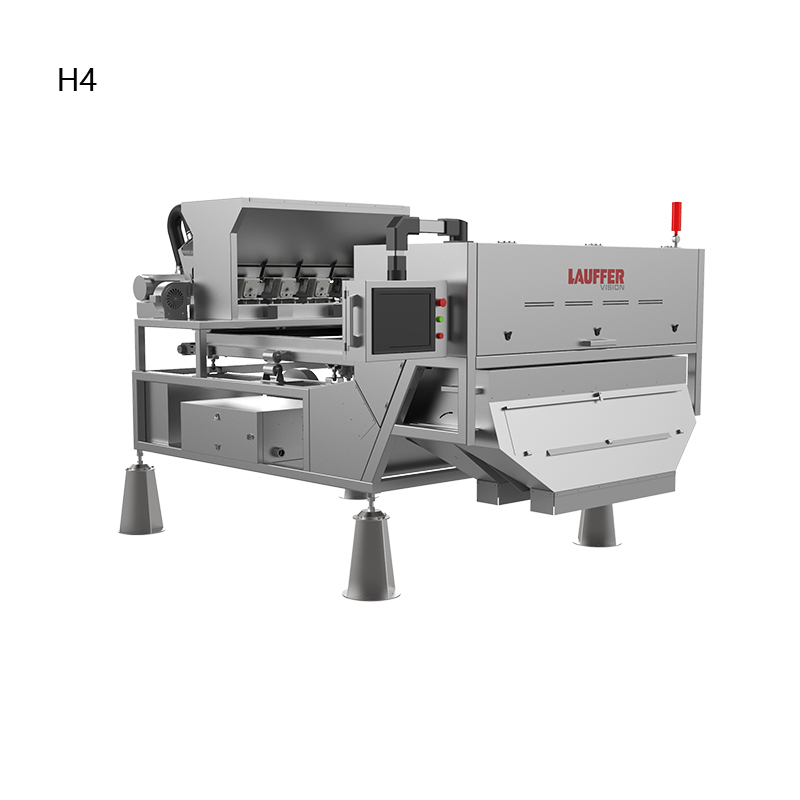

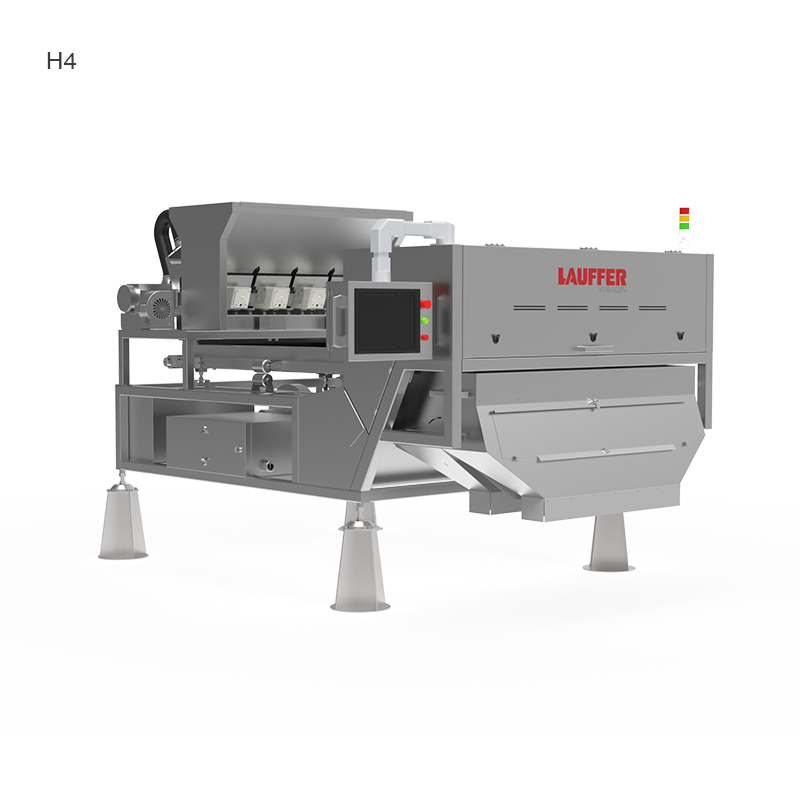

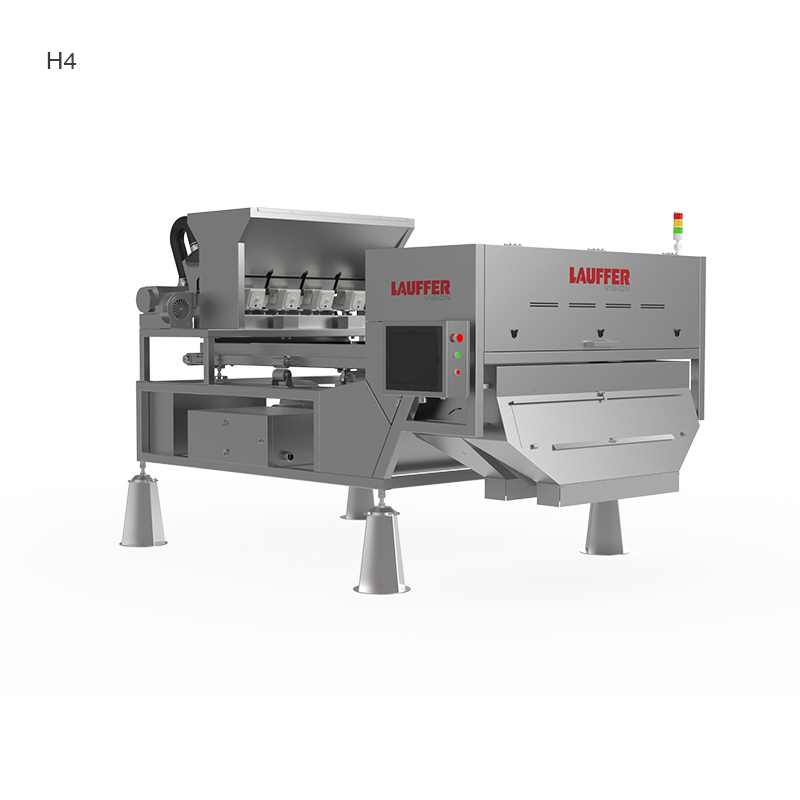

Legende H4 |
1200 | 256 |
0.6~0.8 |
<3.6 |
220V～50/60Hz |
4.4 |
3385×2426×2127 |
1121 |
