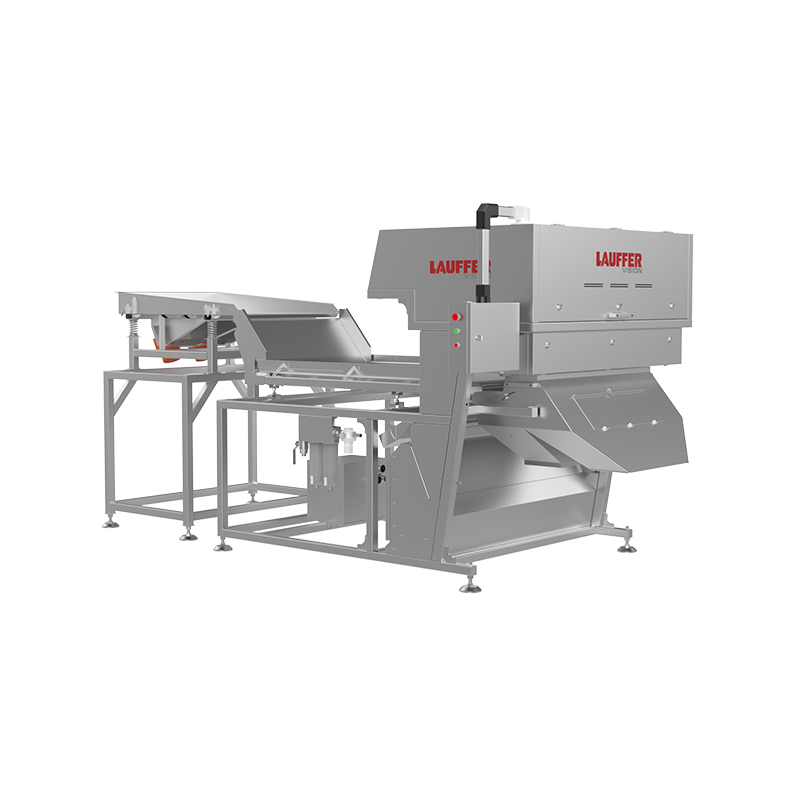

Göttin VGV AI Optical Sorter

AI-powered high-precision defect removal and quality grading with industry-leading accuracy for dehydrated vegetables
Application:
Mode:
Chute:
Air Nozzles:

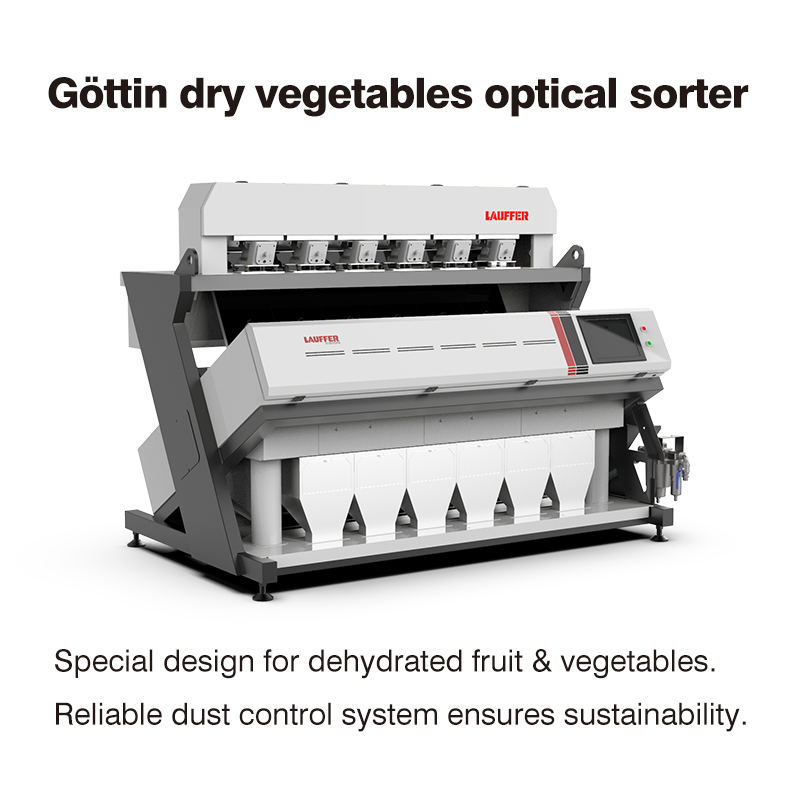

Göttin VGV optical sorter is a premium solution to enable automated sorting and quality control for dehydrated vegetables by high-speed spectral analysis and impurity detection


Technical Features


l Tailored Sorting Solution for Dehydrated Vegetables

² Innovative high-capacity 2-layer vibratory feeder evenly distributes dehydrated vegetables into a single layer to minimize overlapping

² Sealed scanning and control boxes provide machine with high-level dust protection

² Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

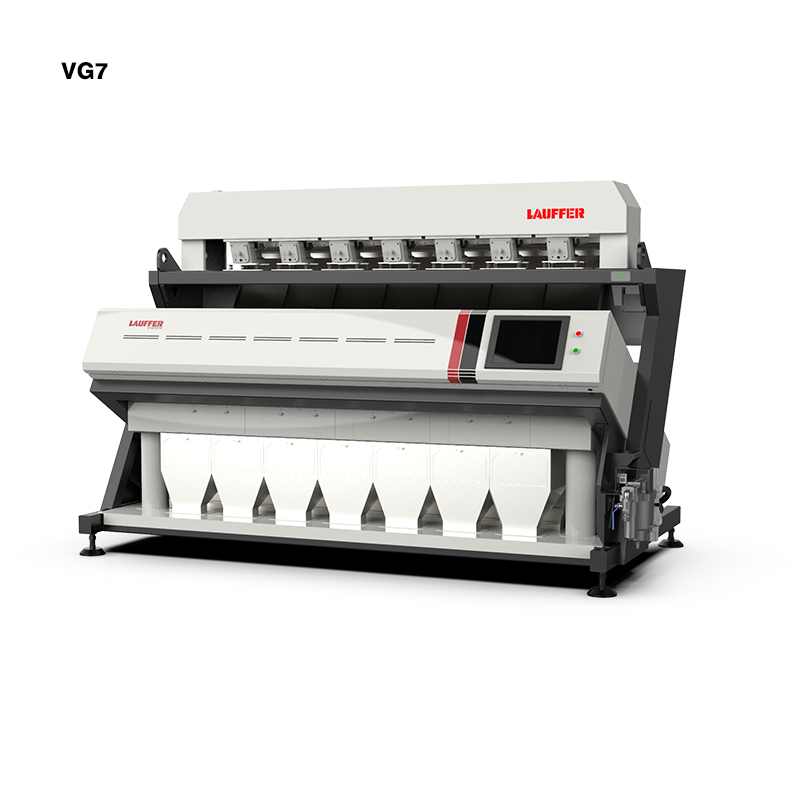

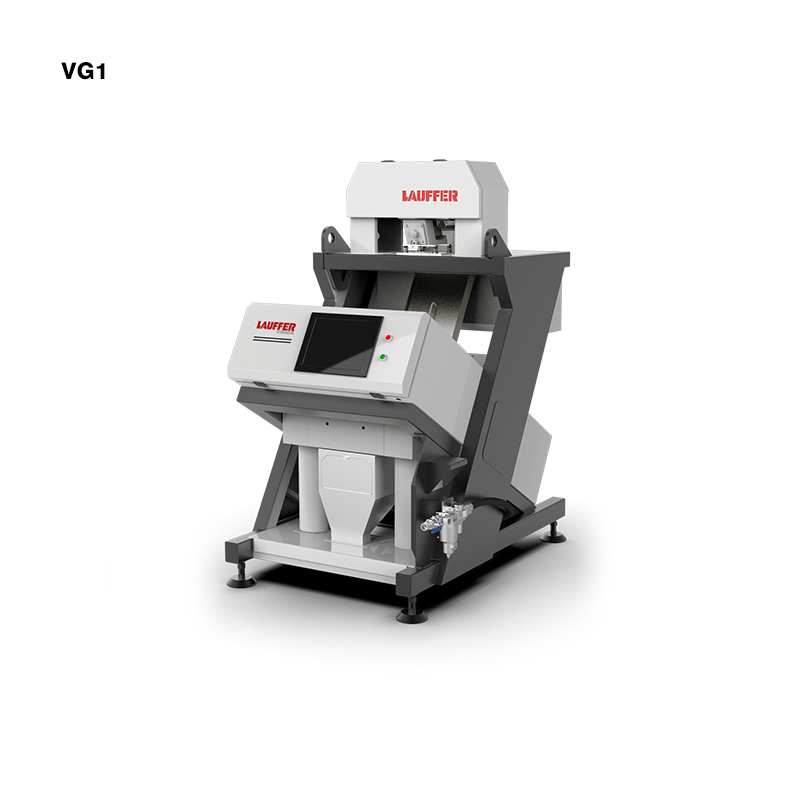

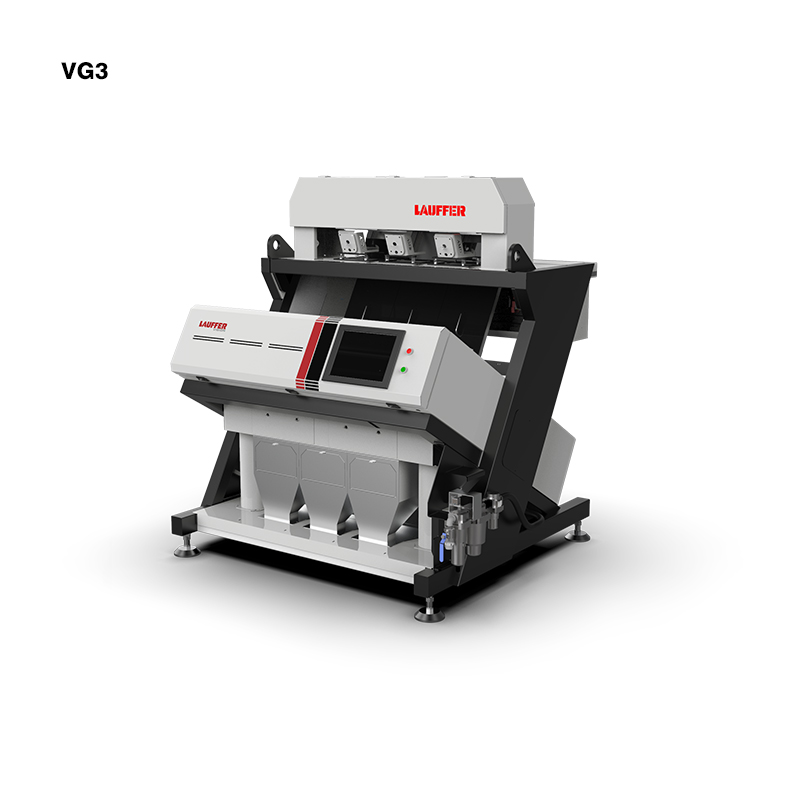

² Modular design of vertical frame size from 1 to 12 chutes (1/3/4/5/6/7/8/10/12) provides processors more flexibility



l AI-Powered 4-in-1 Inspection System

² Proprietary AI Deep Learning algorithms continuously improves defect recognition based on new samples

² High-Resolution RGB Camera System

² High-Intensity LED Illumination System

 Optional InGaAs-SWIR Camera System

 Optional UV Fluorescence Camera System

² Market-leading precise detection to a wide range of defects of dehydrated vegetables by color, size, shape and texture features:

Ø Color Defects: Browning, discoloration, charred spots, mold, skin residues

Ø Shape Defects: Broken fragments, clumped pieces, deformed shapes, oversized, undersized

Ø Drying Defects: Uneven dehydration, sugar crystallization, rehydration stains

Ø Foreign Material Contamination: plastic/rubber fragments

Ø Biological Contamination: Microbial colonies



l High-Performance Ejector System

² Engineered for enhanced durability, optimized speed and air consumption

² Accurate rejection and reliable performance at high-capacity sorting

² Significant reduction in false rejection rate and total cost of ownership



l 15-inch Industrial Touchscreen Control Panel

² Intuitive HMI with multilingual support

² Instant switching between product profiles

² Comprehensive remote support system

Ø Remote Access and Monitoring

Ø Real-time Performance Dashboard

Ø Live Expert Diagnosis

Ø Interactive Troubleshooting


Specifications

Model
Chute
Air Nozzle

Air Pressure

(mpa)

Air Consumption

(L/min)

Power

(kw)

Voltage

(v/hz)

Dimension

(L*W*H)(mm)

Weight*

(kg)

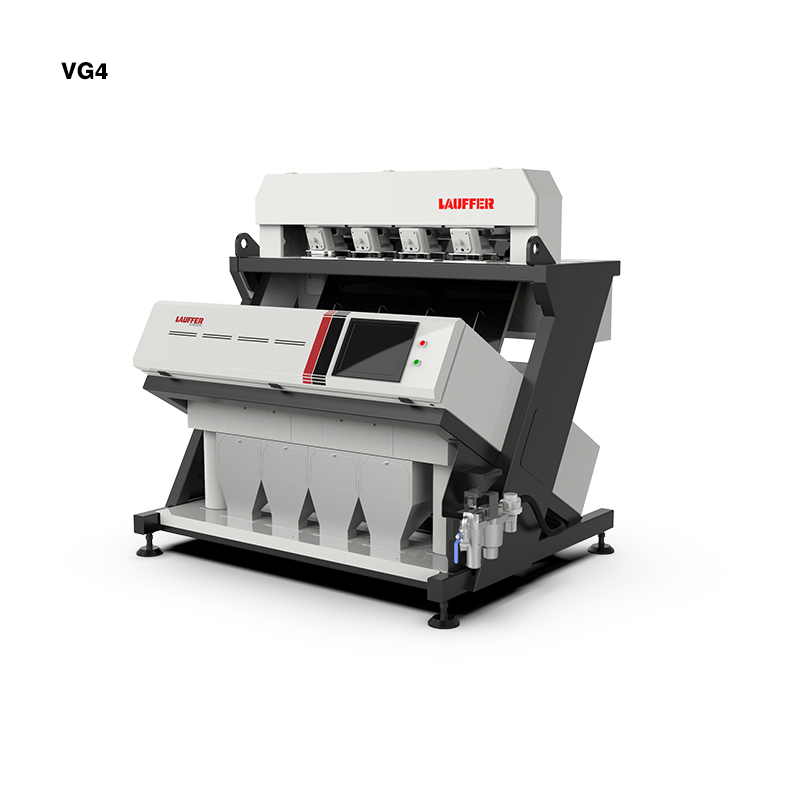

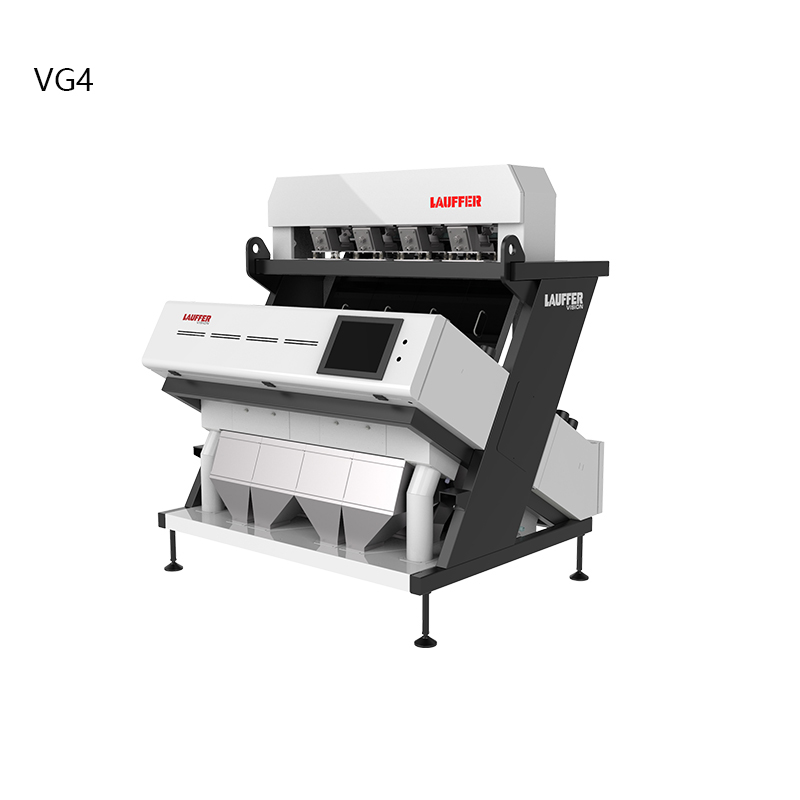

VGV4
4 256 0.6~0.8
<2000 2.9 220(50)
2170×2199×2076
1150

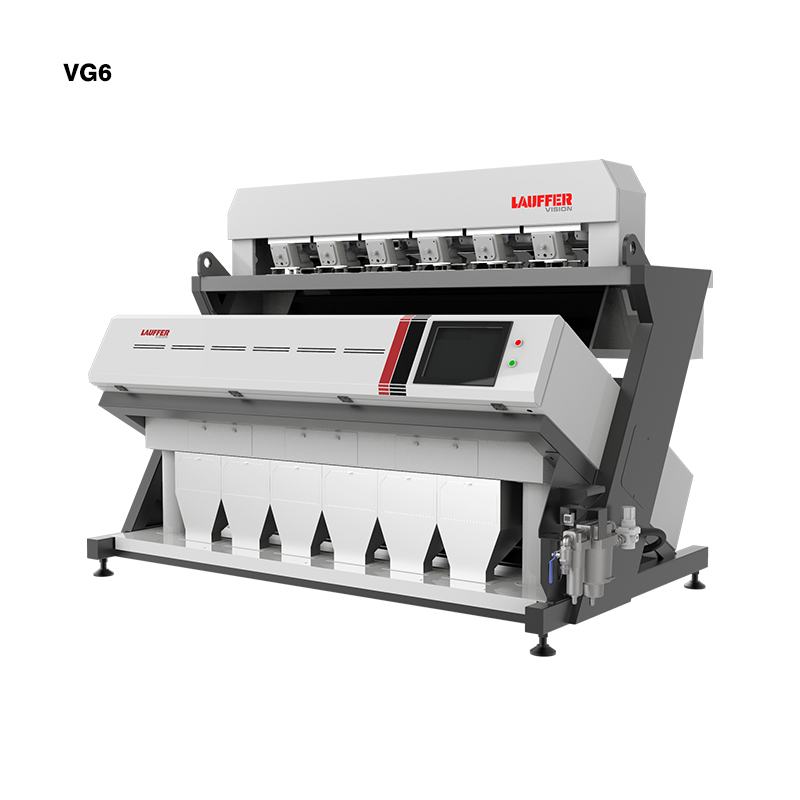

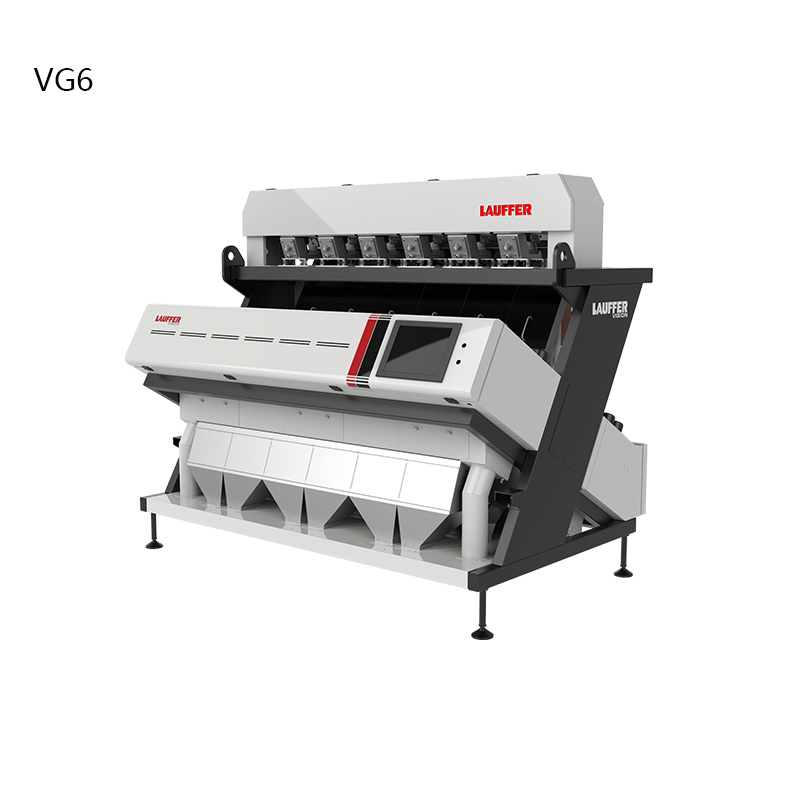

VGV6
6 384 0.6~0.8
<3000
4.4 220(50)
2800×2199×2076
1480

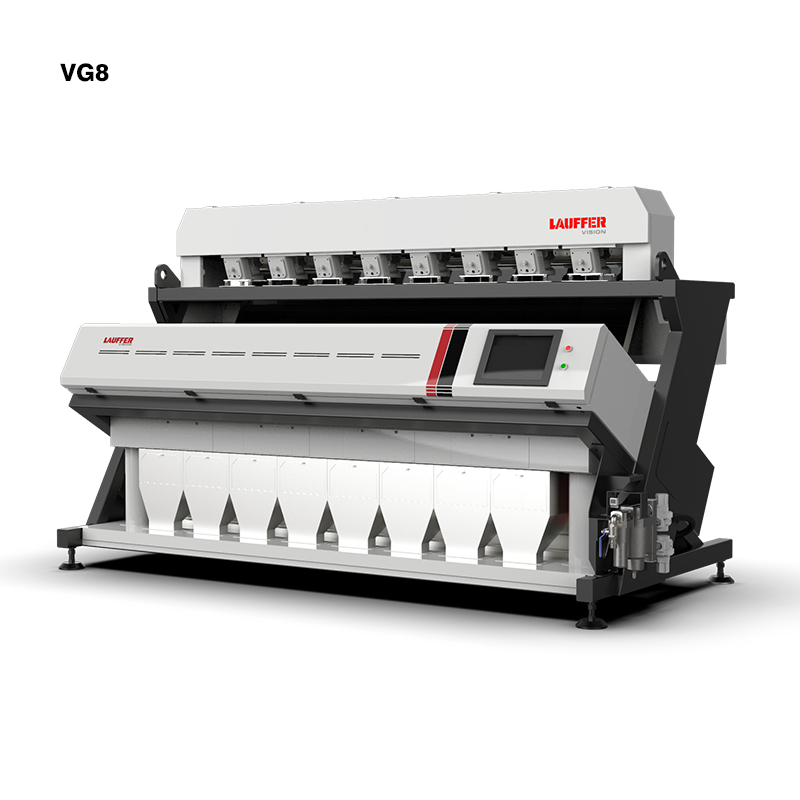

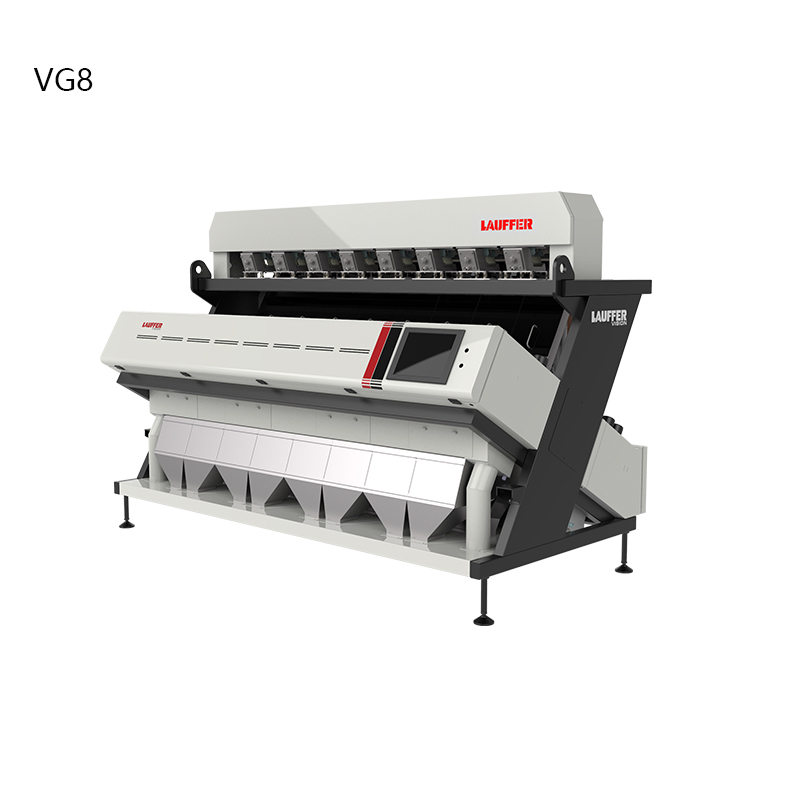

VGV8  8 512 0.6~0.8
<4000
5.9 220(50)
3430×2199×2076
1840

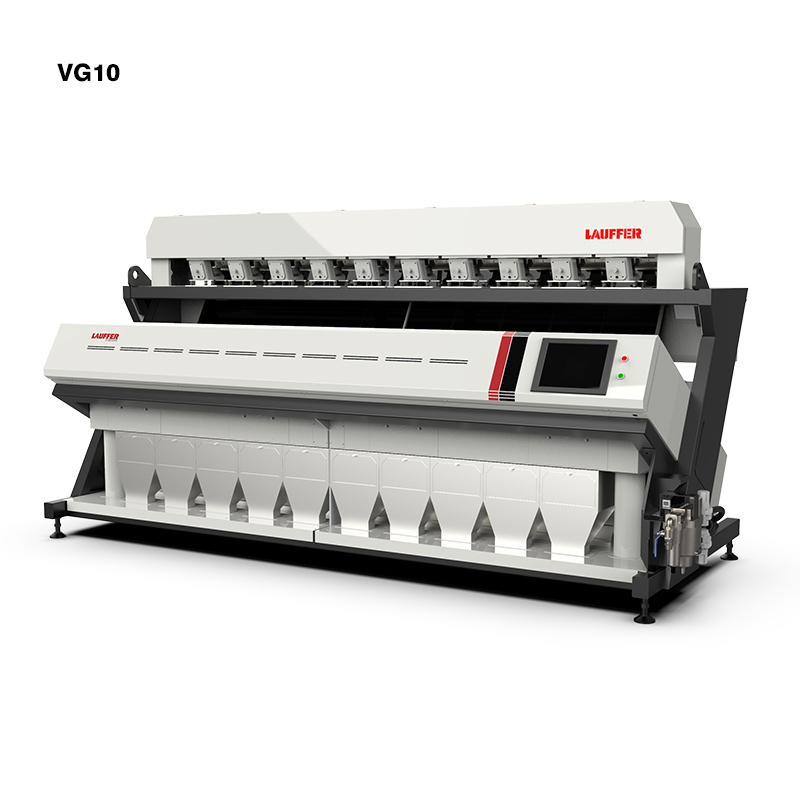

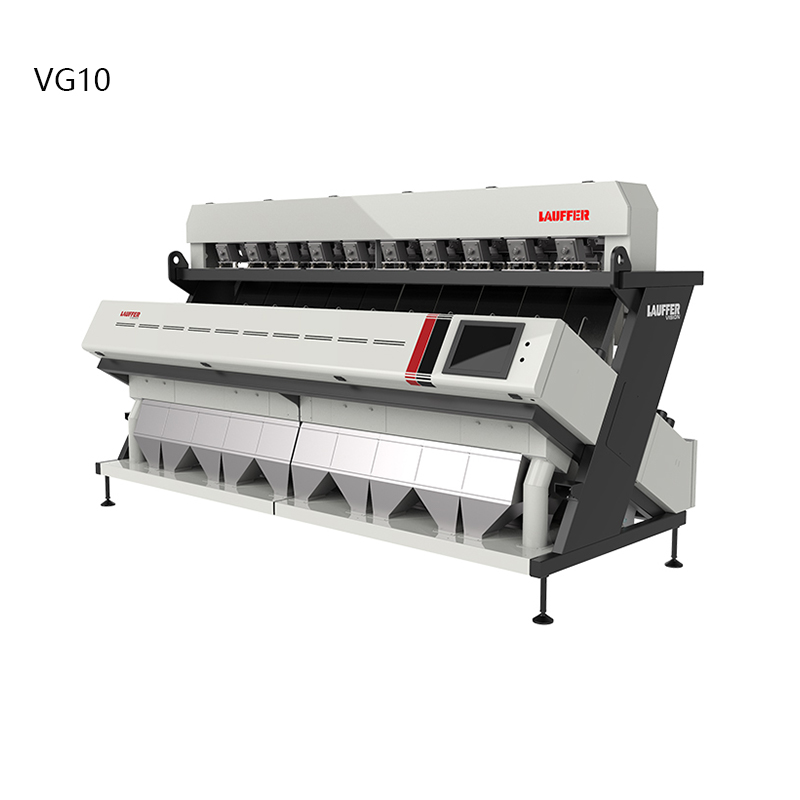

VGV10

10 640 0.6~0.8
<5000
7.3 220(50)
4070×2199×2076
2180

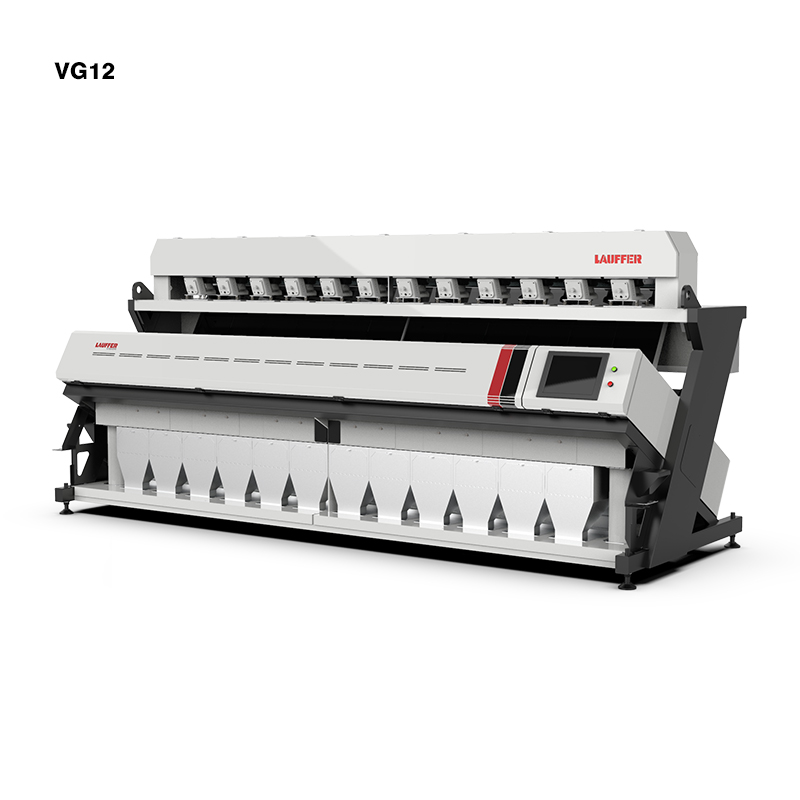

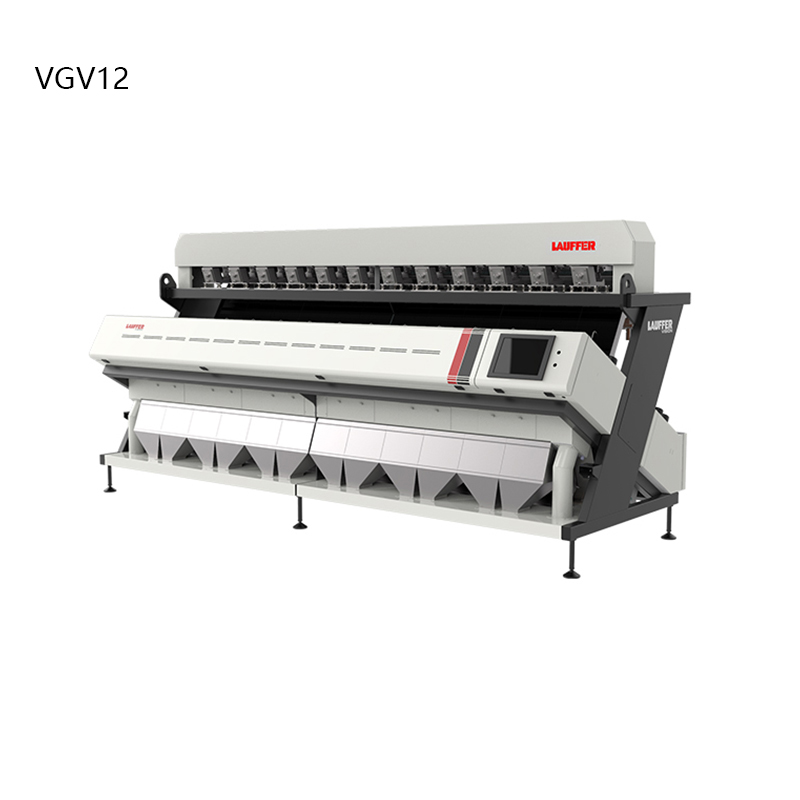

VGV12 12 768 0.6~0.8
<6000
8.8 220(50)
4835×2199×2076
2550
