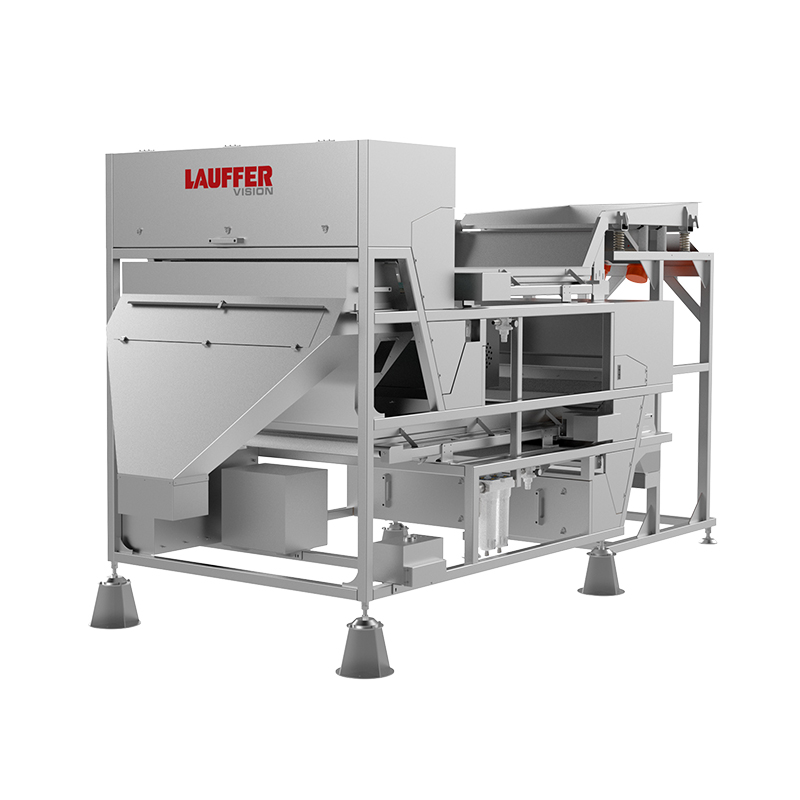

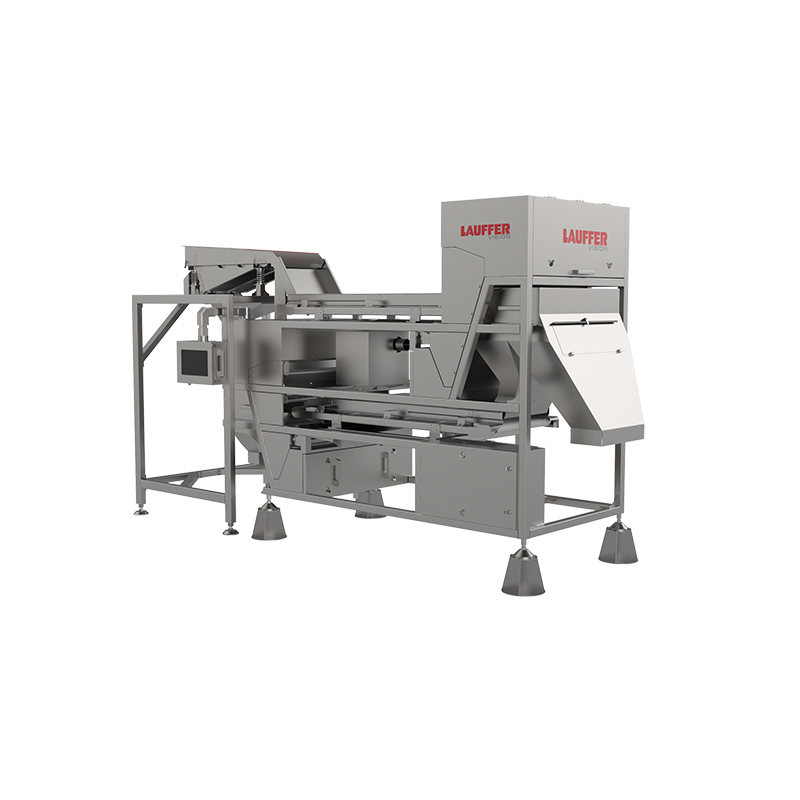

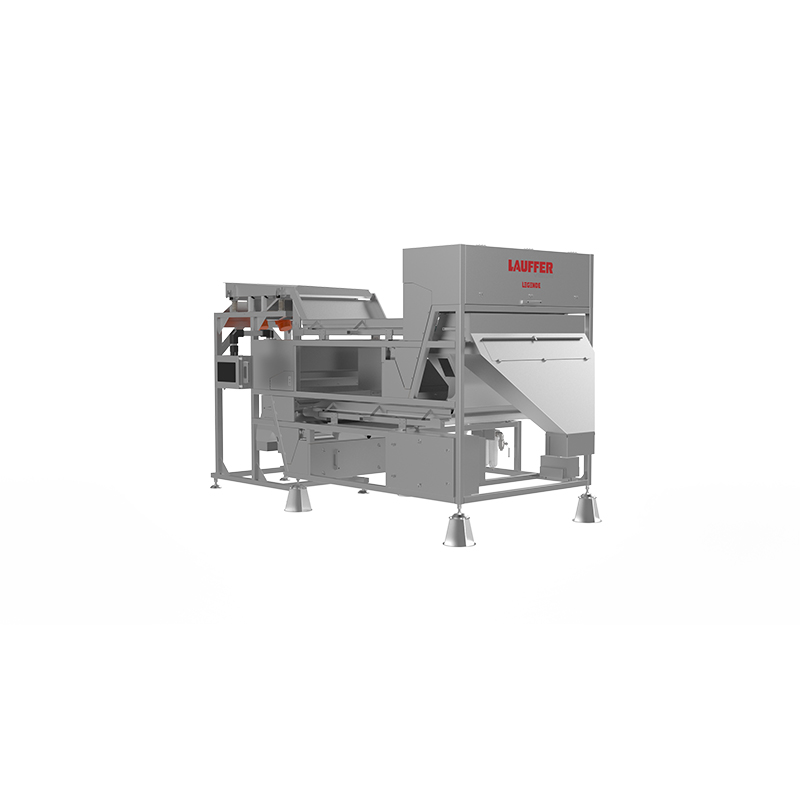

Legende non-ferrous metal color sorter

Vertical/Horizontal:
Belt Width:
Air Nozzle:
  • Description
  • Specification

        Color detection for purifying aluminum, cooper, brass, zinc and stainless steel.


        Applications

        Features

        Advanced Full Color Camera Inspection System

        Lauffer’s cutting-edge full color camera inspection system for efficient detection according to the differences

        in color, size, shape, thickness, texture, etc.

        Superior AI Deep Learning Algorithm

        Innovative simulation of manual picking operation by teaching and training the intelligent color sorter all the

        standards and features of identification and sorting.

        Enhanced LED Lighting System

        Higher intensity LED illumination system for better detection of the characteristics and features on the surface

        of the targeting metal fraction.

        Powerful and Reliable Ejection System

        Long-life and high-speed ejectors designed and produced in-house, ensuring the performance, the serviceability

        and the sustainability.

        Flexible capacity and resorting configurations

        Available in two belt widths for both single-belt mode and double-belt mode, with more choices regarding

        throughput and resorting.

Model

Belt Width

(mm)

Air Nozzle

Air Pressure

(mpa)

Air Consumption

(L/min)

Voltage

(v/hz)

Power

(kw)

Dimension

(mm)

Unpacked Weight

(kg)

HWF2 800 160 0.6~0.8 <2400 220/50 3.5 4075×1643×2360
990
HWF3
1200 240 0.6~0.8
<3600
220/50
3.8 4430×2080×2360
1430
HDF2
600 256 0.6~0.8
<2050
220/50
6.6 4692×1882×2360
1680
HDF4
1200 512 0.6~0.8
<4100
220/50
8.3 4825×2210×2685
2165
