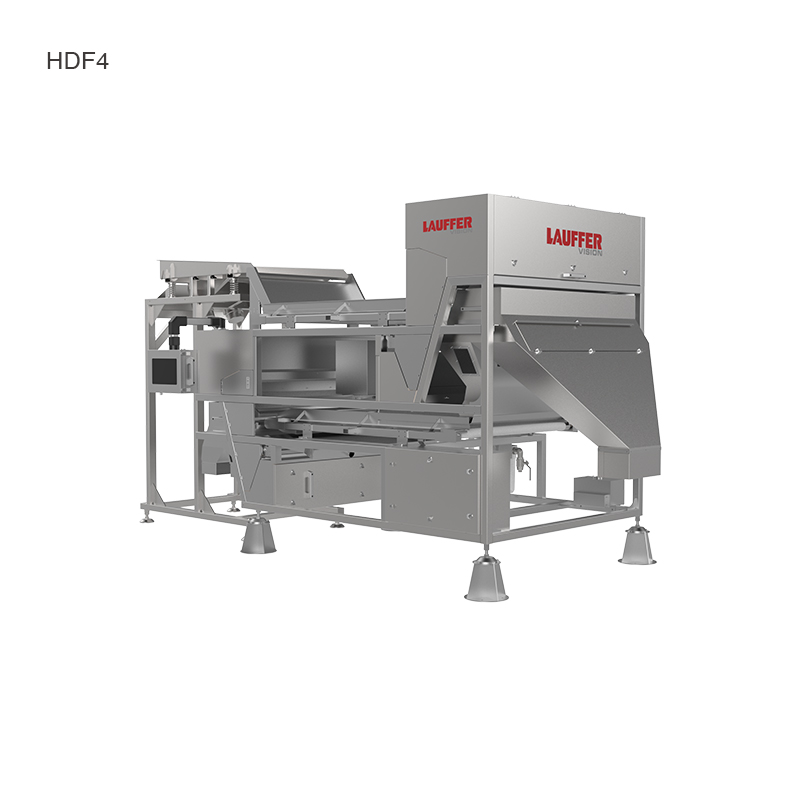

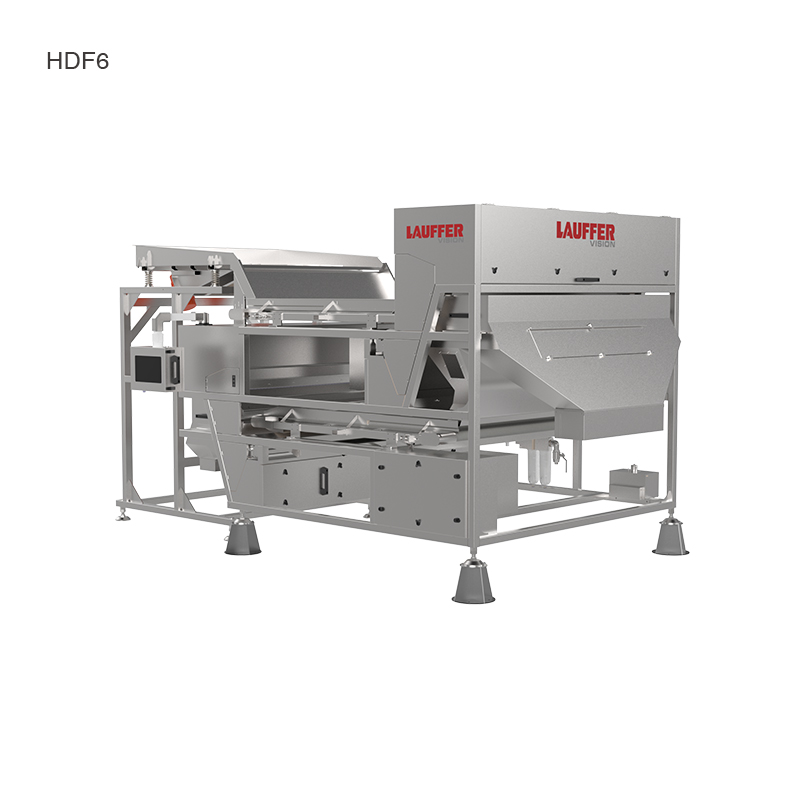

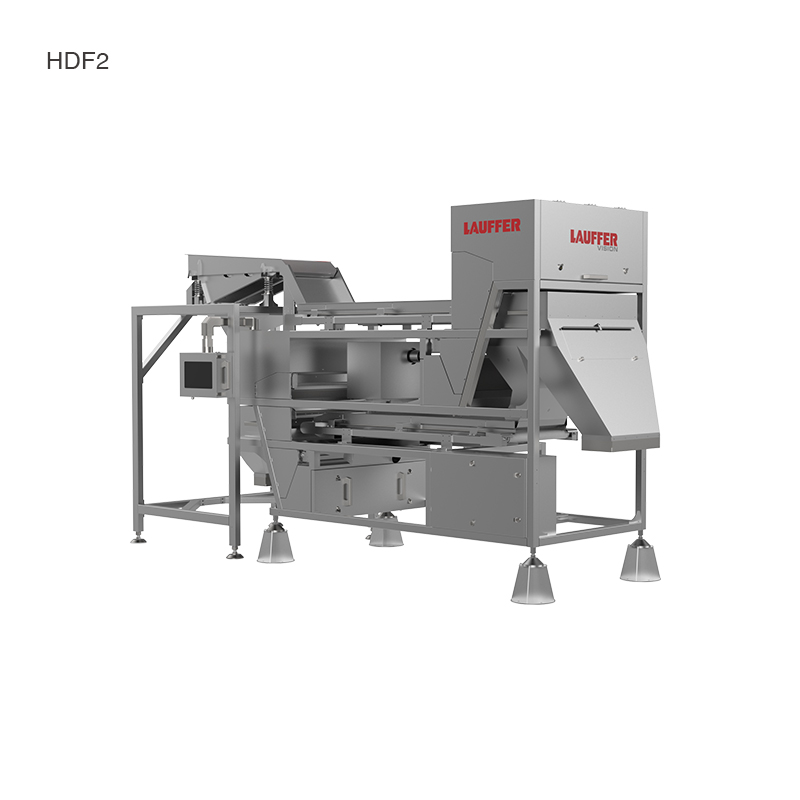

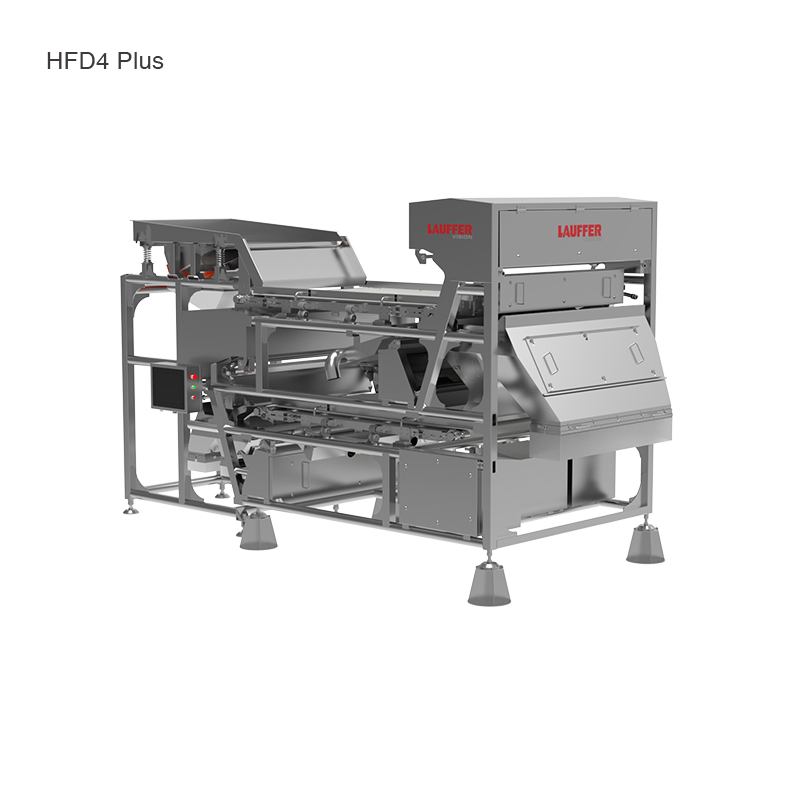

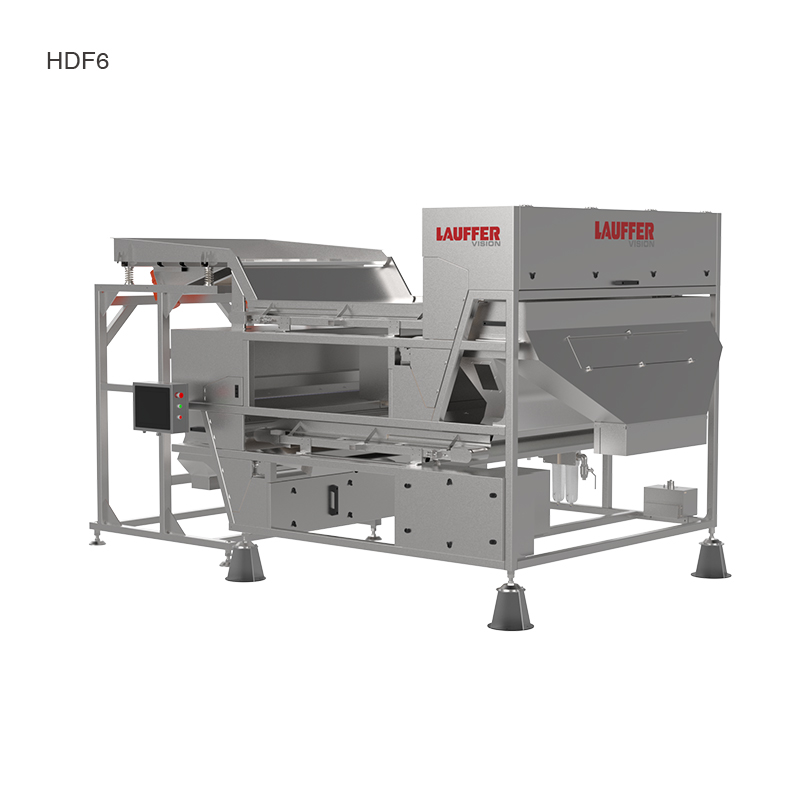

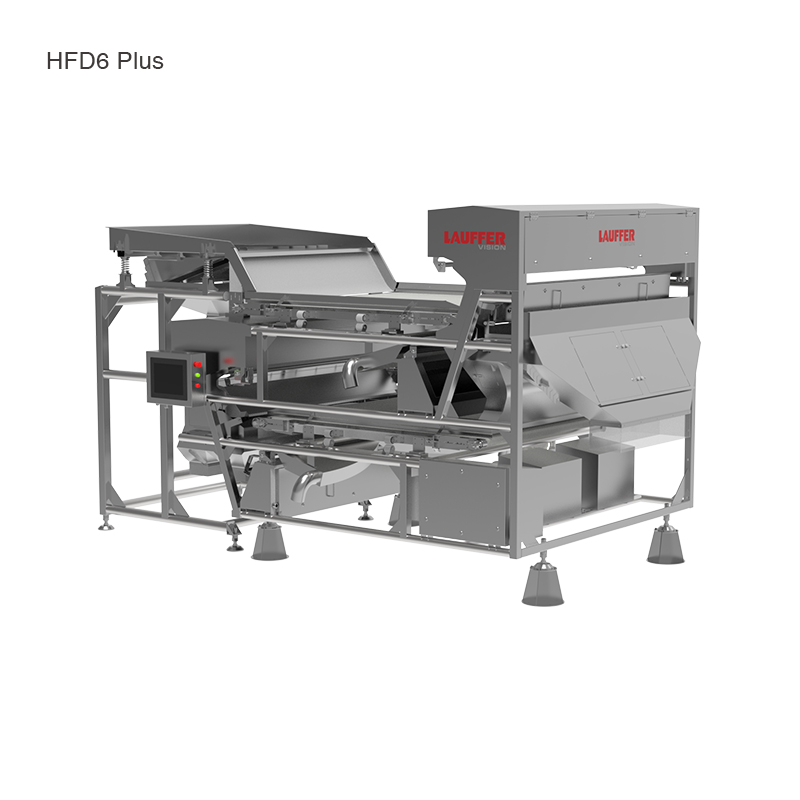

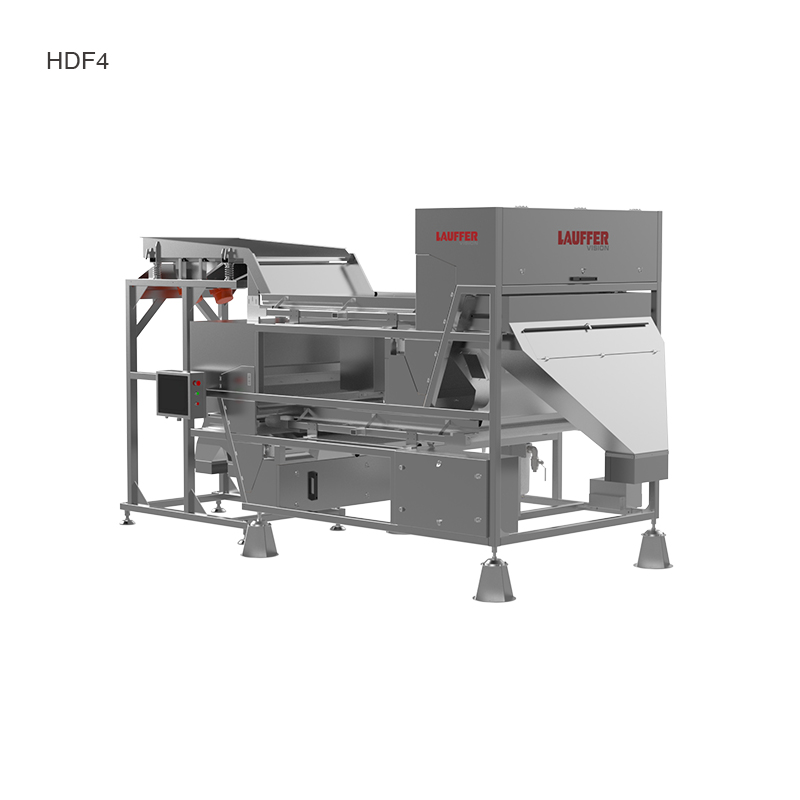

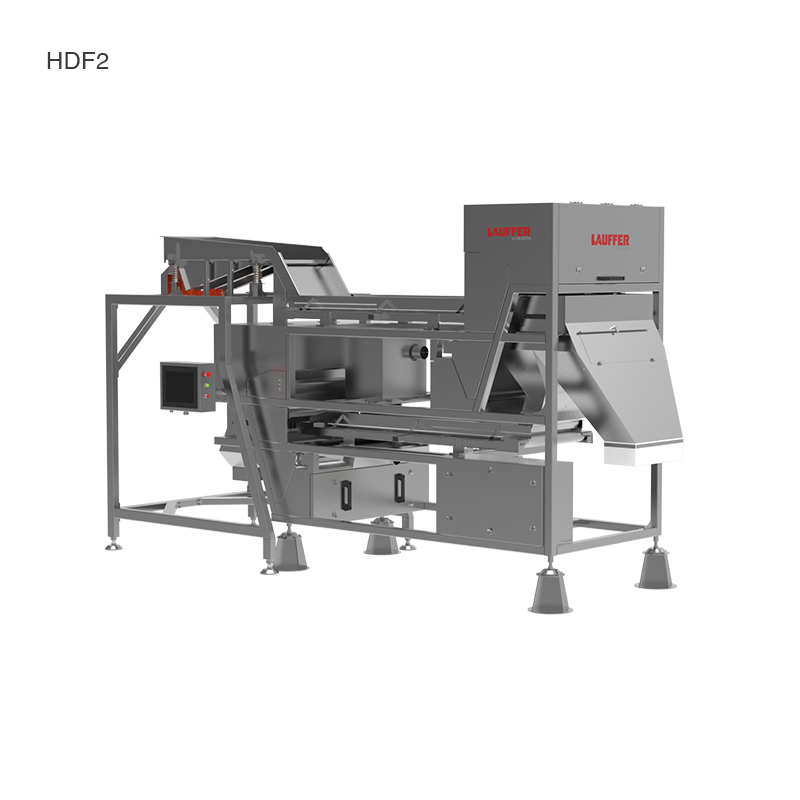

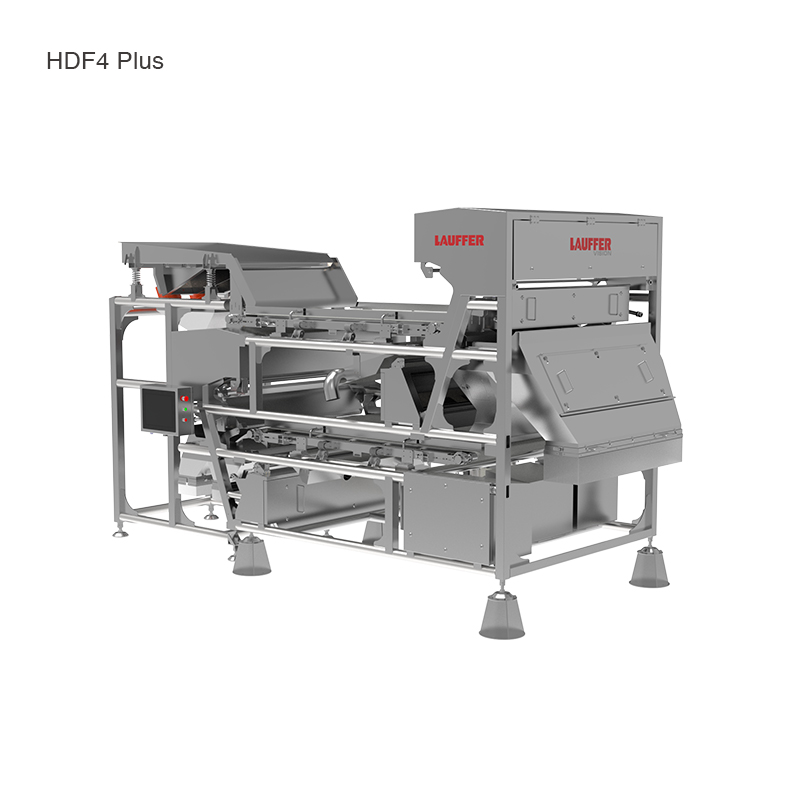

Legende HDF Plus Series AI Optical Sorting System

Legende HDF Plus Series AI Optical Sorting System is a premium solution based on the flexible setup of UHR-RGB (Ultra-High-Resolution RGB) cameras and optional MSI (Multi-Spectral Imaging) to enable automated quality sorting and foreign material removal for IQF vegetables and fruit by AI powered sorting and defect detection.

Applications

Technical Features

● Tailored Optical Sorting System for IQF Vegetables and Fruit

✦ Compact dual-belt sorting system with quick-install and simultaneous re-sorting design

✩ Primary sorting occurs on higher-level belt and aggressively removes all potential defects (may include false rejects)

✩ Secondary sorting on lower-level belt receives rejects from primary sorting for false-reject recovery

✦ Multiple high-capacity waterproof vibratory feeding systems are available, customizable for different IQF vegetables and fruit to ensure single-layer distribution and minimize overlapping

✦ Reinforced food-grade stainless steel structure, food-grade stainless steel drive system, and sealed scanning and control boxes withstand frequent high-pressure washing and sterilization

✦ Design of quick belt change and round tube frame minimizes sanitation dead zones and ensures convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

✦ Field-proven Humidity Control System integrated maintains consistent performance and minimizes downtime

✦ Modular design of belt width from 1200 to 1800mm (1200/1800) provides processors more flexibility

● AI Powered 4-In-1 Defect Inspection System

✦ Proprietary AI Deep Learning algorithms continuously improve defect recognition based on new samples

✦ Flexible setup of UHR-RGB cameras & Optional MSI reveals subtle defects invisible to human eyes

✦ High-Intensity LED Illumination System ensures clear and stable imaging

✦ Market-leading precise detection to a wide range of defects in IQF vegetables and fruit by color, size, shape and texture features:

✩ Color Defects: Discoloration, mold, rot

✩ Shape Defects: Misshapen, deformed, oversized, undersized, broken

✩ Surface Damage: Bruises, cuts, abrasions, crushing, scars, cracks, shriveling

✩ Biological Contaminants: Insect damage, leaf/stem residues, other vegetable debris, soil clumps

✩ Foreign Materials: Stones, plastic/rubber fragments, wood chips

● High-Performance Air Ejector System

✦ Engineered for enhanced durability, optimized speed and air consumption

✦ Accurate rejection and reliable performance at high-capacity sorting

✦ Significant reduction in false rejection rate and total cost of ownership

● 15-Inch Industrial Touchscreen Control Panel

✦ Intuitive HMI with multilingual support

✦ Instant switching between product profiles

✦ Comprehensive remote support system

✩ Remote Access and Monitoring

✩ Real-time Performance Dashboard

✩ Live Expert Diagnosis

✩ Interactive Troubleshooting

Specifications
