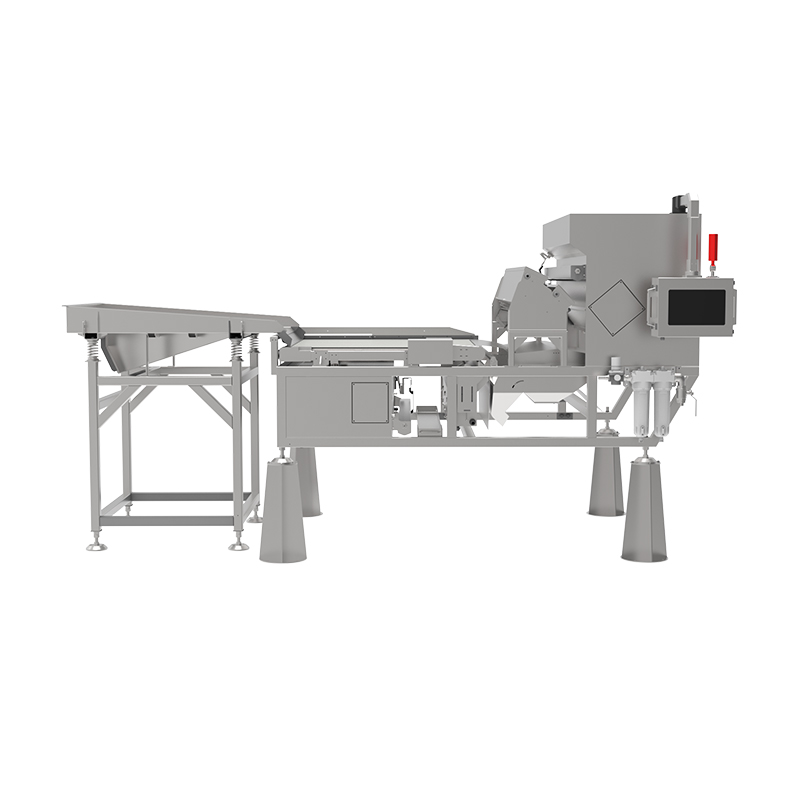

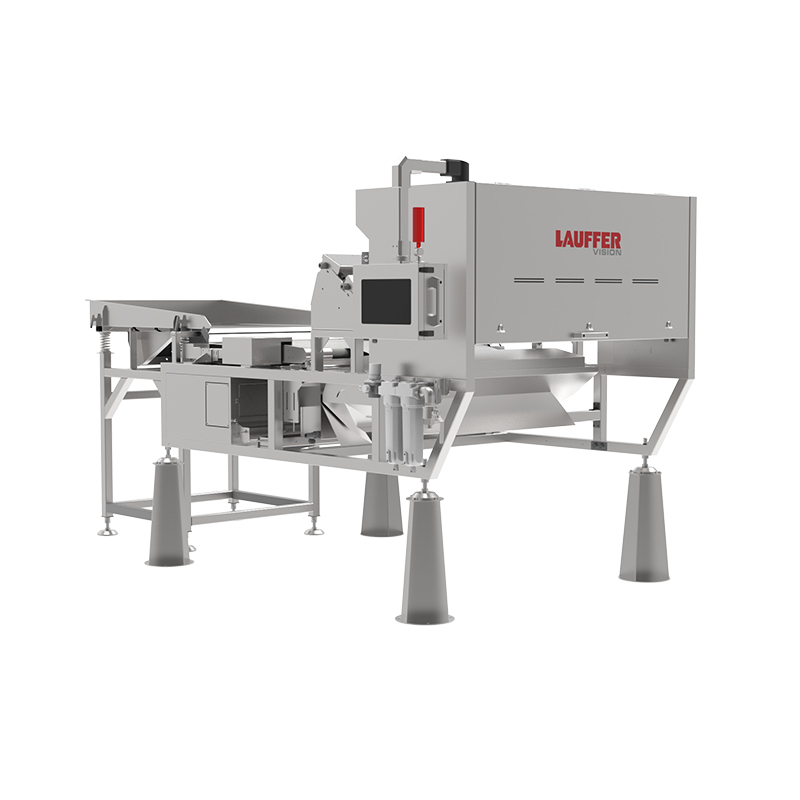

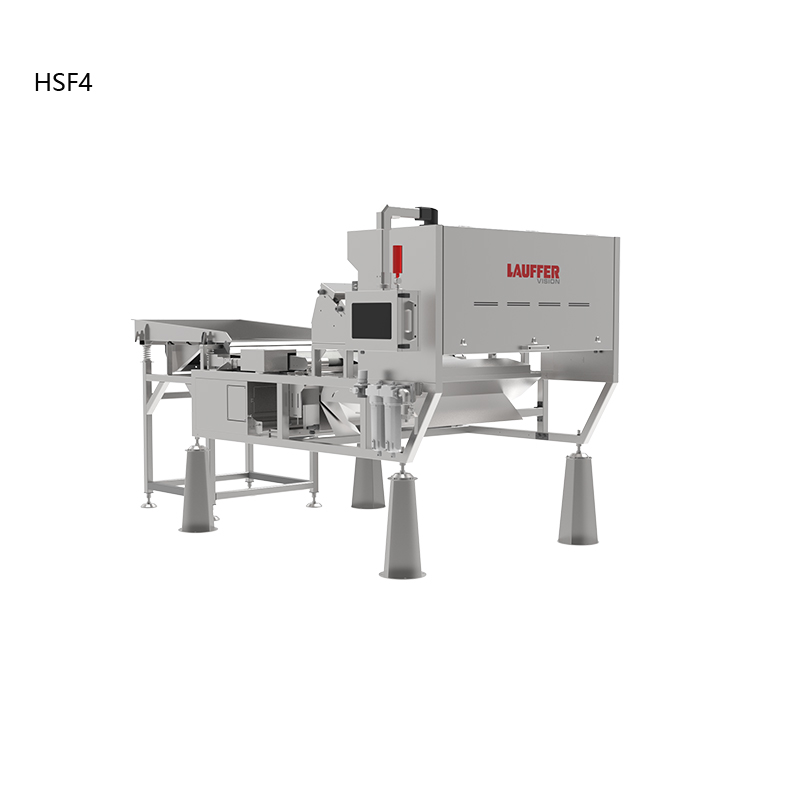

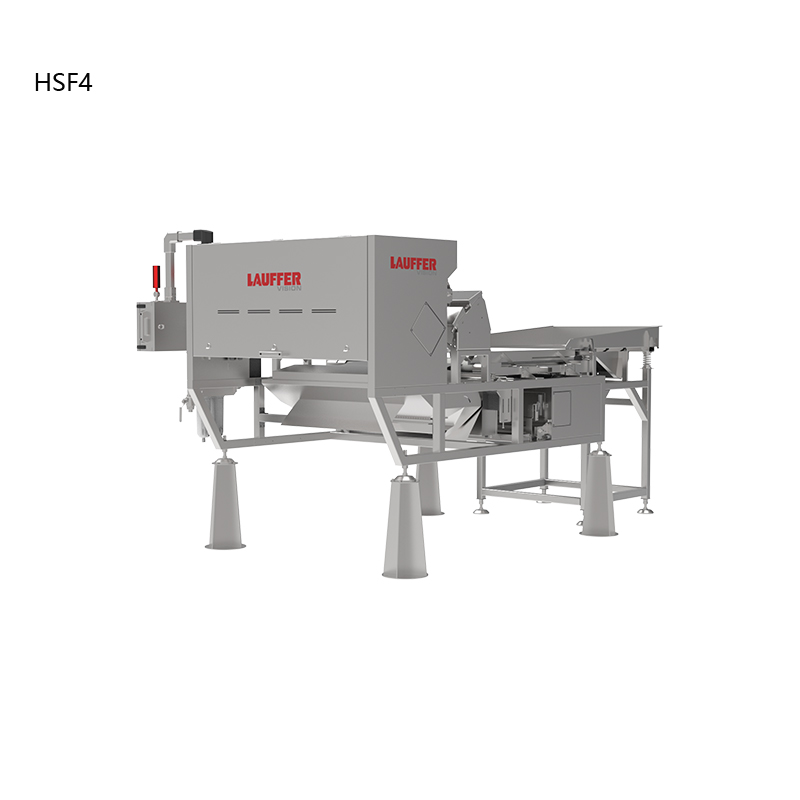

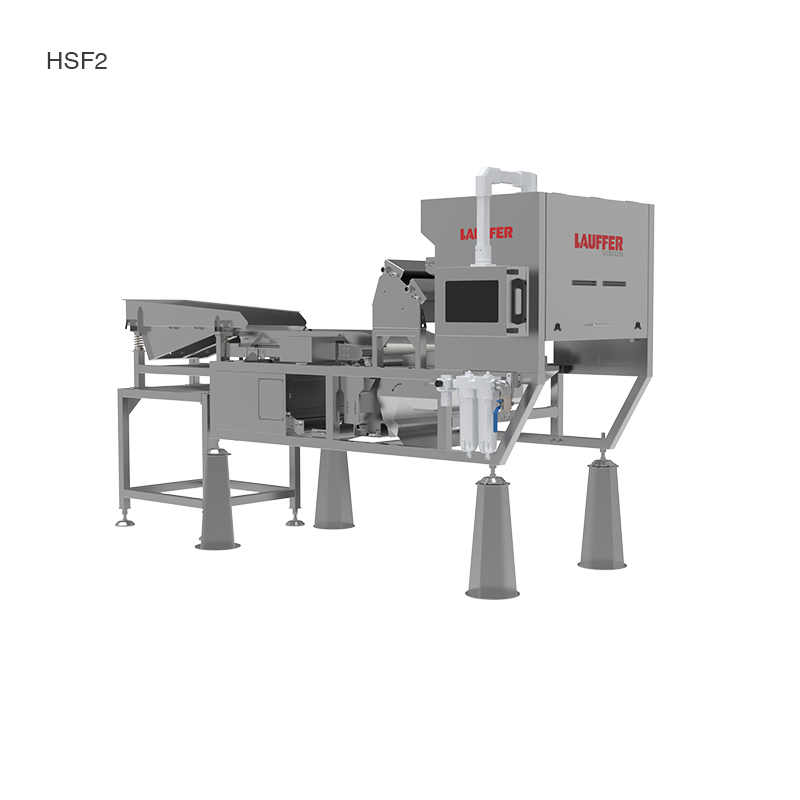

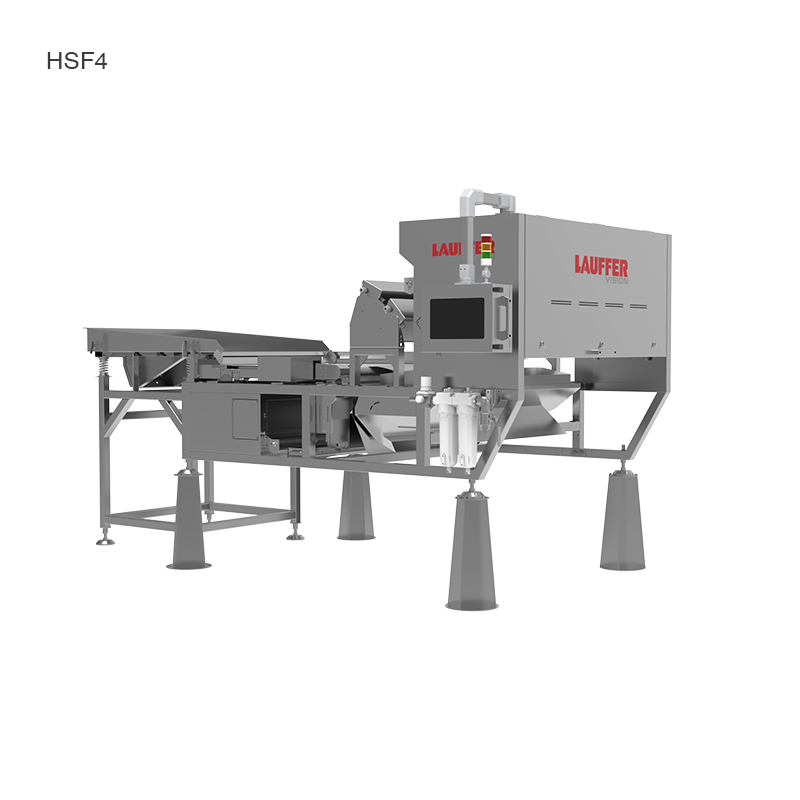

Legende HSF Series AI HSI Sorting System

Unique internal quality inspection of blueberries by AI powered HSI (Hyper-Spectral Imaging) to non-destructively evaluate both surface and internal quality, surpassing traditional RGB camera limitations.

Applications

Technical Features

● Tailored HSI Sorting System for Premium Blueberry Processors

✦ Compact single-belt sorting system with quick-install design

✦ High-capacity vibratory feeding system evenly distributes blueberries into a single layer to minimize overlapping

✦ Engineered design for gentle handling of delicate blueberries

✦ Food-grade stainless steel structure and quick belt change design ensure convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

✦ Sealed scanning and control boxes provides machine with high-level dust protection

✦ Field-proven Dust Control System integrated maintains consistent performance and minimizes downtime

✦ Modular design of belt width from 600 to 1200mm (600/1200) provides processors more flexibility

● Superior AI Powered 5-In-1 Hyper-Spectral Defect Inspection System

✦ Proprietary AI Deep Learning algorithms continuously improve defect recognition based on new samples

✦ Hyper-Spectral Imaging System

✦ High-Resolution RGB Camera System

✦ High-Stability Air-Cooled Halogen Lighting System

✦ High-Intensity LED Illumination System

✦ Unprecedented precision detection to a wide range of defects in blueberries by color, size, shape and texture features:

✩ Soft berry detection: Internal water/sugar analysis

✩ Color grading: Separation by ripeness (dark/light blue/unripe) for uniform appearance

✩ Size grading: Sorting by diameter

✩ Defect detection: Mold, shriveled, cracked, or scarred berries

✩ Foreign material removal: Stems, insects, plastic

● High-Performance Air Ejector System

✦ Engineered for enhanced durability, optimized speed and air consumption

✦ Accurate rejection and reliable performance at high-capacity sorting

✦ Significant reduction in false rejection rate and total cost of ownership

● 15-Inch Industrial Touchscreen Control Panel

✦ Intuitive HMI with multilingual support

✦ Instant switching between product profiles

✦ Comprehensive remote support system

✩ Remote Access and Monitoring

✩ Real-time Performance Dashboard

✩ Live Expert Diagnosis

✩ Interactive Troubleshooting

Specifications
