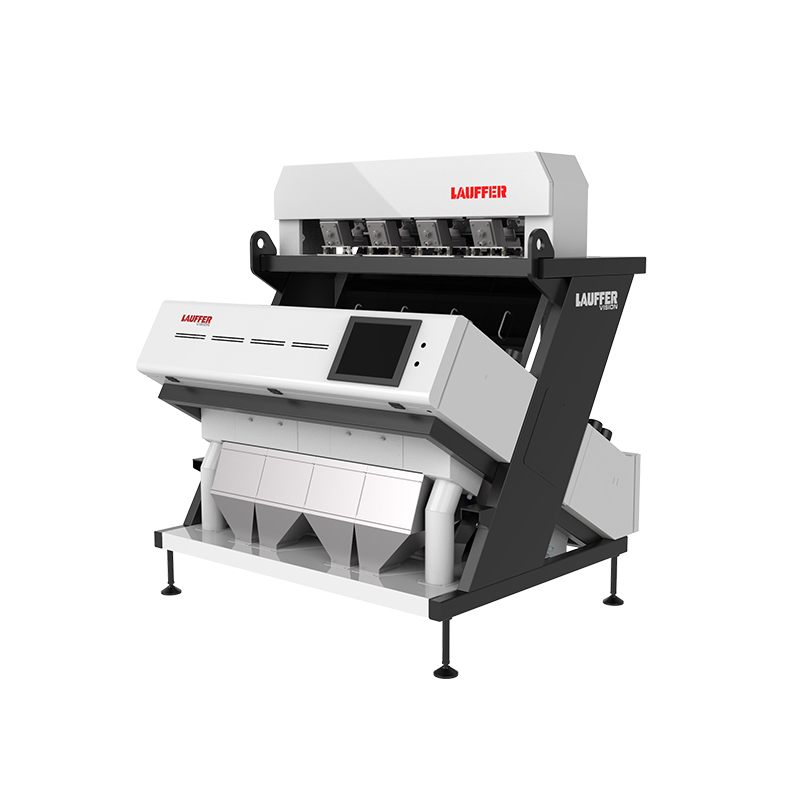

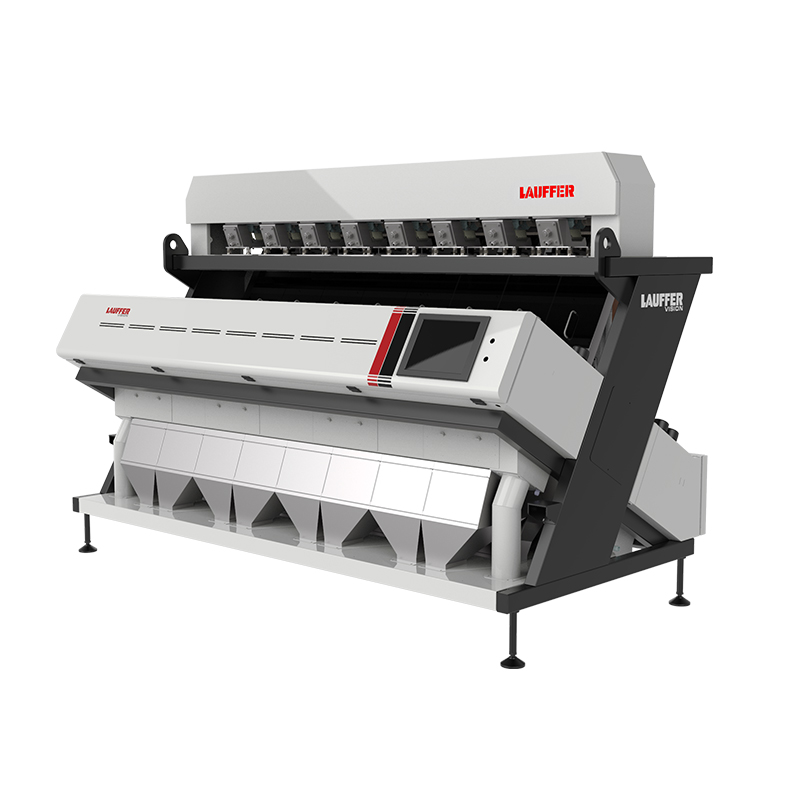

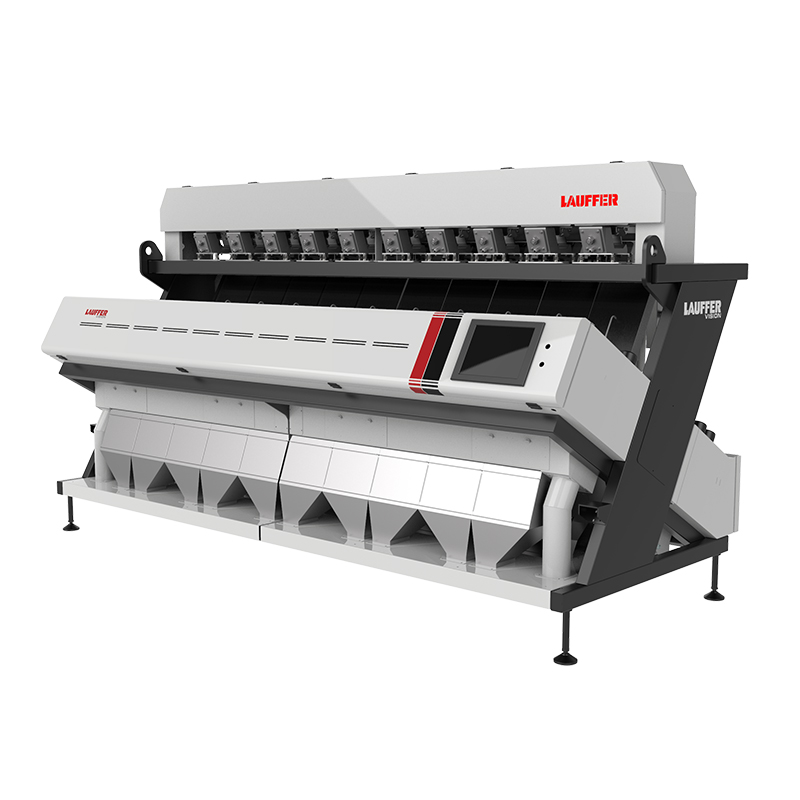

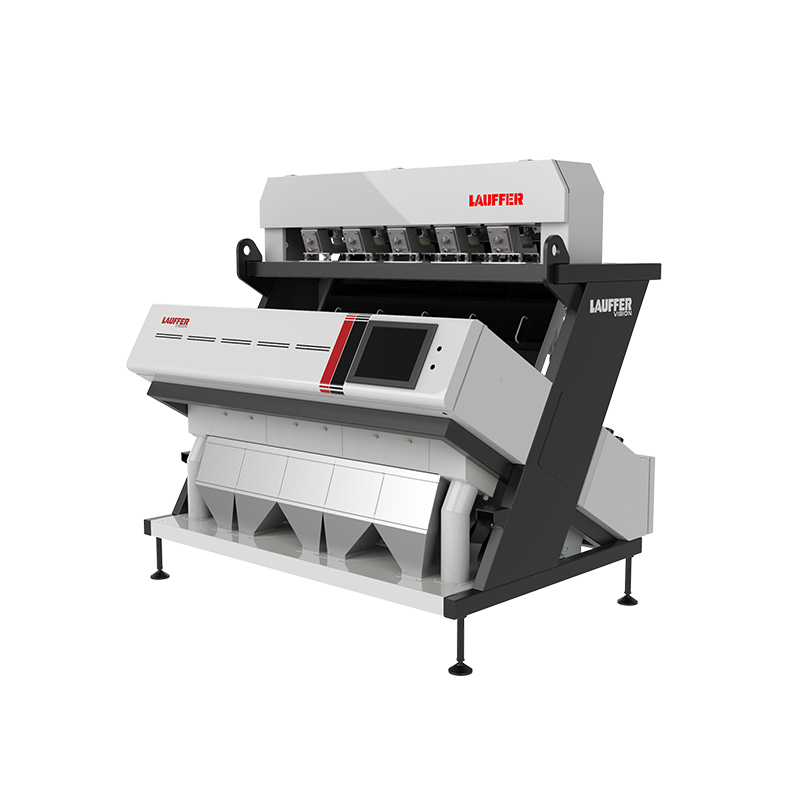

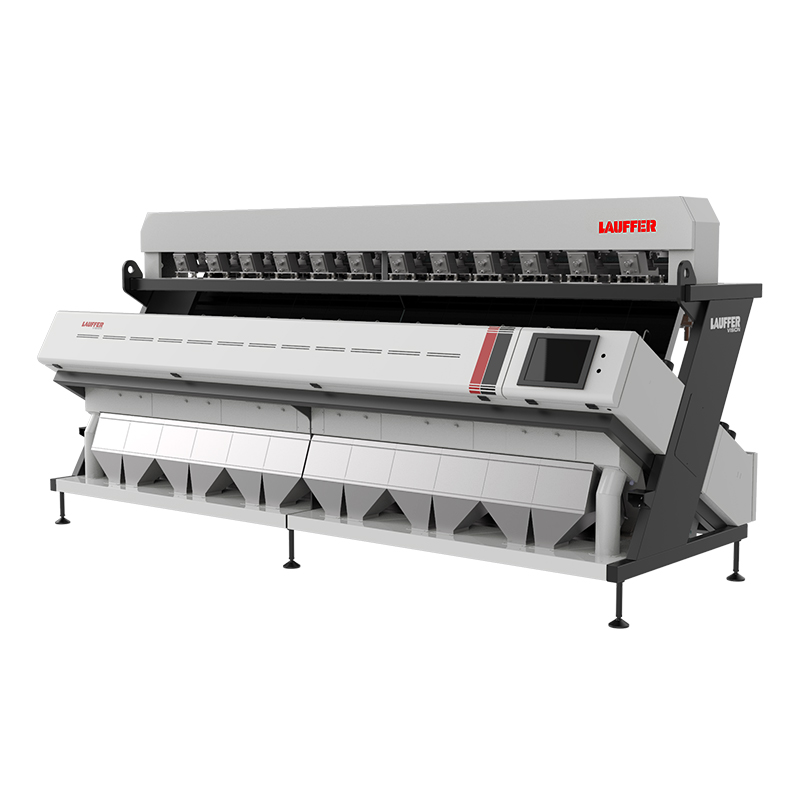

Göttin VG pulses optical sorter

Application：

Pulses sorting

Vertical/Horizontal：

Vertical

Chute：

Air Nozzles：

A 4-in-1 detection of pulses by color, size & shape

Optional InGaAs technology and Al algorithms.

We are experienced in pulses sorting. By thousands of sorting tests for different characteristics regarding color, size, shape and texture of vanious pulses and beans, Lauffer's taken the pulses sorting to a new level with the advanced Al Deep Learning algorithms.

Applications

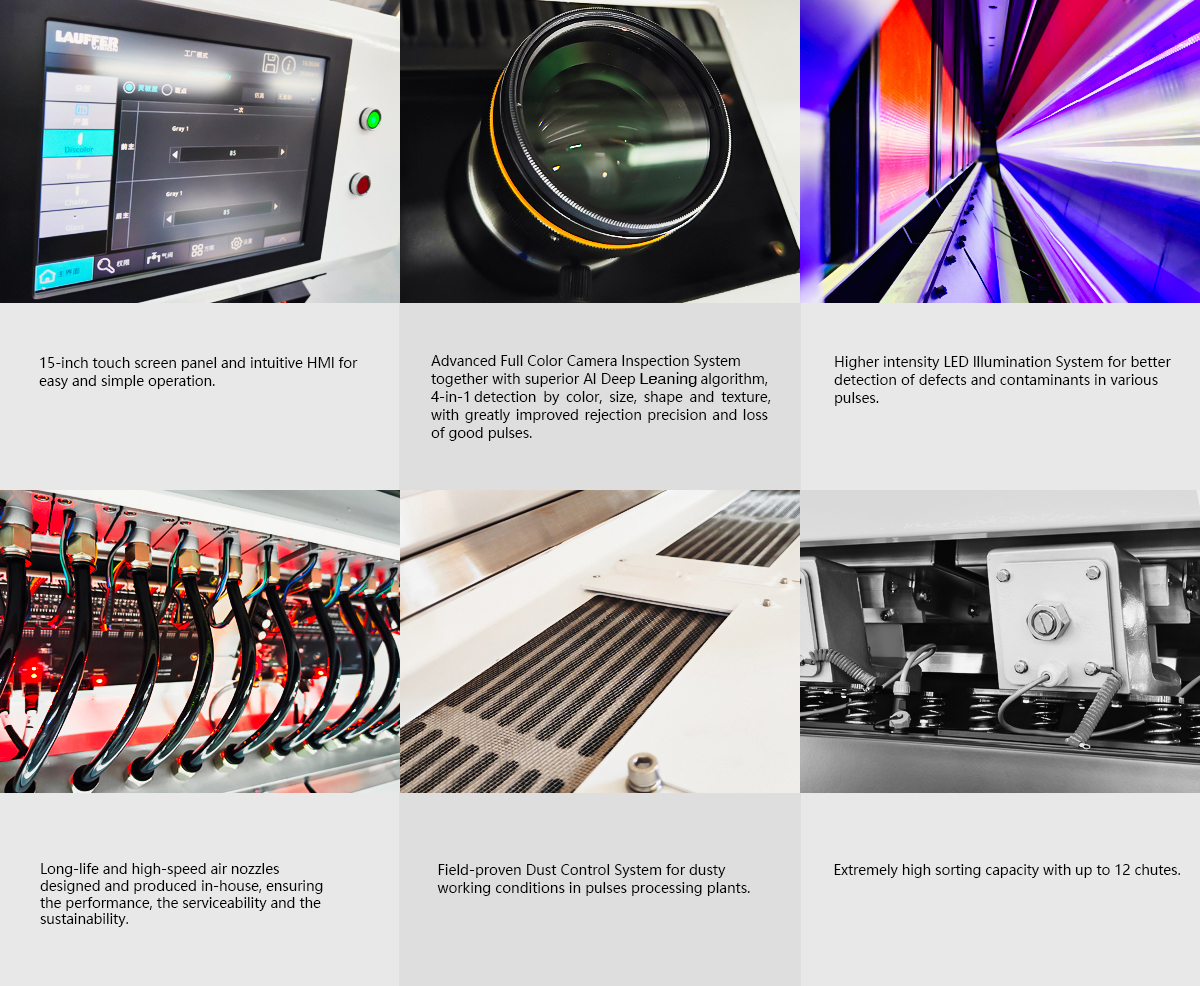

Features

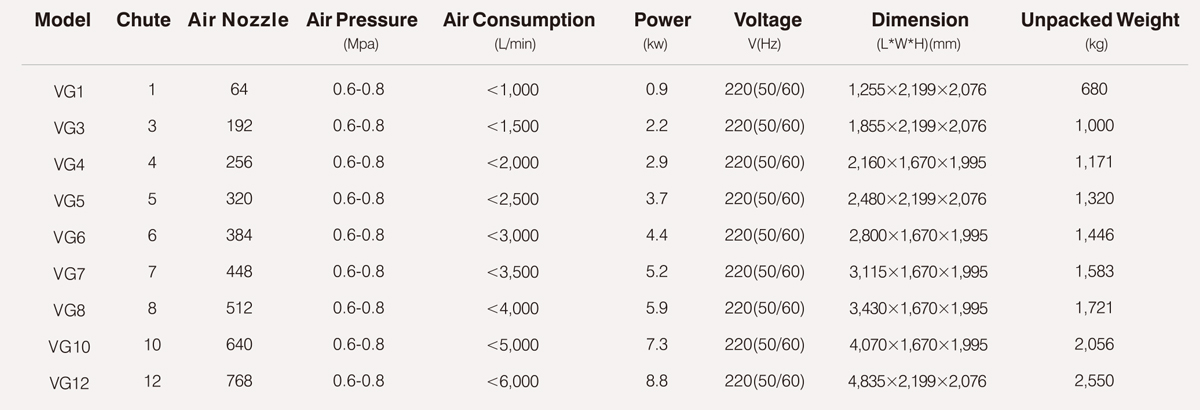

Specifications

Model	Chute	Air Nozzles	Air Pressure (mpa)	Air Consumption (L/min)	Power (kW)	Voltage (V/Hz)	Dimension (LWH)(mm)	Weight* (kg)
VG1	1	64	0.6~0.8	<1000	0.9	220(50)	1255×2199×2076	680
VG3	3	192	0.6~0.8	<1500	2.2	220(50)	1855×2199×2076	1000

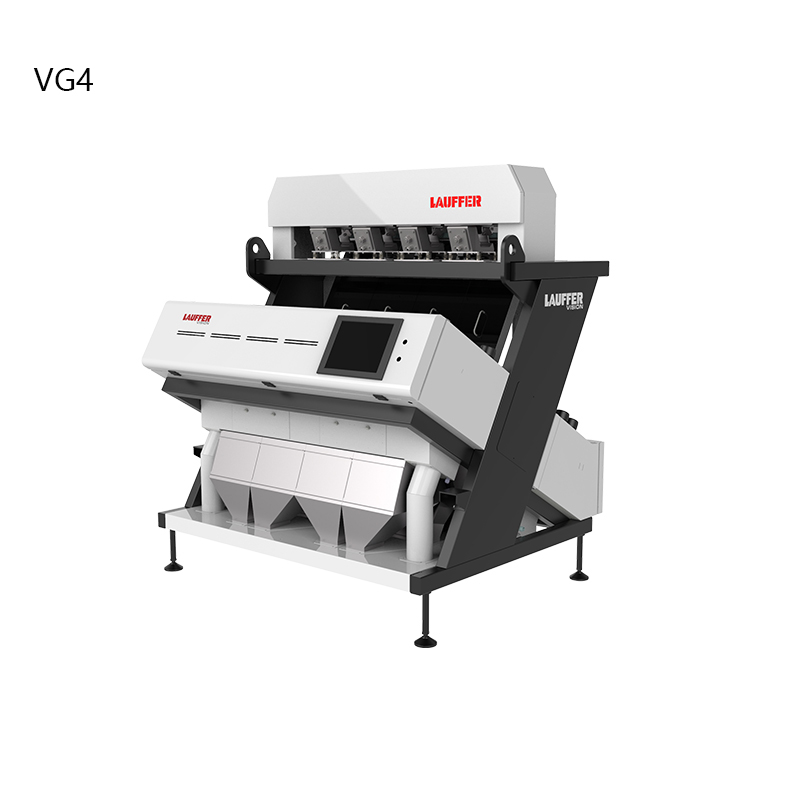

VG4	4	256	0.6~0.8	<2000	2.9	220(50)	2170×2199×2076	1150
VG5	5	320	0.6~0.8	<2500	3.7	220(50)	2480×2199×2076	1320

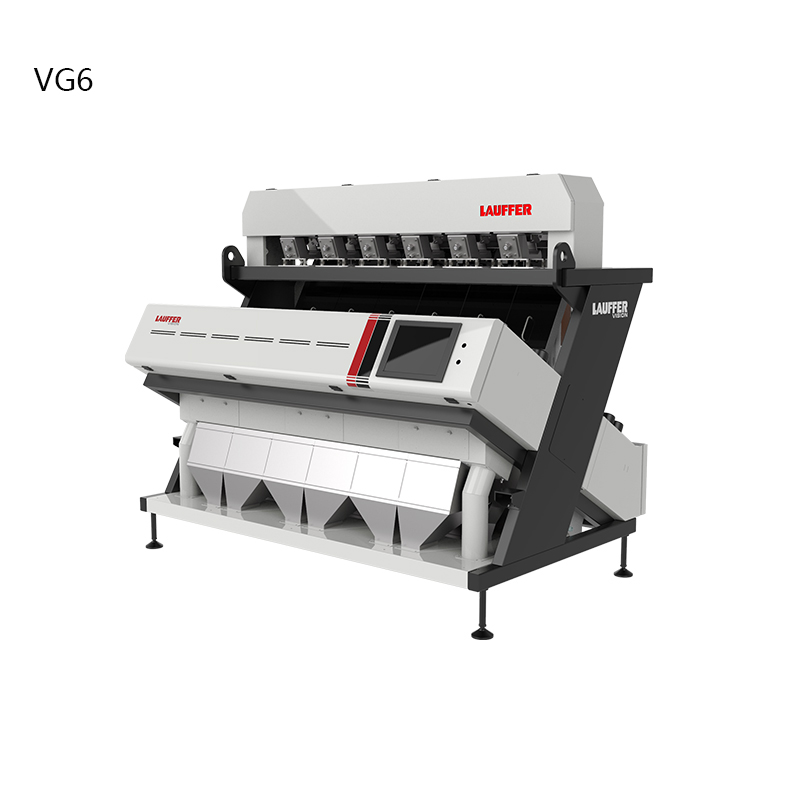

VG6	6	384	0.6~0.8	<3000	4.4	220(50)	2800×2199×2076	1480
VG7	7	448	0.6~0.8	<3500	5.2	220(50)	3115×2199×2076	1640

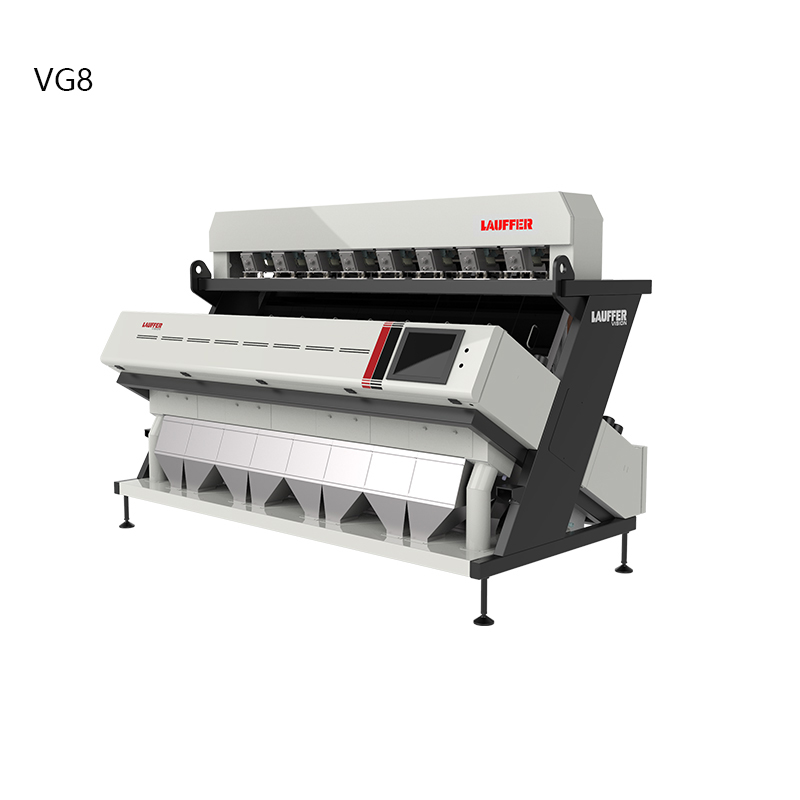

VG8	8	512	0.6~0.8	<4000	5.9	220(50)	3430×2199×2076	1840

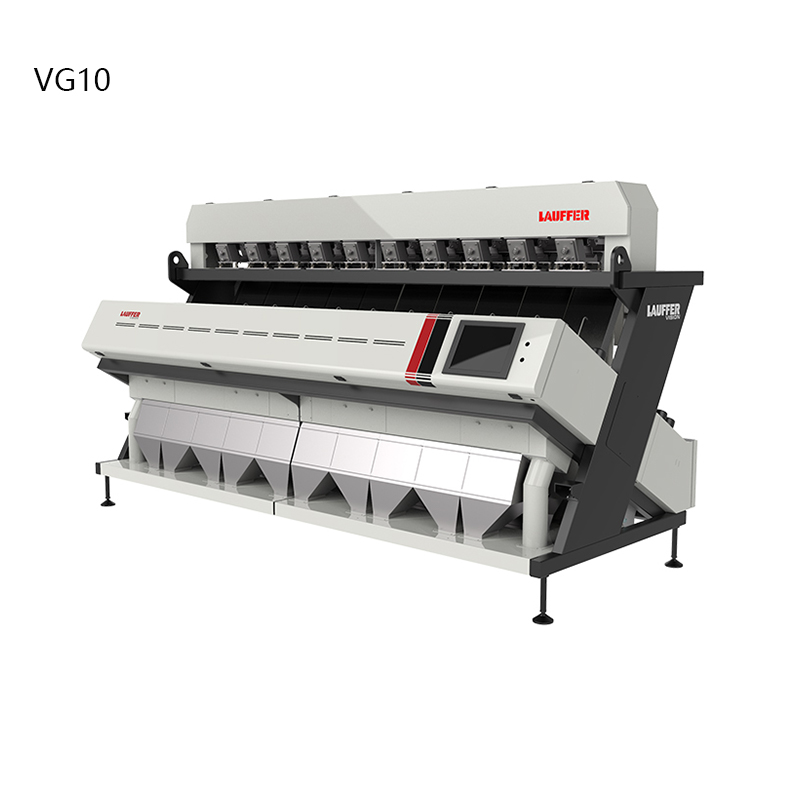

VG10	10	640	0.6~0.8	<5000	7.3	220(50)	4070×2199×2076	2180

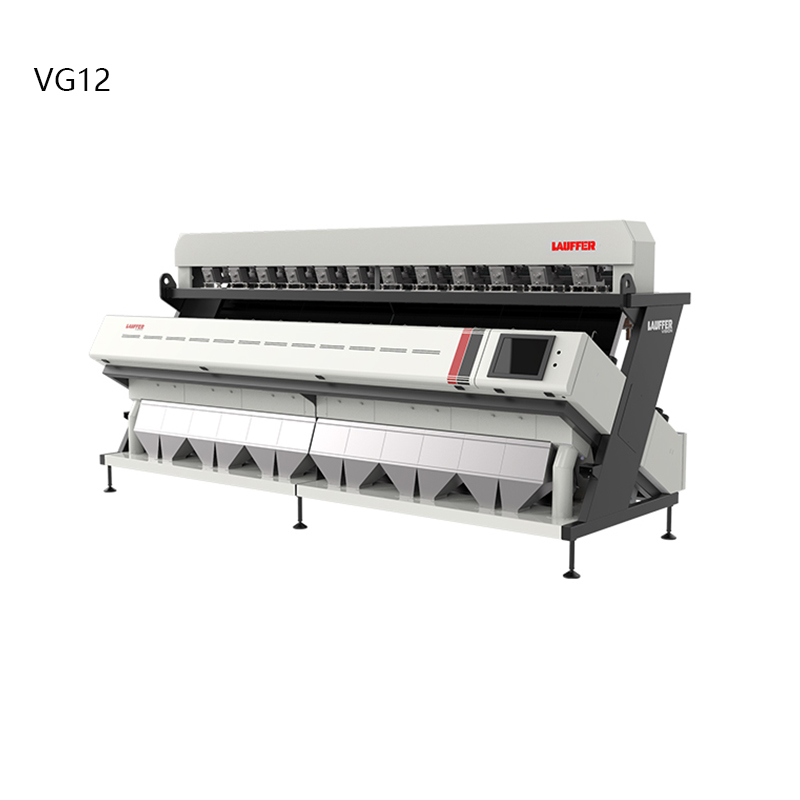

VG12	12	768	0.6~0.8	<6000	8.8	220(50)	4835×2199×2076	2550

Model	Chute	Air Nozzle	Air Pressure (mpa)	Air Consumption (L/min)	Power (kw)	Voltage (v/hz)	Dimension (LWH)(mm)	Weight* (kg)
VG1	1	64	0.6~0.8	<1000	0.9	220(50)	1255×2199×2076	680
VG3	3	192	0.6~0.8	<1500	2.2	220(50)	1855×2199×2076	1000
VG4	4	256	0.6~0.8	<2000	2.9	220(50)	2170×2199×2076	1150
VG5	5	320	0.6~0.8	<2500	3.7	220(50)	2480×2199×2076	1320
VG6	6	384	0.6~0.8	<3000	4.4	220(50)	2800×2199×2076	1480
VG7	7	448	0.6~0.8	<3500	5.2	220(50)	3115×2199×2076	1640
VG8	8	512	0.6~0.8	<4000	5.9	220(50)	3430×2199×2076	1840
VG10	10	640	0.6~0.8	<5000	7.3	220(50)	4070×2199×2076	2180
VG12	12	768	0.6~0.8	<6000	8.8	220(50)	4835×2199×2076	2550
