Grün VPF UV Sorter is a premium sorting solution designed to use advanced UV Camera System to detect and eliminate aged yellow flakes and OBAs-contaminated fragments, preventing product defects and achieving A+ clarity PET for bottle-to-bottle recycling and food packaging production
Technical Features
● Tailored Sorting Solution for UV Detection to PET Flakes
✦ High-capacity vibratory feeder evenly distributes plastic flakes into a single layer to minimize overlapping
✦ Sealed scanning and control boxes provide machine with high-level dust protection
✦ Field-proven Dust Control System and Air Cooling System integrated maintains high operation reliability and performance consistency, and minimizes downtime
✦ Modular design of vertical frame size from 4 to 10 chutes (4/6/8/10) provides processors more flexibility
● Premium UV Inspection System
✦ Captures fluorescence signals with 0.1mm² resolution for precise detection
✦ Detects weak fluorescence of aged PET excited by UV LEDs
✦ Detects intense blue-white fluorescence of OBAs-contaminated PET
● High-Performance Ejector System
✦ Engineered for enhanced durability, optimized speed and air consumption
✦ Accurate rejection and reliable performance at high-capacity sorting
✦ Adjustable settings for typical plastic flake sizes (3-15 mm)
● 15-inch Industrial Touchscreen Control Panel
✦ Intuitive HMI with multilingual support
✦ Instant switching between product profiles
✦ Comprehensive remote support system
✩ Remote Access and Monitoring
✩ Real-time Performance Dashboard
✩ Live Expert Diagnosis
✩ Interactive Troubleshooting
Applications
Specifications
Chute
Throughput
(t/h)
Air Pressure
(mpa)
Air Consumption
(m3/min)
Power
(kw)
Unpacked Weight
(kg)
Dimension
(mm)
Grün VPF1
1255×1670×1995
2170×1829×1995
Model
Air Nozzle
1
64
0.4~0.8
0.6~0.8
<1.0
0.9
680
Grün VPF4
4
256
1.5~3.0
0.6~0.8
<2.0
2.9
1160

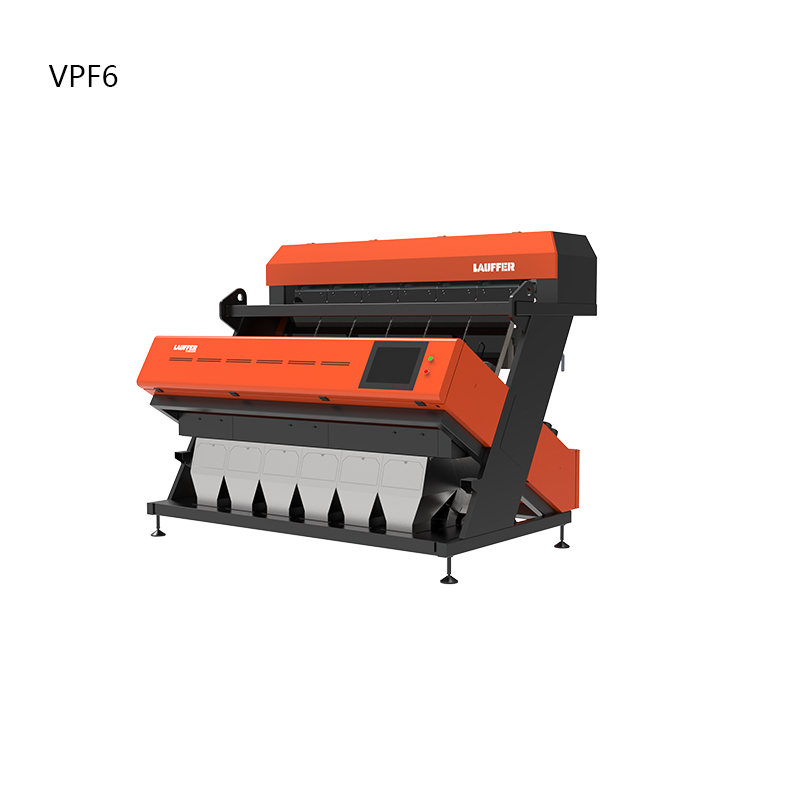

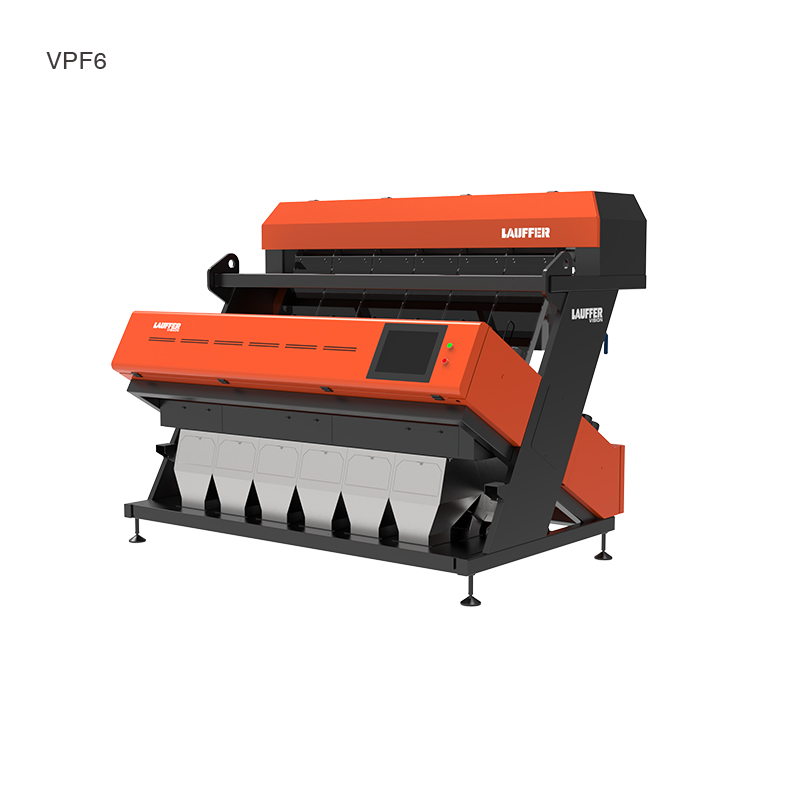

Grün VPF6
6
384
2.0~4.0
0.6~0.8
<3.0
4.4
1450
2800×1829×1995

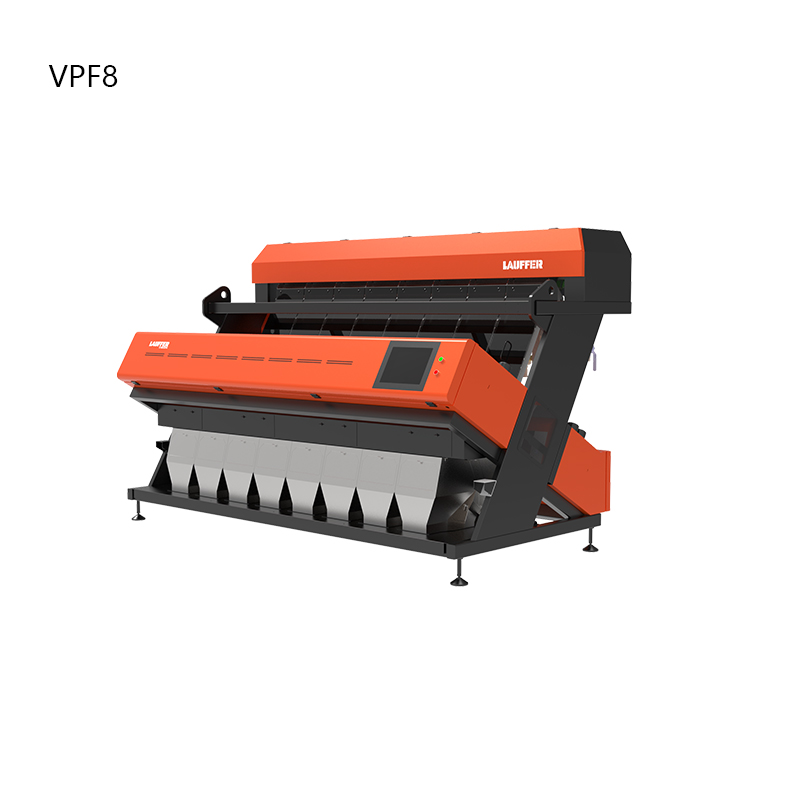

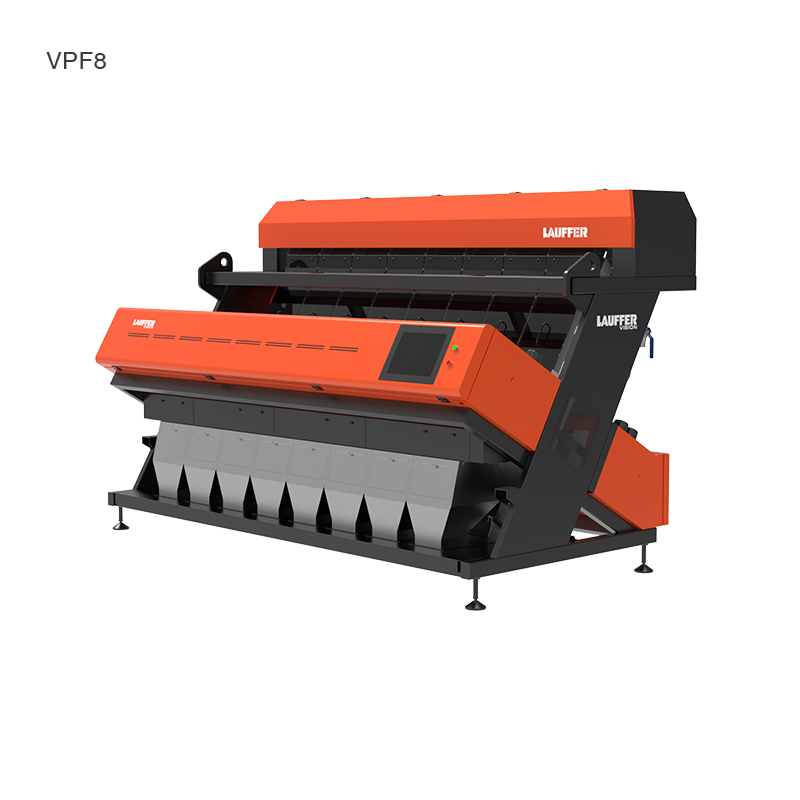

Grün VPF8
8
512
3.0~6.0
0.6~0.8
<4.0
5.9
1700
3430×1829×1995

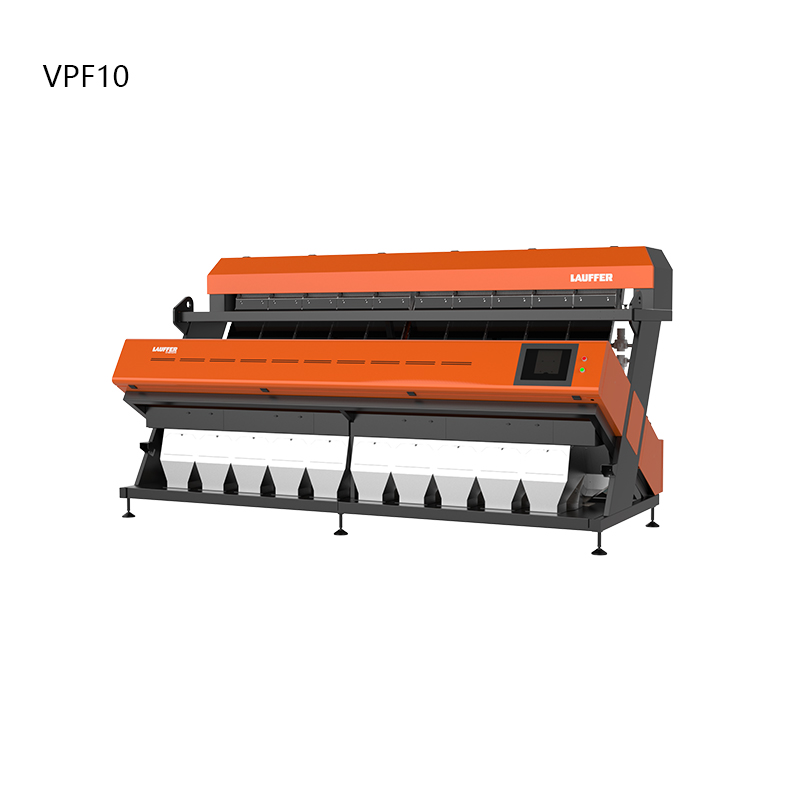

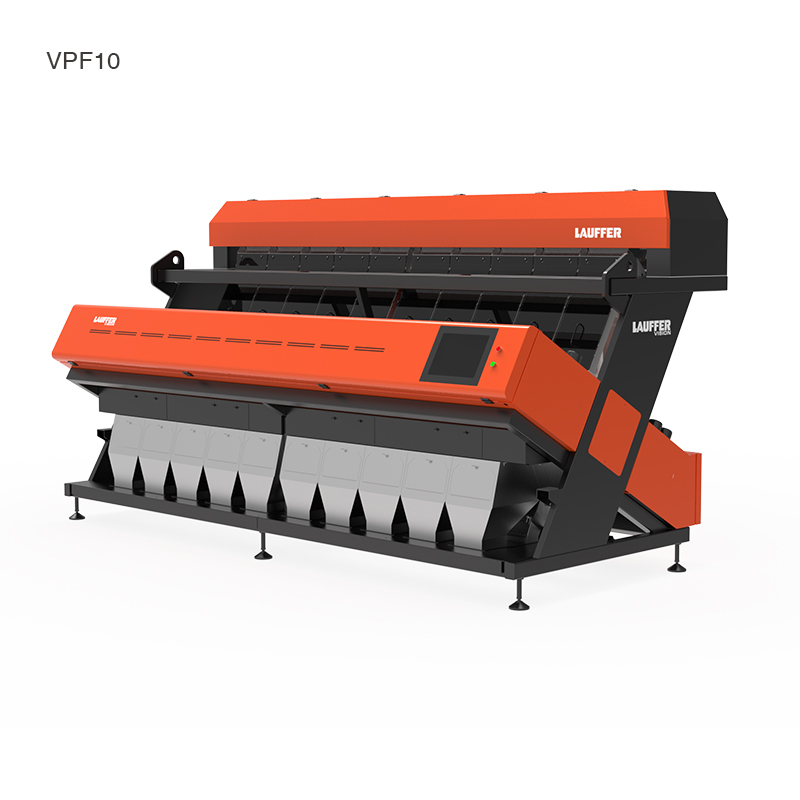

Grün VPF10
10
640
4.0~8.0
0.6~0.8
<5.0
7.3
2050
4070×1829×1995
