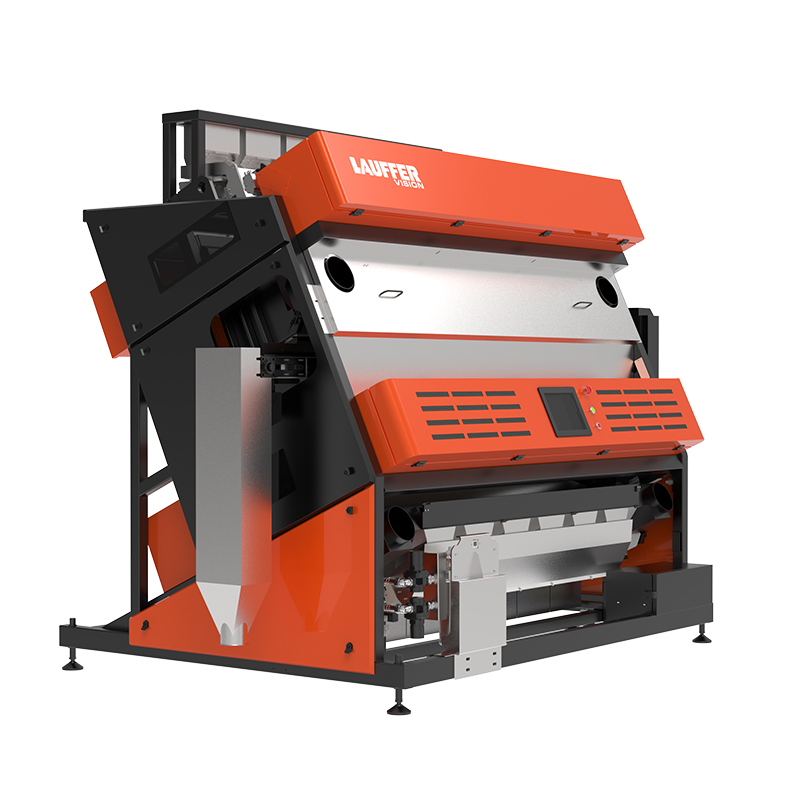

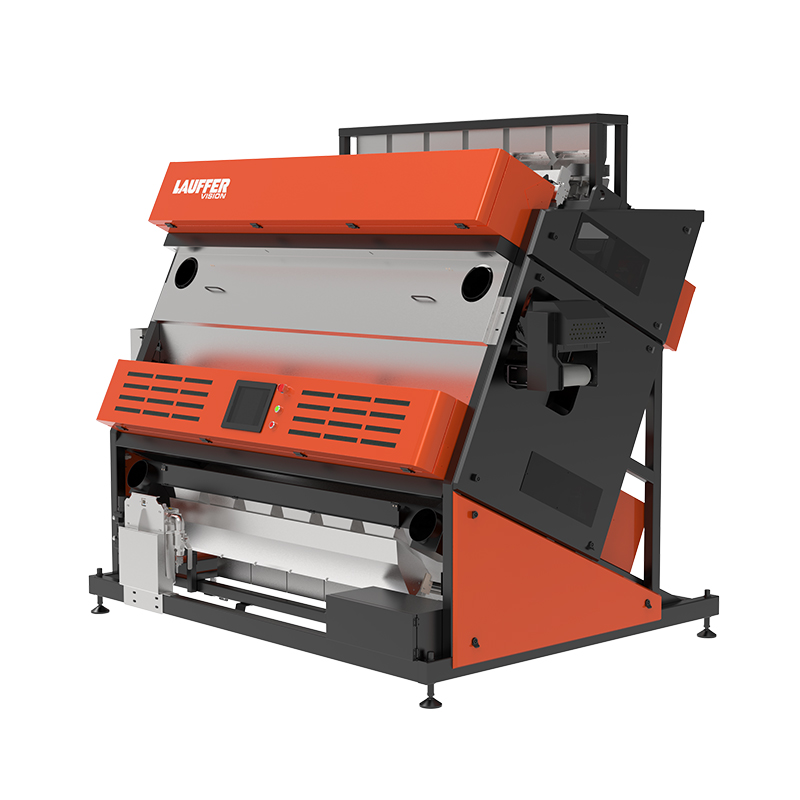

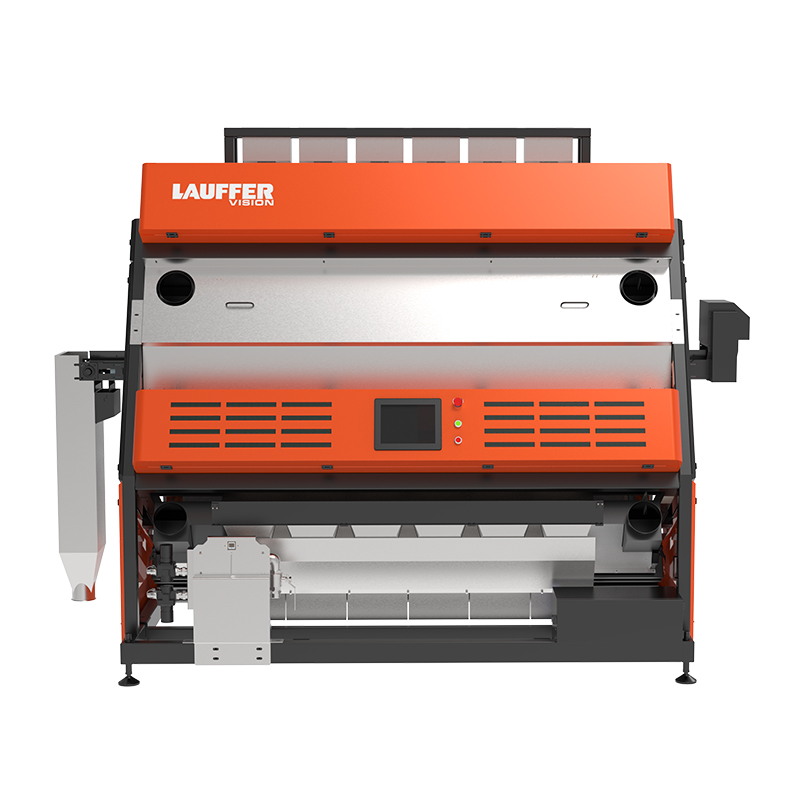

Stein VOP Ultra RGB Sorter

Fine quartz powder color sorting (16 to 120 mesh); Double-layer design enhances purity and minimizes false rejects
Mode:
Chute:
Air Nozzles:

Stein VOP Ultra RGB Sorter uses Ultra-High-Resolution RGB Camera System to efficiently sort quartz powder, accurately removing iron spots and mica impurities while significantly improving product purity and value

With pollution-free operation and low energy consumption, it provides an economical and eco-friendly solution for artificial stone manufacturers, solar glass producers and quart processers for semiconductor industry

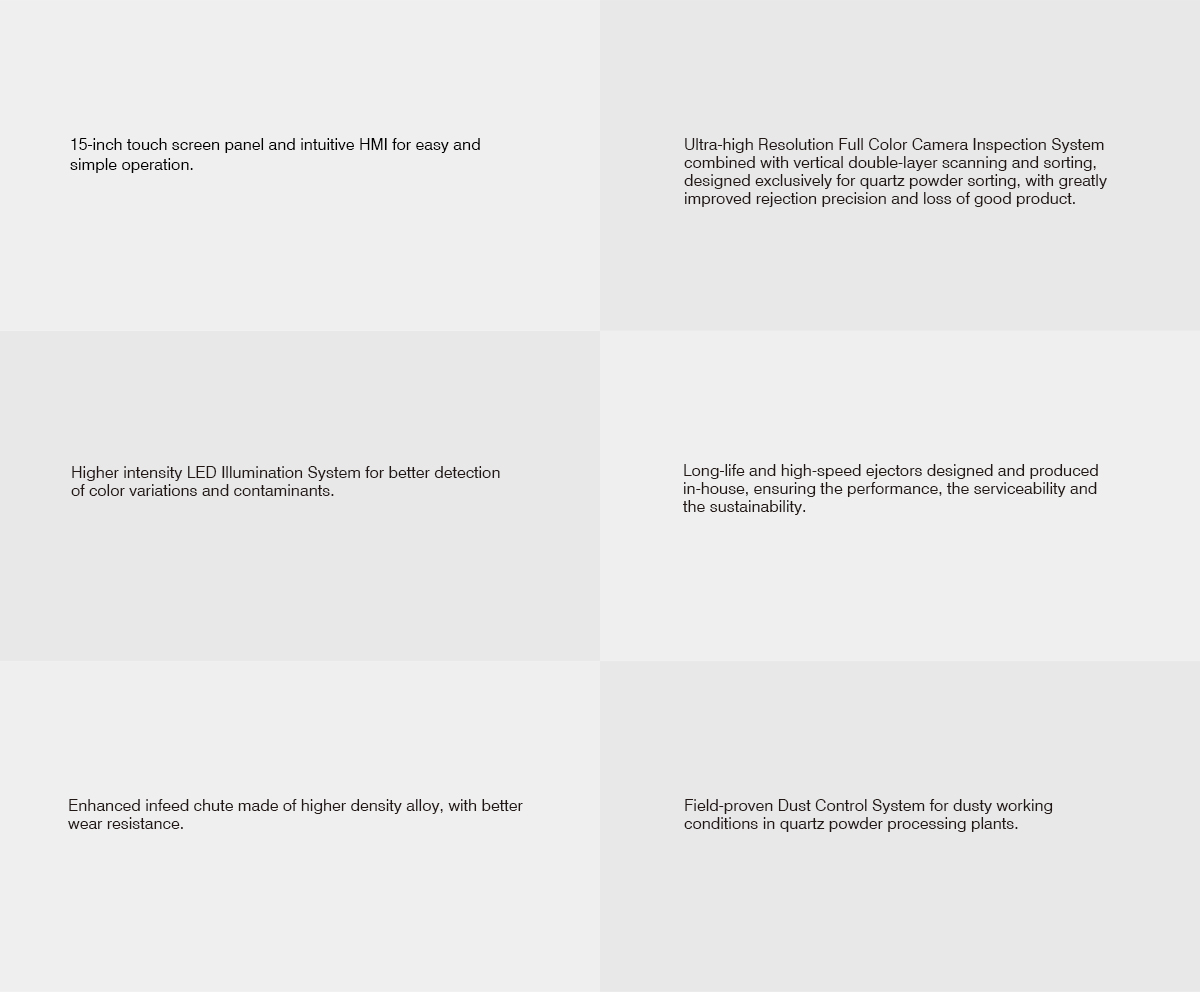

Technical Features

 Ultra-High-Resolution RGB Camera System

Detects impurities (e.g., iron spots, mica, organic residues) with >95% accuracy



 Exclusively Designed Double-Layer Scanning and Sorting

Improve quartz powder purity and minimize false rejects

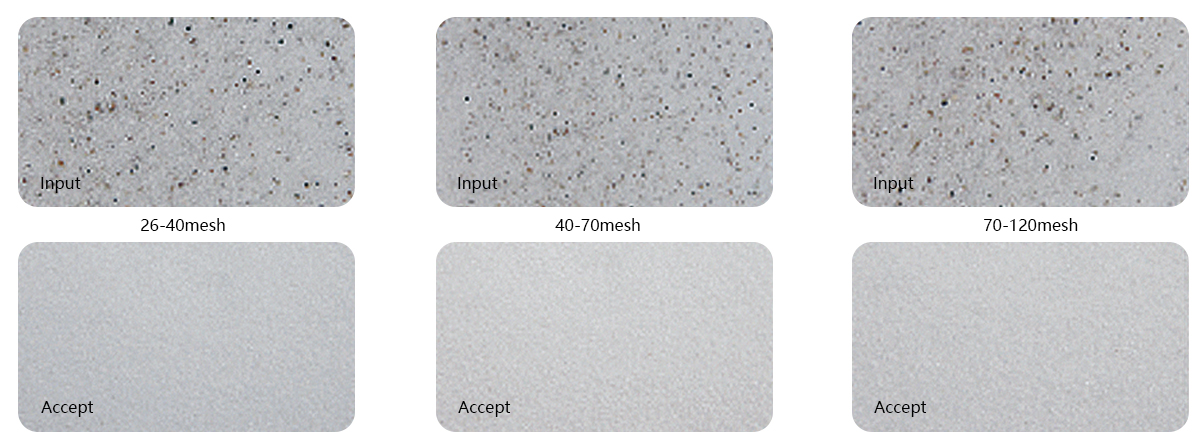

 Fine powder sorting performance

Handles 16120 mesh quartz powder, overcoming limitations of conventional sorters on fine particles


 Non-Contact Sorting Technology

Contactless ejection via air nozzles preserves quartz purity without secondary contamination



Typical Application Scenarios

 Artificial Stone Manufacturers



 Solar Glass Producer



 Quartz Processors Supplying Semiconductor Fabs



Benefits

 Value Enhancement

Increases product value by 30-50% compared to traditional washing/acid leaching



 Sustainable Production

Eliminates 90% of wastewater compared to conventional purification methods and reduces energy consumption by 60% compared to electrostatic separation



 Operational Efficiency

One-machine solution replaces complete washing-drying-magnetic separation lines and 100x faster than manual sorting with consistent quality output



 Fast ROI

Typical payback period <12 months for high-purity quartz producers


Specifications

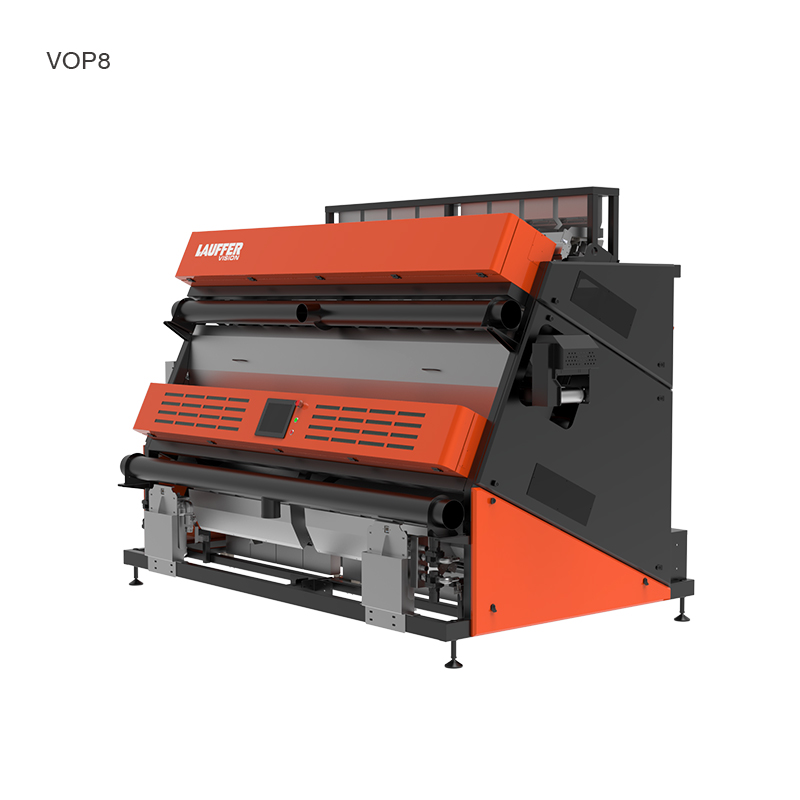

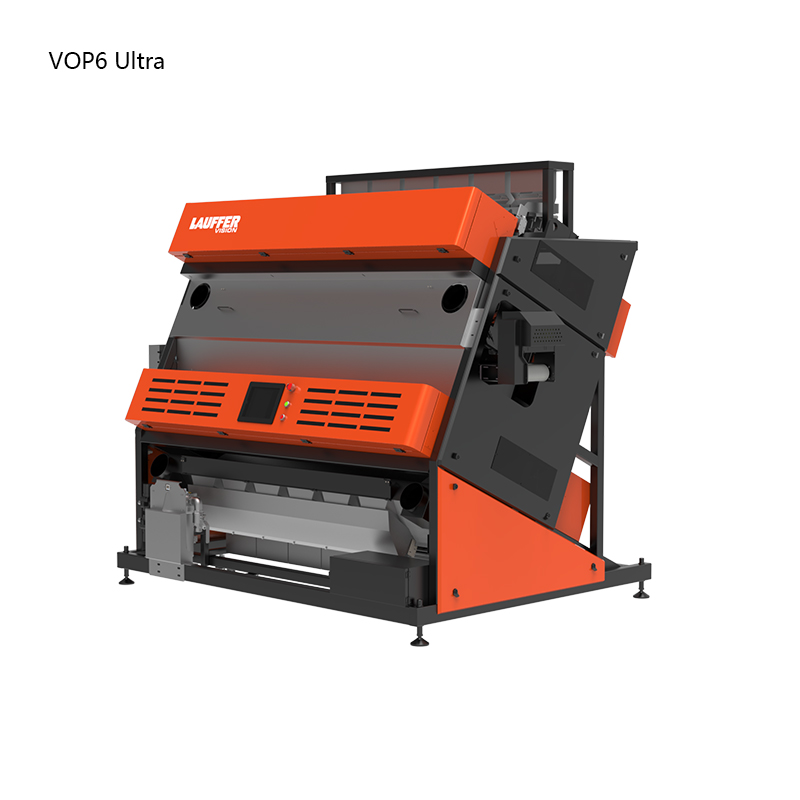

Model VOP6 Ultra VOP8 Ultra
Chute 6 8
Air Nozzle
384 512
Throughput

16~26 mesh: 5~7t/h

26~40 mesh: 4~6t/h

40~70 mesh: 3~5t/h

70~120 mesh: 2~3t/h

16~26 mesh: 8~10t/h

26~40 mesh: 7~8t/h

40~70 mesh: 5~7t/h

70~120 mesh: 3~5t/h

Voltage(v/hz)
220/50 220/50
Power (kw)
7 8.4
Air Pressure (mpa)
0.6~0.8 0.6~0.8
Air Consumption (L/min)
≤3600
≤5000
Unpacked Weight (kg)
2350 3500
Dimension (mm)
2814×2029×2609
4053×2178×2661
