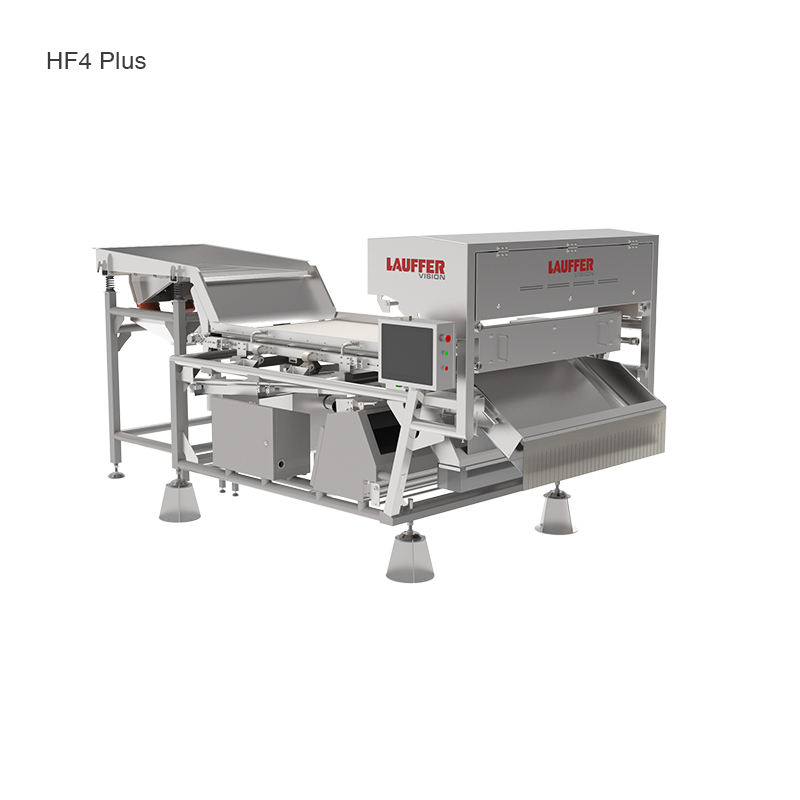

Legende HF Plus Series AI-Driven Sorting System

IQF (Individually Quick Frozen) fruits and vegetables present unique sorting challenges distinct from fresh vegetables. Handling products in low-temperature environments leads to significant physical exhaustion for manual pickers during prolonged shifts, often resulting in missed detections due to visual fatigue. Meanwhile, surface frost and particle adhesion can obscure defects such as discoloration, black spots, and mold. Additionally, frozen clumps and adhering defective products, defects specific to IQF scenarios, further intensify the sorting difficulty.

The Legende HF Plus series is an intelligent machine-vision-based sorting system tailored for this scenario. It employs ultra-high-resolution RGB (UHR-RGB) VIS imaging and proprietary AI deep learning algorithms to scan IQF fruits and vegetables. By analyzing color, shape, texture, and edge features, and equipped with high-performance air ejectors, it achieves ultra-high-precision rejection of off-color particles, surface defects, clumps, adhesion, and foreign materials within milliseconds.

Empowered by AI-driven surface feature recognition algorithms, the system can conduct deep learning training based on real production data, continuously optimizing the visible defect detection accuracy. This means the equipment’s performance is not fixed at the time of factory shipment; instead, it continuously adjusts and improves with the accumulation of production data, delivering stable and reliable sorting performance to help IQF fruit and vegetable processing plants significantly reduce reliance on manual labor, consistently deliver batches with extremely low defect rates, ensure food safety, and markedly enhance product quality and processing efficiency.

Applications

Technical Features

● Tailored Machine-Vision-Based Sorting System for IQF Vegetables and Fruit

✦ Compact Single-Belt Structure

Features a quick-install design with a small footprint and flexible deployment, perfectly adapting to IQF fruits and vegetables processing lines of varying scales.

✦ High-Performance Waterproof Vibratory Feeder

Offers multiple customized solutions for different IQF frozen fruits and vegetables categories, evenly distributing materials into a single layer. This effectively minimizes overlapping and adhesion, providing a stable material posture for high-precision detection.

✦ Rigorous Hygiene and Easy-to-Clean Design

Featuring the food-grade stainless steel structure, the reinforced sealed camera chamber and electrical cabinet, the system is built to withstand high-frequency high-pressure washing and sterilization. Combined with the quick-change belt and round-tube frame design, it significantly reduces the risk of sanitation dead zones, making daily maintenance convenient and efficient.

✦ Built-in Humidity Control System

Ensures the stable operation of internal optical components and electrical systems, meeting the stringent environmental requirements of IQF fruits and vegetables processing workshops.

✦ Integrated Self-Cleaning

Automatically cleans the glass of the camera chamber to continuously keep the scanning area clear. This reduces manual intervention and downtime for cleaning, ensuring continuous and stable equipment operation.

✦ Multi-Specification Model Portfolio

Available in two belt width models (1200mm and 1800mm) to meet diverse throughput capacity requirements.

● AI Powered Ultra-High-Precision Defect Inspection System

✦ Ultra-High-Resolution RGB (UHR-RGB) Imaging

Presents material surface features with ultra-high clarity, providing more reliable image inputs for AI algorithms, and ensuring greater accuracy and stability in surface defect recognition.

✦ Proprietary AI Deep Learning Algorithms

Enhances surface feature recognition capabilities and supports model retraining based on real-world production data, achieving continuous optimization of visible defect detection accuracy through deep learning.

✦ High-Intensity LED Illumination

Guarantees a constant imaging environment with clear and stable images, unaffected by external light changes, ensuring consistent detection results across different time periods and batches.

Ultra-high-precision machine vision detection for various IQF fruits and vegetables defects based on surface features:

✩ Color Defects: Discoloration, mold, rot

✩ Shape Defects: Misshapen, deformed, oversized, undersized, broken

✩ Surface Damage: Bruises, cuts, abrasions, crushing, scars, cracks, shriveling

✩ Biological Contaminants: Insect damage, leaf/stem residues, other vegetable debris

✩ Foreign Materials: Stones, soil clumps, plastic/rubber fragments, wood chips

● High-Performance Air Ejector System

✦ Optimized Design

The ejector valve structure is optimized to balance durability, response speed, and air consumption efficiency, maintaining stable performance even under long-term, high-frequency operation.

✦ High Efficiency and Stability

Optimized for high-throughput sorting conditions, it maintains stable ejection performance within reasonable parameter ranges, balancing throughput and sorting accuracy.

✦ Cost Reduction

Significantly reduces the false reject rate, minimizing raw material waste from good products being incorrectly ejected, while optimizing air consumption to reduce overall operational costs.

● 15-Inch Industrial Touchscreen Control System

✦ Intuitive Interaction

User-friendly human-machine interface (HMI) with multi-language support.

✦ One-Click Switching

Quickly recalls sorting parameters for different products.

✦ Comprehensive remote support

✩ Remote access and real-time monitoring

✩ Performance data dashboard

✩ Online expert diagnostics

✩ Interactive troubleshooting

Specifications
