Legende HSF Series AI HSI Sorting System

Blueberries present a sorting challenge that conventional optical systems cannot fully address — defects such as internal bruising, hidden mold, and moisture anomalies are often invisible to standard RGB cameras and the human eye alike. For processors supplying premium fresh, IQF, and export markets, these undetectable risks pose serious threats to product quality, shelf life, and brand trust. Intelligent, multi-spectral sorting is the key to seeing what conventional technology simply cannot.

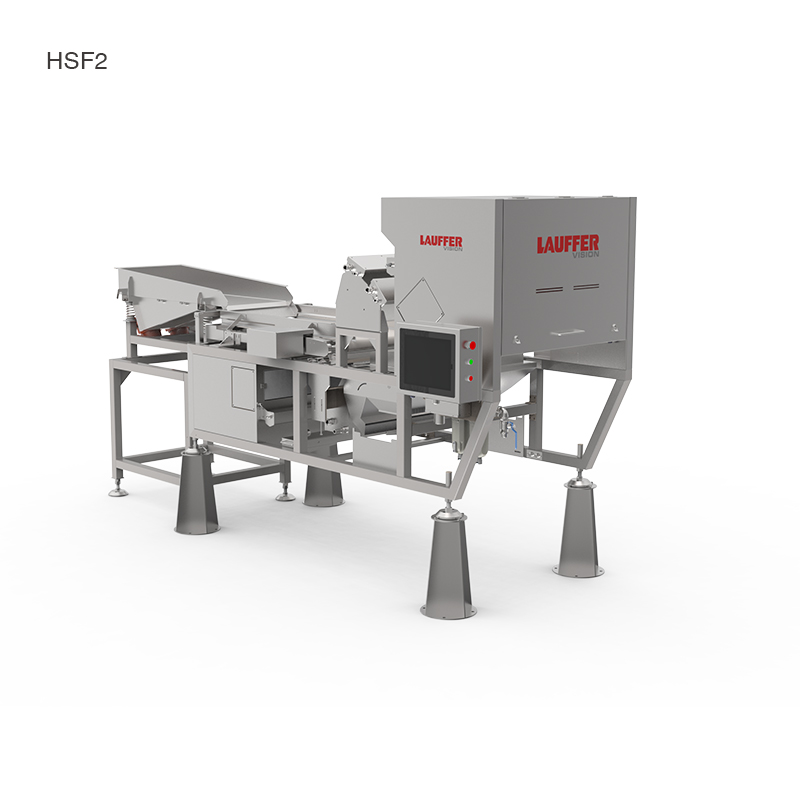

The Legende HSF Series is a multi-spectral sorting system custom-designed for premium blueberries. Leveraging the seamless integration of cutting-edge hyper-spectral imaging (HSI) and high-resolution RGB (HR-RGB) imaging technology powered by proprietary AI algorithms, the system enables non-destructive evaluation of both surface and internal quality — going far beyond the capabilities of traditional RGB systems to detect defects that are invisible to conventional vision-based sorting.

AI-driven surface defect recognition algorithms — trained on real-world production data using deep learning, with sorting precision refined continuously — ensure consistently high sorting accuracy across diverse blueberry conditions — helping processors eliminate hidden quality risks, maximize usable yield, and deliver premium-grade blueberries with unmatched confidence.

Applications

Technical Features

● Tailored Optical Sorting System for Premium Blueberry

✦ Compact single-belt sorting system with quick-install design

✦ High-capacity vibratory feeding system evenly distributes blueberries into a single layer to minimize overlapping

✦ Engineered design for gentle handling of delicate blueberries

✦ Food-grade stainless steel structure and quick belt change design ensure convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

✦ Sealed scanning/control enclosures provides machine with high-level dust protection

✦ Integrated Dust Control System maintains consistent performance and minimizes downtime

✦ Available in two models with belt widths of 600 mm and 1200 mm, enabling processors to select the throughput capacity that best fits their production requirements

● AI Powered Ultra-High-Precision Defect Inspection System

✦ Proprietary AI algorithms enhance defect detection, with models retrainable on real-world production data via deep learning, enabling continuous refinement of sorting precision

✦ Hyper-Spectral Imaging System captures spectral signatures for each pixel, detecting bruising, decay, unripe fruit, and foreign materials invisible to standard cameras.

✦ High-Resolution RGB Camera System delivers precise surface imagery, detecting size irregularities, stem scars, blemishes, and color deviations for reliable pre-screening.

✦ High-Stability Halogen Lighting System provides consistent, full-spectrum illumination for the hyper-spectral sensor, with air-cooling ensuring stable output and extended lamp life.

✦ High-Intensity LED Illumination System delivers bright, uniform, energy-efficient lighting with minimal heat output and long service life for high-throughput image capture.

✦ Unprecedented ultra-high-precision detection of a wide range of defects in blueberries based on surface features:

✩ Soft berry detection: Internal water/sugar analysis

✩ Color grading: Separation by ripeness (dark/light blue/unripe) for uniform appearance

✩ Size grading: Sorting by diameter

✩ Defect detection: Mold, shriveled, cracked, or scarred berries

✩ Foreign material removal: Stems, insects, plastic

● High-Performance Air Ejector System

✦ Engineered for enhanced durability, optimized speed and air consumption

✦ Accurate rejection and reliable performance at high-capacity sorting

✦ Significant reduction in false rejection rate and total cost of ownership

● 15-Inch Industrial Touchscreen Control Panel

✦ Intuitive HMI with multilingual support

✦ Instant switching between product profiles

✦ Comprehensive remote support system

✩ Remote Access and Monitoring

✩ Real-time Performance Dashboard

✩ Live Expert Diagnosis

✩ Interactive Troubleshooting

Specifications
