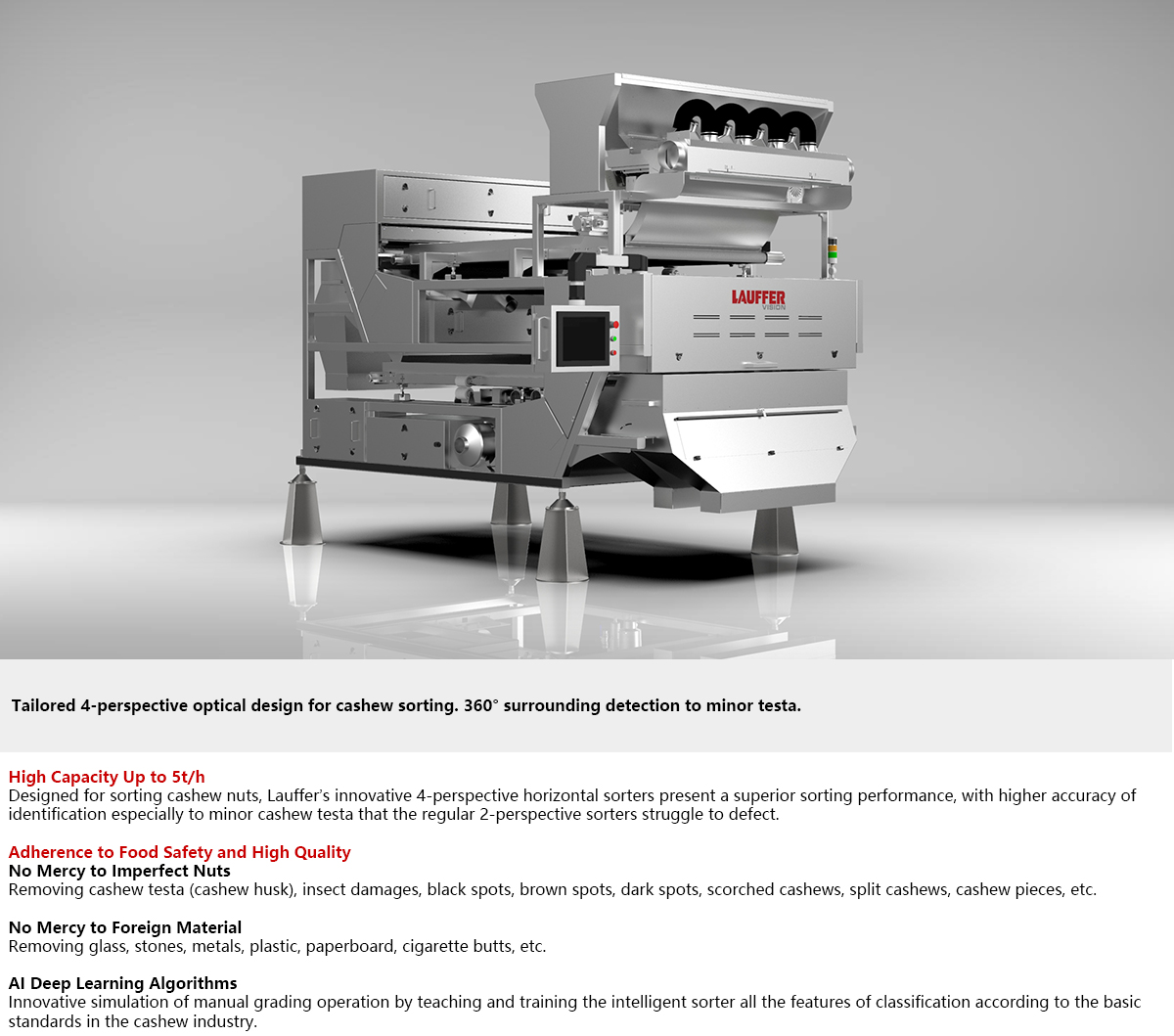

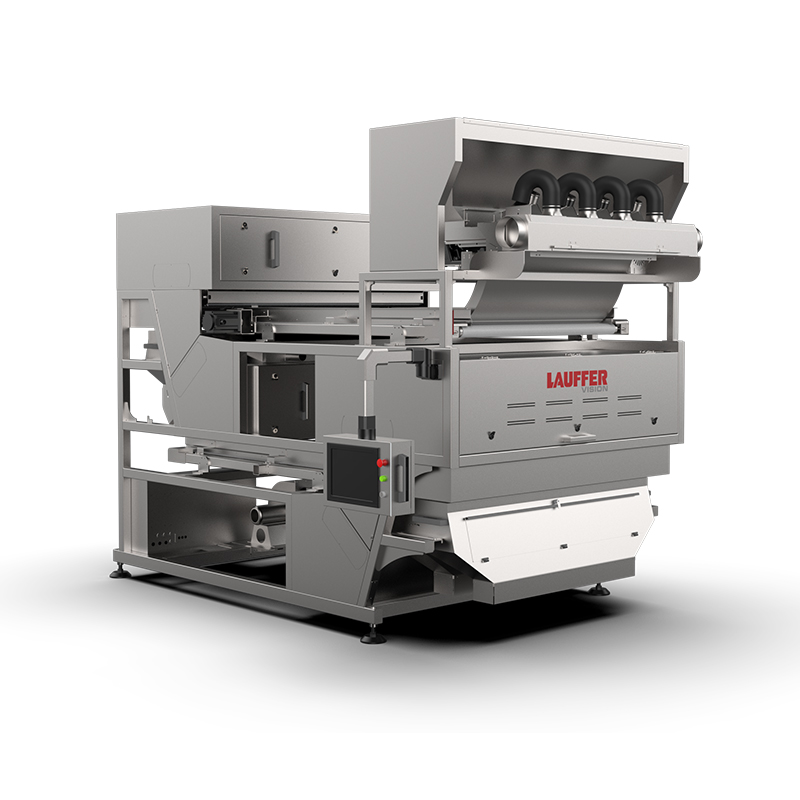

Legende HAD AI-RGB Sorter

Tailored 4-view crossed optical design for cashew; AI powered high-precision detection to imperfection, even minor testa
Mode:
Belt Width:
Air Nozzles:

It’s not just about removing bad cashews, it’s about optimally allocating every good kernel to its highest-value market!

Designed for kernel refinement of removal of surface defects and grading to export standards (W240/W320) by AI algorithms, and also elimination of burnt kernels and contaminants in post-roasting stage


Applications


Technical Features

 Tailored Sorting Solution for Cashew Nuts

 Compact dual-belt sorting system with designs for quick-install and simultaneous resorting of the accept from the primary sorting

 Primary sorting occurs on higher-level belt and rejects obvious bad kernels (rotten, shriveled, foreign material)

 Secondary sorting on lower-level belt receives accepts from primary sorting for sub-classification into multiple premium grades based on size, color and defect tolerance

 High-capacity vibratory feeder evenly distributes cashew nuts into a single layer to minimize overlapping

 Sealed scanning and control boxes provides machine with high-level dust protection

 Food-grade stainless steel structure and quick belt change ensures convenient routine maintenance and cleaning, meeting higher food safety and hygiene standards

 Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

 Modular design of belt width from 600 to 1200mm (600/1200) provides processors more flexibility



 AI Powered 4-view and 4-in-1 Inspection System

 Proprietary AI Deep Learning algorithms continuously improves defect recognition based on new samples

 In-house 4-view Crossed High-Resolution RGB Camera System

 High-Intensity LED Illumination System

 Superior precision detection to various detects of cashew nuts by color, size, shape and texture features:

 Color Defects: Black spots, oxidation, yellowing

 Shape Defects: Broken, cracked, shriveled, deformed

 Processing Defects: Shell residues, adhered testa

 Biological Contaminants: Insect damage, mold, rotten

 Foreign Materials: Stems, leaves, stones, plastic, metal

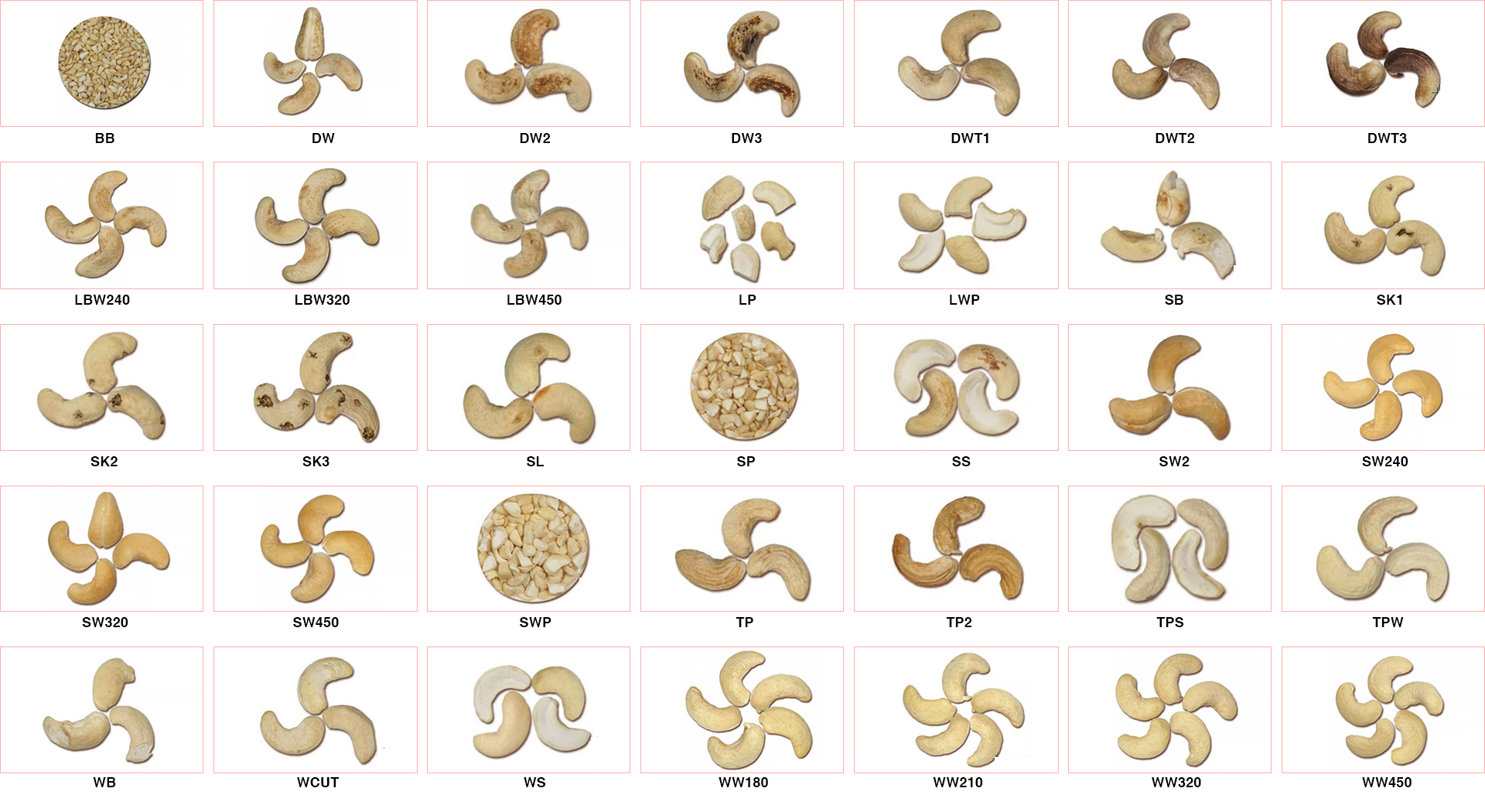

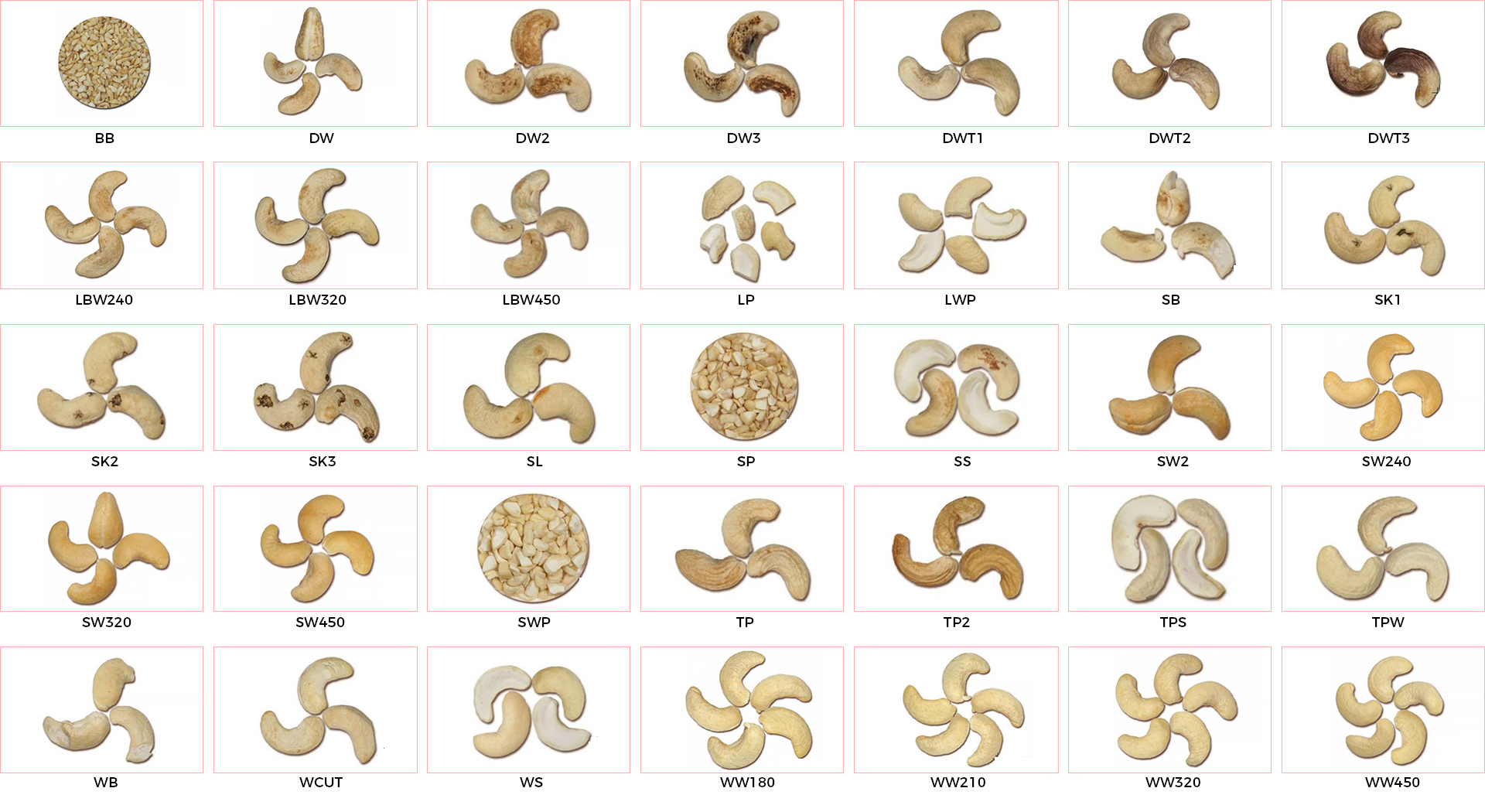

 Size Grading: Whole (W), SW(Super Whole), S(Splits), B(Butts)

 Adjustable color, size, defect sensitivity tailored to client needs

 Adapts to global cashew types (Vietnam, India, Africa)



 High-Performance Ejector System

 Engineered for enhanced durability, optimized speed and air consumption

 Accurate rejection and reliable performance at high-capacity sorting

 Significant reduction in false rejection rate and total cost of ownership



 15-inch Industrial Touchscreen Control Panel

 Intuitive HMI with multilingual support

 Instant switching between product profiles

 Comprehensive remote support system

 Remote Access and Monitoring

 Real-time Performance Dashboard

 Live Expert Diagnosis

 Interactive Troubleshooting


Specifications

Model

Belt Width

(mm)

Air Nozzle

Air Pressure

(mpa)

Air Consumption

(m3/min)

Voltage

(v/hz)

Power

(kw)

Dimension

(mm)

Unpacked Weight

(kg)

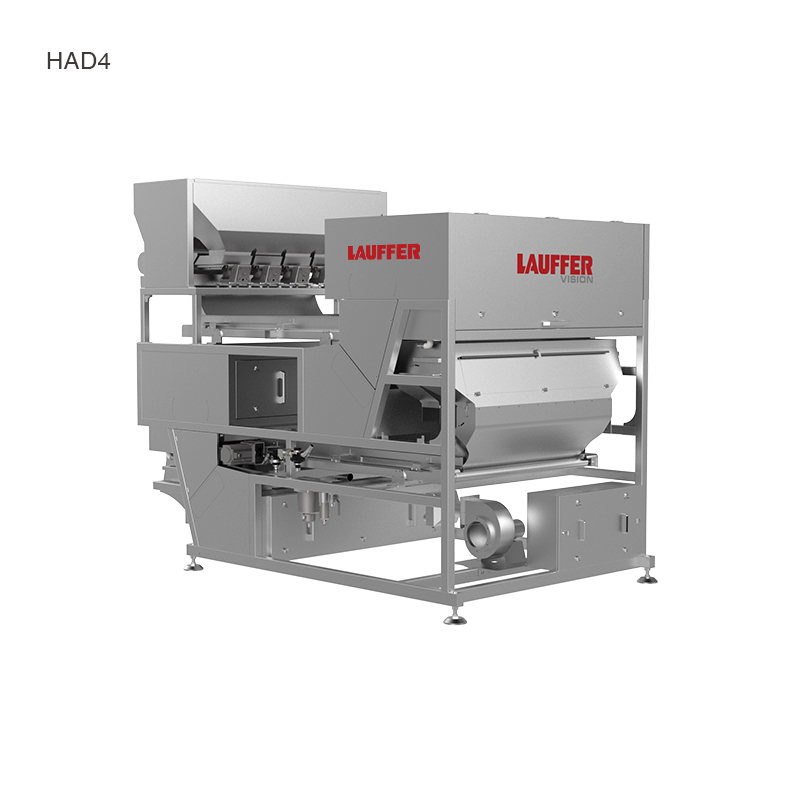

Legende HAD4

1200 512 0.6~0.8
<2.4
220/60
7.9 3590×2170×3125
2264
