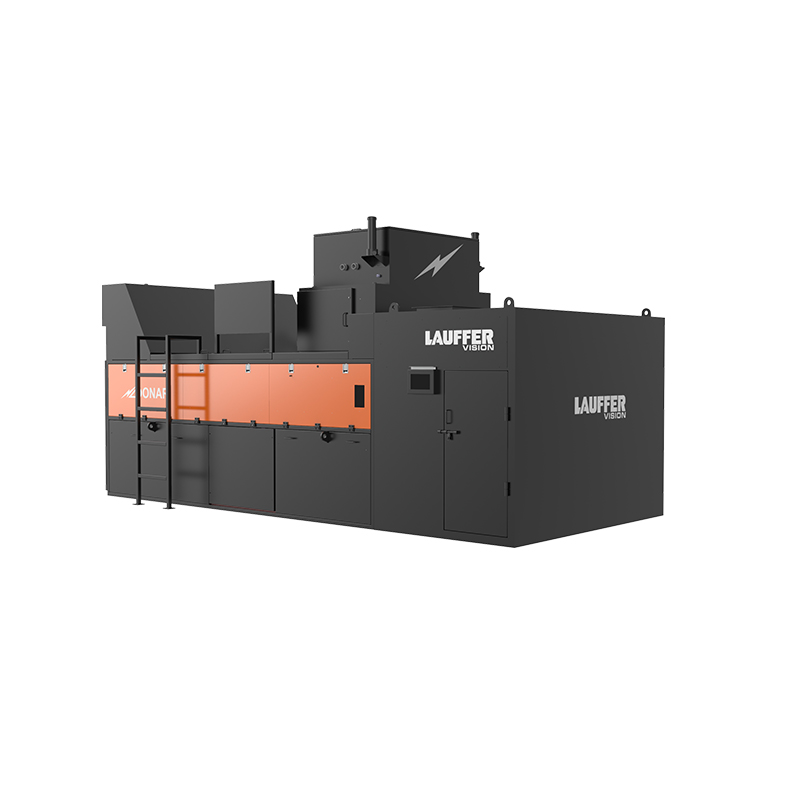

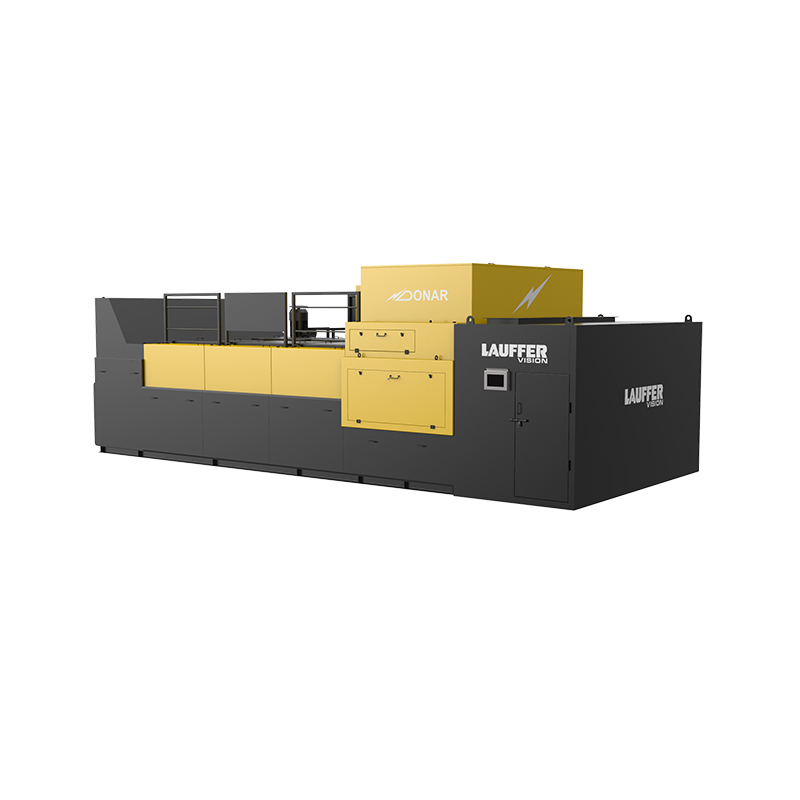

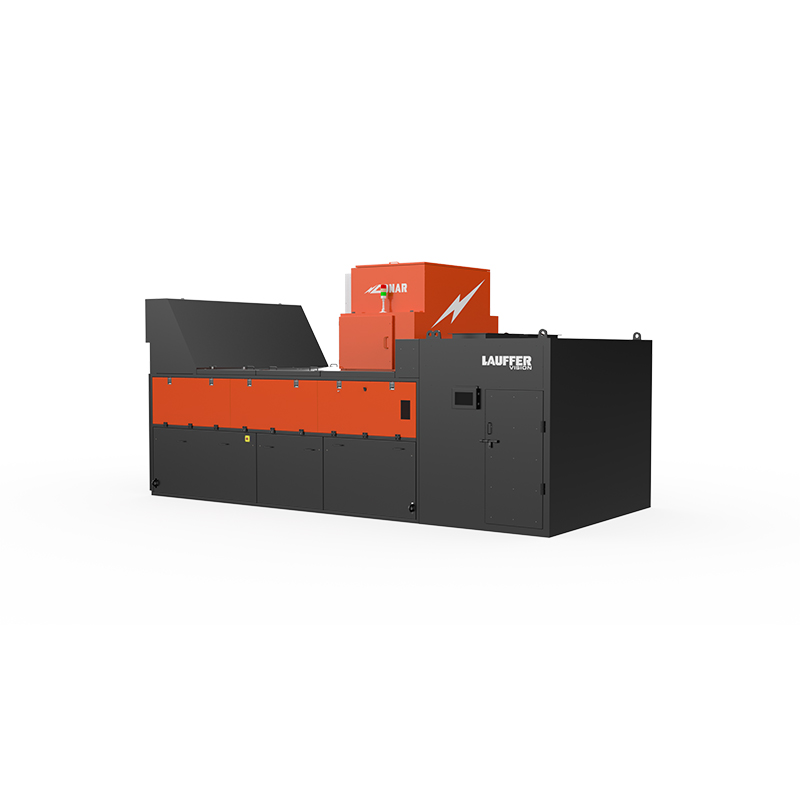

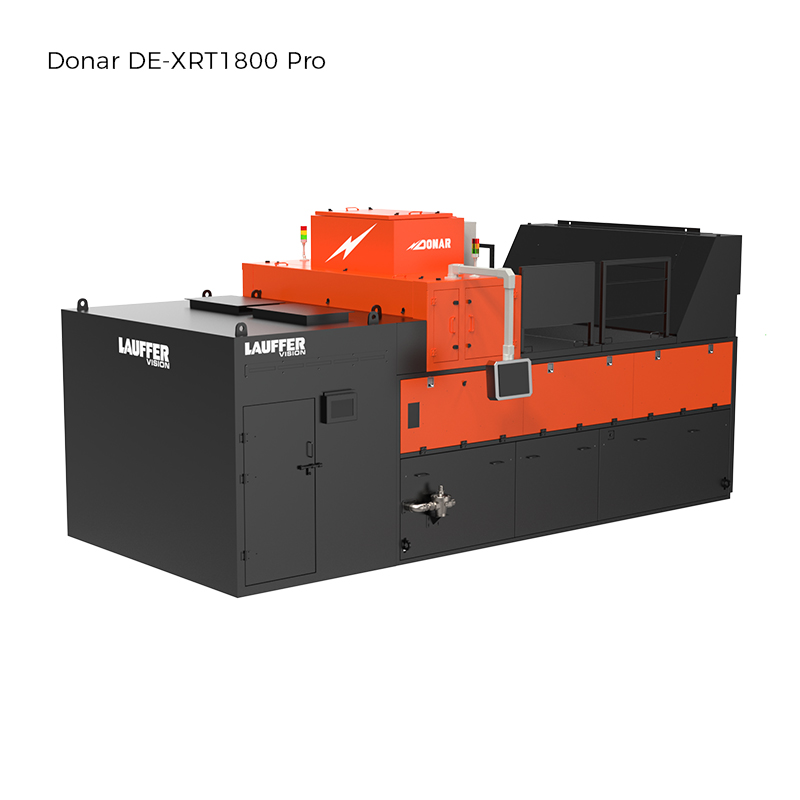

Donar DE-XRT Sorter

AI powered DE-XRT detects DER, density and characteristic absorption differences to classify wood and remove impurities
Application:
Mode:
Belt Width:
Air Nozzles:

Donar DE-XRT Sorter utilizes Dual-Energy X-ray Transmission Imaging and AI deep learning algorithms to accurately identify and classify wood quality grades by jointly calibrating wood density,  dual-energy ratio (DER), and characteristic absorption. It efficiently removes contaminants from wood waste, enhancing recycling efficiency, improving material purity, and protecting downstream equipment


Two X-ray Energy Levels:

Low-energy X-ray (20-50 kV)

High-energy X-ray (80-150 kV)

Softwood

 DER 1.1-1.3

 Density 0.35-0.55 g/cm³

Hardwood

 DER 1.5-1.8

 Density 0.65-1.05 g/cm³

MDF

 DER 1.2-1.6

 Density 0.65-0.80 g/cm³

Contaminants

 DER > 2.0


Technical Features

 Superior Dual-Energy X-ray Transmission

Precise wood quality classification and efficient contaminant removal by measuring differences in density, dual-energy ratio (DER) and characteristic absorption


 Proprietary AI Deep Learning Algorithms

Innovative simulation of manual picking operation by teaching and training the intelligent DE-XRT sorter all the standards and features of identification and sorting


 Reliable High-Performance Ejector System

High-speed and powerful air ejectors designed and produced in-house ensure accurate rejection and reliable performance at high-capacity sorting


 Flexible Modular Design

Modular design of belt width from 1200 to 2800mm (1200/1800/2800) provides processors more flexibility, ideal for wood recyclers, recycled panel producers and biomass power plants


Benefits

 Enhanced Material Purity

 Precision sorting: Separates softwood, hardwood, MDF, and contaminants (metals, plastics, stones)

 Higher-quality recycled wood: Suitable for premium applications (furniture, construction)


 Reduced Processing Costs

 Less manual labor: 3-5x faster than manual sorting

 Lower contamination costs: Removes hazardous materials early


 Environmental & Sustainable Benefits

 Less landfill waste: >90% recovery rate (vs. 60-70% conventional)

 Lower CO₂ emissions: 75% less carbon than virgin wood


 Increased Revenue

 Higher resale value: Purified wood sells for 30-50% more

 Optimized resource use: MDF→biofuel, hardwood→furniture



Specifications

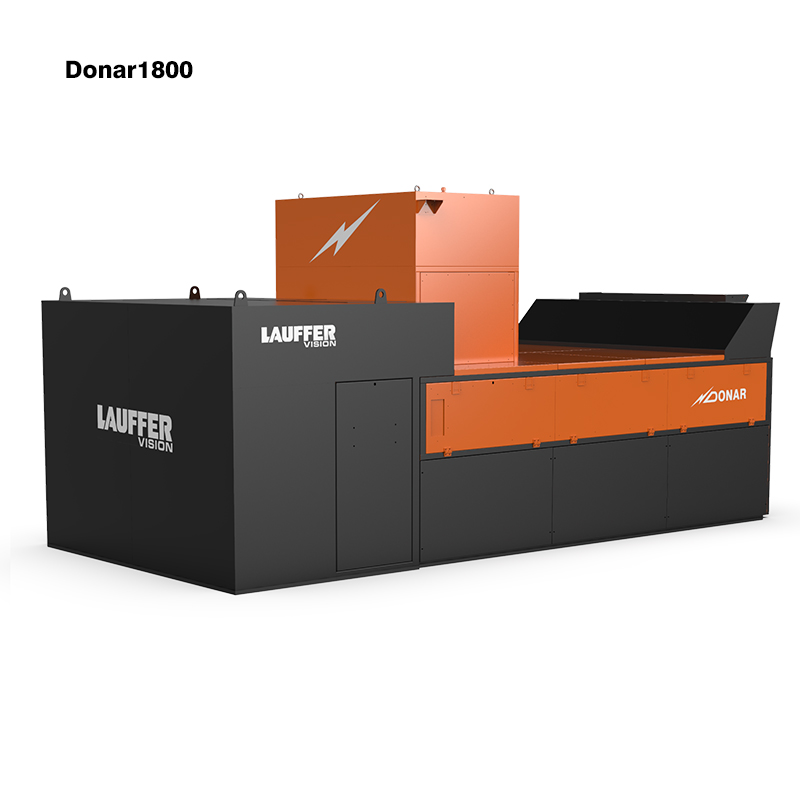

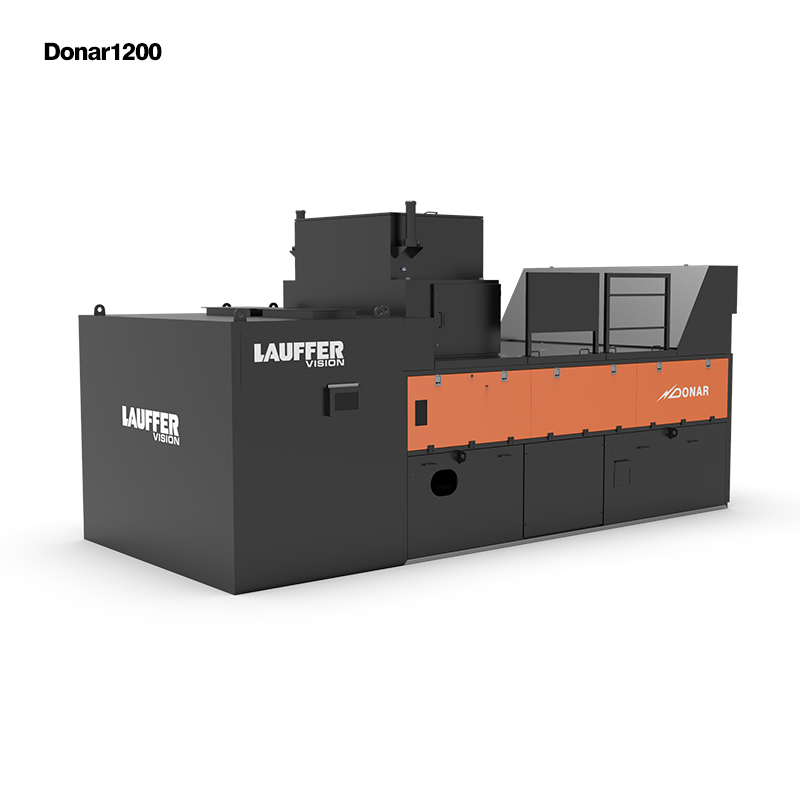

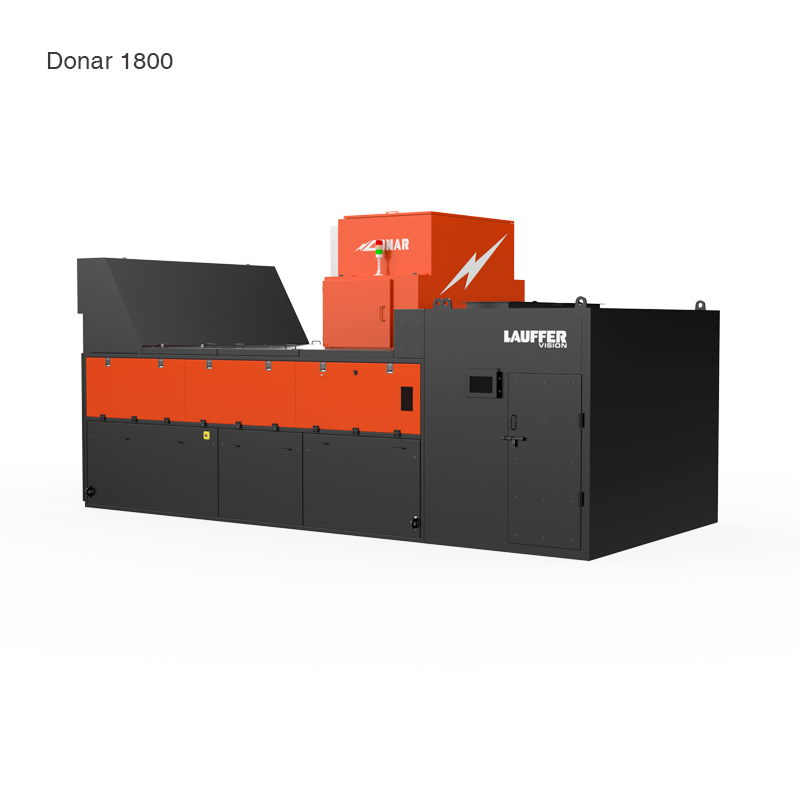

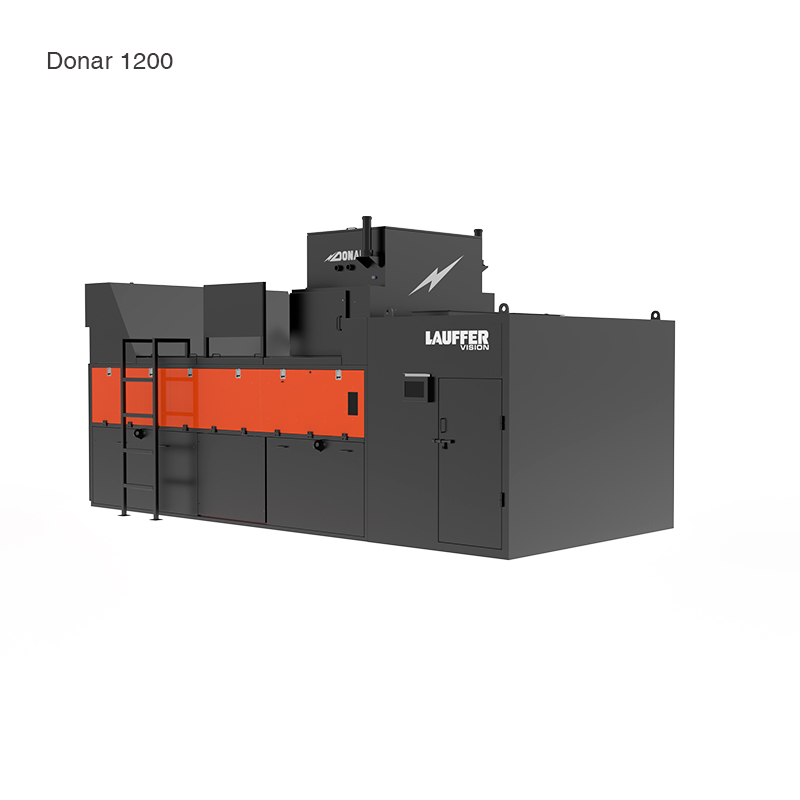

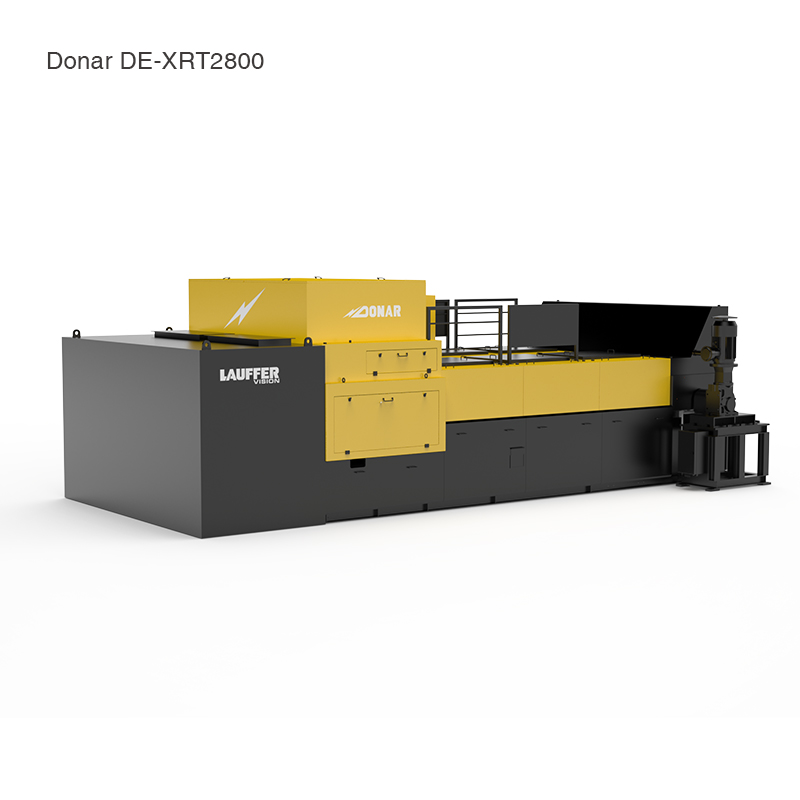

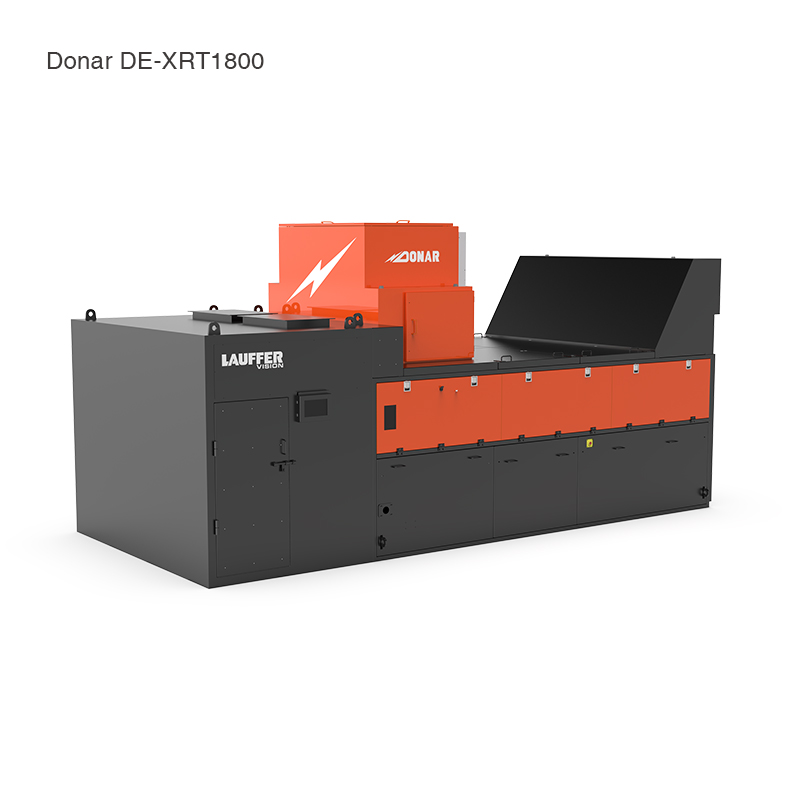

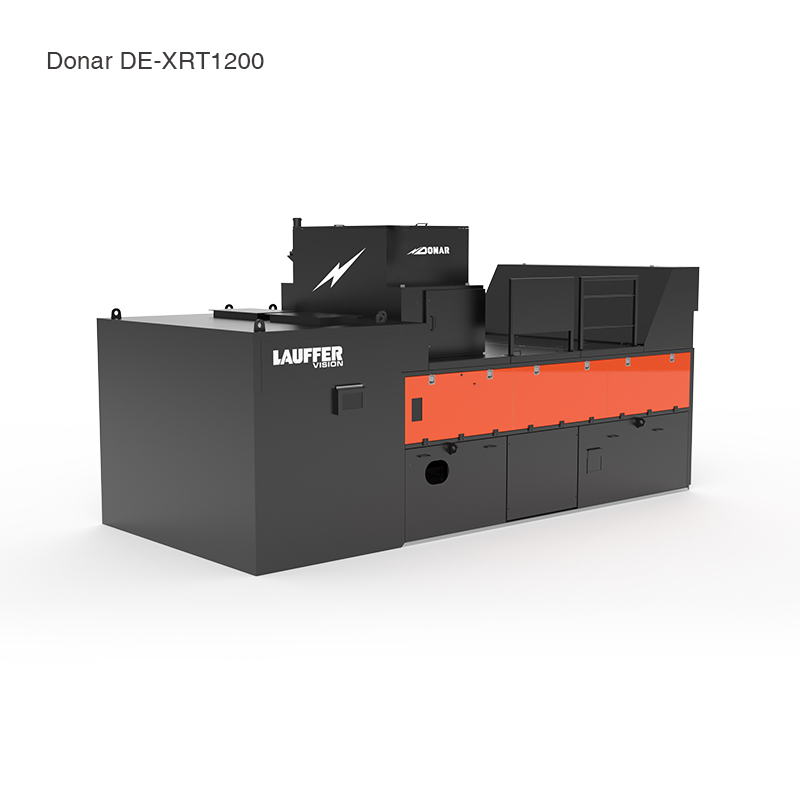

Model Donar DE-XRT1200 Donar DE-XRT1800
Donar DE-XRT2800
Belt Width (mm)
1200 1800 2800
Air Nozzle
202 304 468
Sorting Size (mm)
10~80 10~80
10~80
Throughput (t/h)
4~10
6~16 10~28
Air Consumption (m3/min)
15 20 25
Power (kw)
12 15 22
Dimension (mm)
5,675×2,436×2,349
5,675×2,890×2,751
7,780×4,142×2,594
Unpacked Weight (t)
5.8 8.0 15.0
