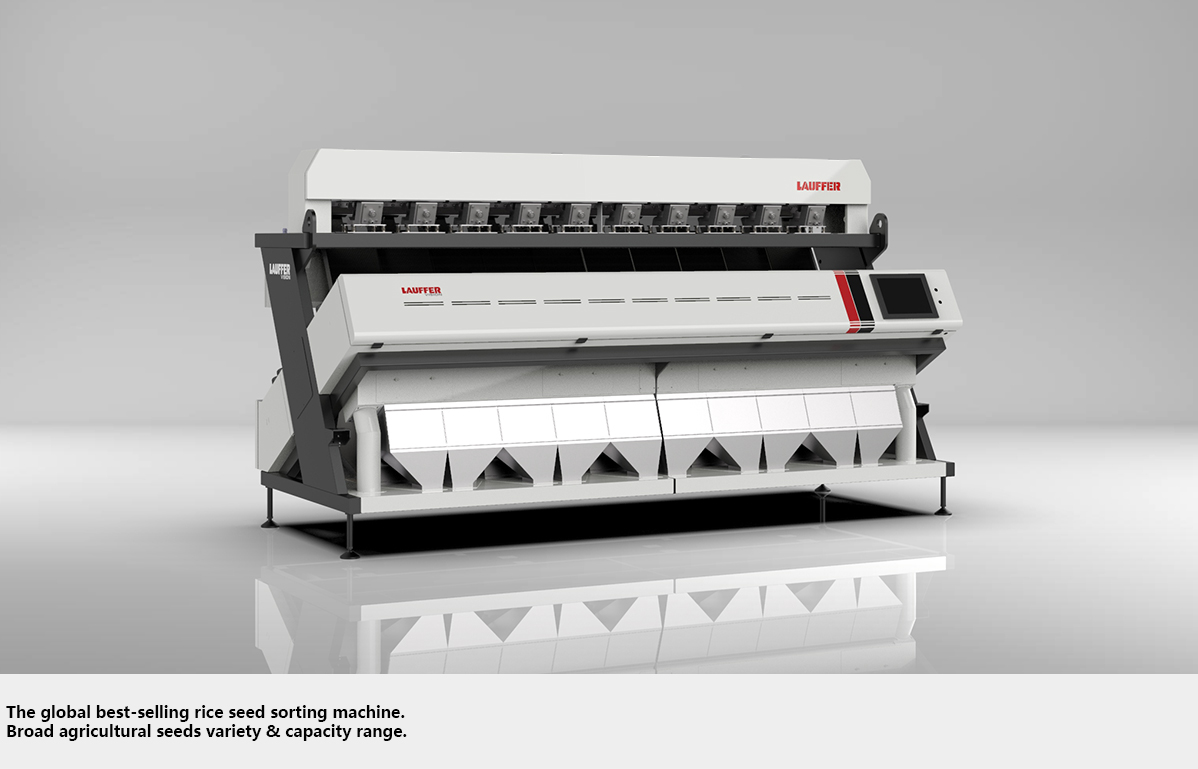

Designed for Seed processing plants and breeding research institutions worldwide (rice, corn, wheat, soybean, sunflower, fruit and vegetables, etc.) to precisely remove defects, foreign materials and diseased seeds while maximizing yield and quality
Technical Features
l Tailored Sorting Solution for Agricultural Seeds
² High-capacity vibratory feeder evenly distributes pulses and beans into a single layer to minimize overlapping
² Sealed scanning and control boxes provide machine with high-level dust protection
² Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime
² Modular design of vertical frame size from 1 to 12 chutes (1/3/4/5/6/7/8/10/12) provides processors more flexibility
l AI-Powered 4-in-1 Inspection System
² Proprietary AI Deep Learning algorithms continuously improve defect recognition based on new samples
² High-resolution RGB Camera System
² High-intensity LED Illumination System
² Optional NIR Camera System or SWIR Camera System
² Market-leading precise detection to a wide range of defects of agricultural seeds by color, size, shape and texture features:
Ø Discolored Seeds
Ø Moldy Seeds
Ø Broken/Cracked/Misshapen Seeds
Ø Insect-damaged Seeds
Ø Diseased Seeds: Fusarium-infected seeds
Ø Foreign Materials: Stones, soil clumps, husks, wild weeds, mixed varieties
Ø Chemical-coated/Dyed Seeds
Ø Mutant/Hybrid Seeds
² Customizable settings for diverse agricultural seeds
l High-Performance Ejector System
² Engineered for enhanced durability, optimized speed and air consumption
² Accurate rejection and reliable performance at high-capacity sorting
² Significant reduction in false rejection rate and total cost of ownership
l 15-inch Industrial Touchscreen Control Panel
² Intuitive HMI with multilingual support
² Instant switching between product profiles
² Comprehensive remote support system
Ø Remote Access and Monitoring
Ø Real-time Performance Dashboard
Ø Live Expert Diagnosis
Ø Interactive Troubleshooting
Applications
Specifications
Air Pressure
(mpa)
Air Consumption
(L/min)
Power
(kw)
Voltage
(v/hz)
Dimension
(L*W*H)(mm)
Weight*
(kg)

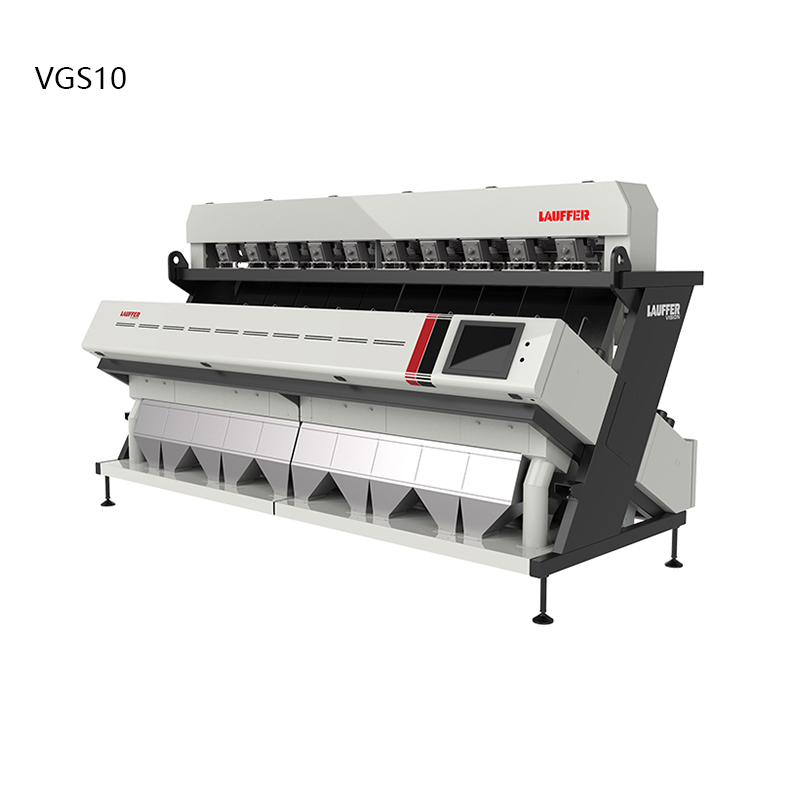

VGS10
Model
Chute
Air Nozzle

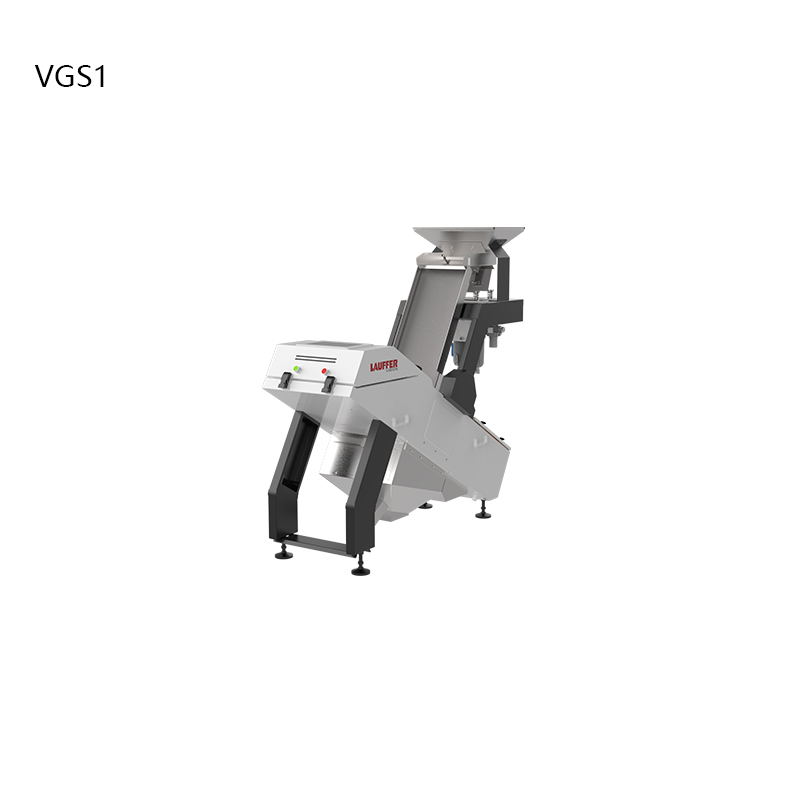

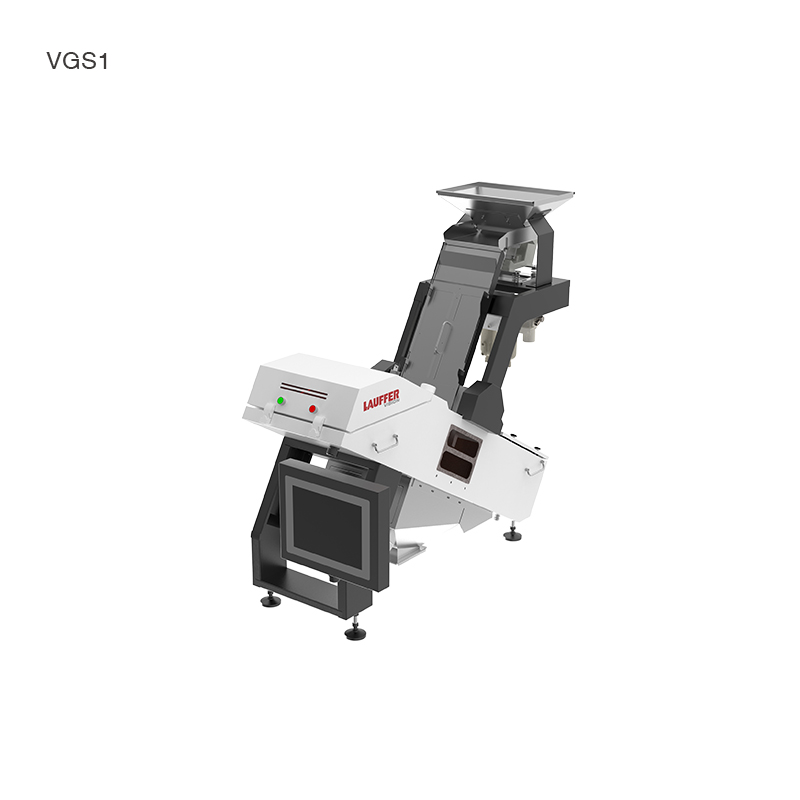

VGS1
1
64
0.6~0.8
<1000
0.9
220(50)
1255×2199×2076
680
VGS3
3
192
0.6~0.8
<1500
2.2
220(50)
1855×2199×2076
1000

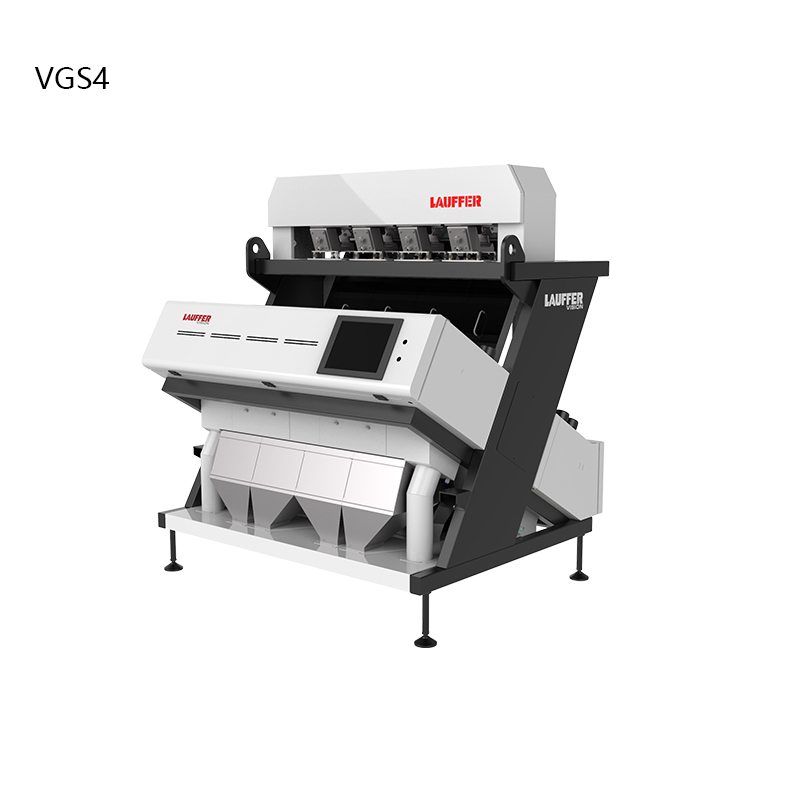

VGS4
4
256
0.6~0.8
<2000
2.9
220(50)
2170×2199×2076
1150
VGS5
5
320
0.6~0.8
<2500
3.7
220(50)
2480×2199×2076
1320

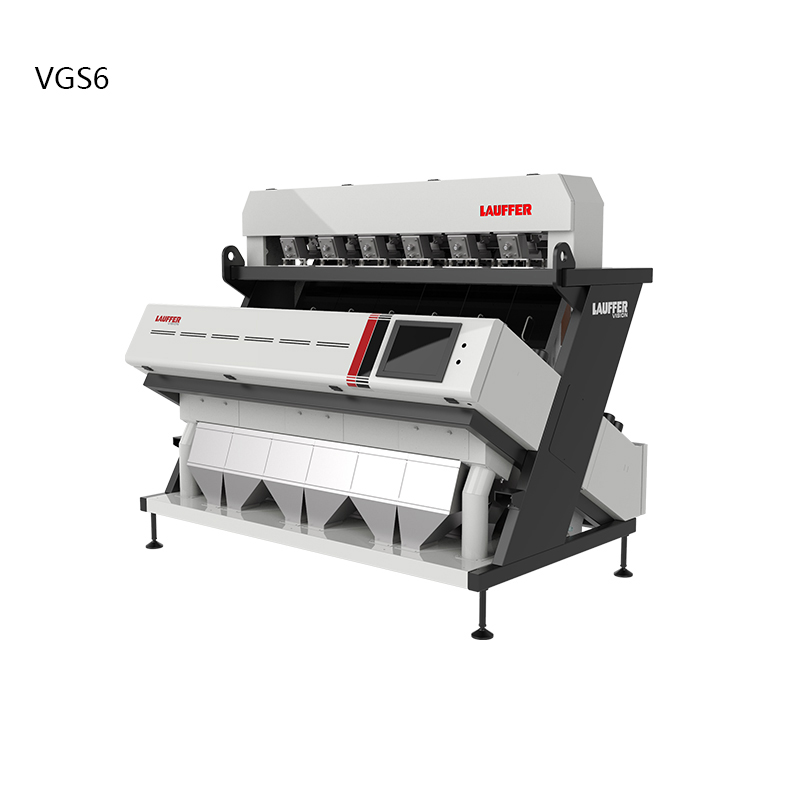

VGS6
6
384
0.6~0.8
<3000
4.4
220(50)
2800×2199×2076
1480
VGS7
7
448
0.6~0.8
<3500
5.2
220(50)
3115×2199×2076
1640
VGS8
8
512
0.6~0.8
<4000
5.9
220(50)
3430×2199×2076
1840
10
640
0.6~0.8
<5000
7.3
220(50)
4070×2199×2076
2180

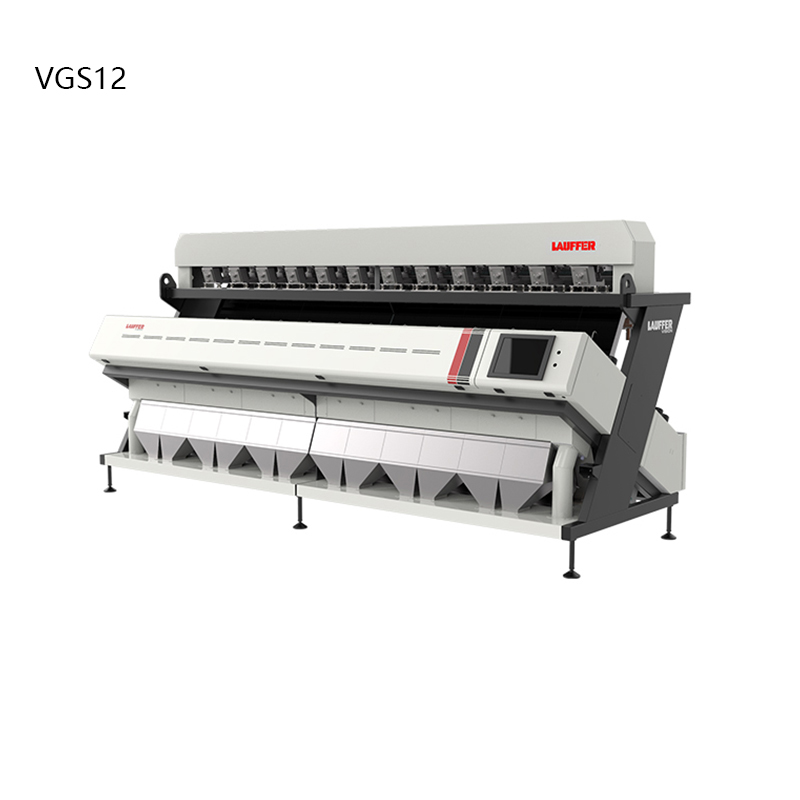

VGS12
12
768
0.6~0.8
<6000
8.8
220(50)
4835×2199×2076
2550
