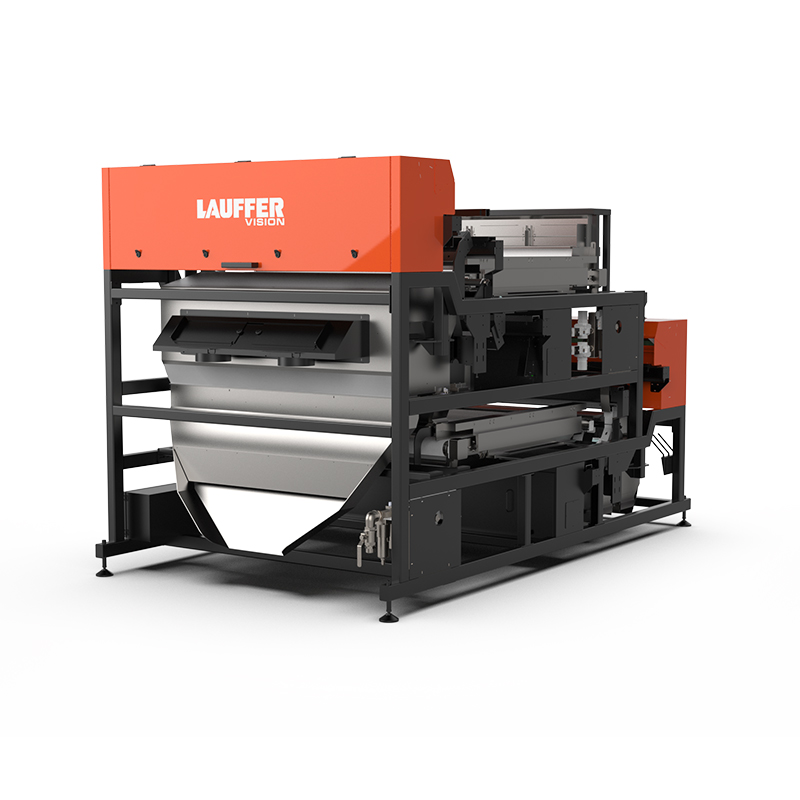

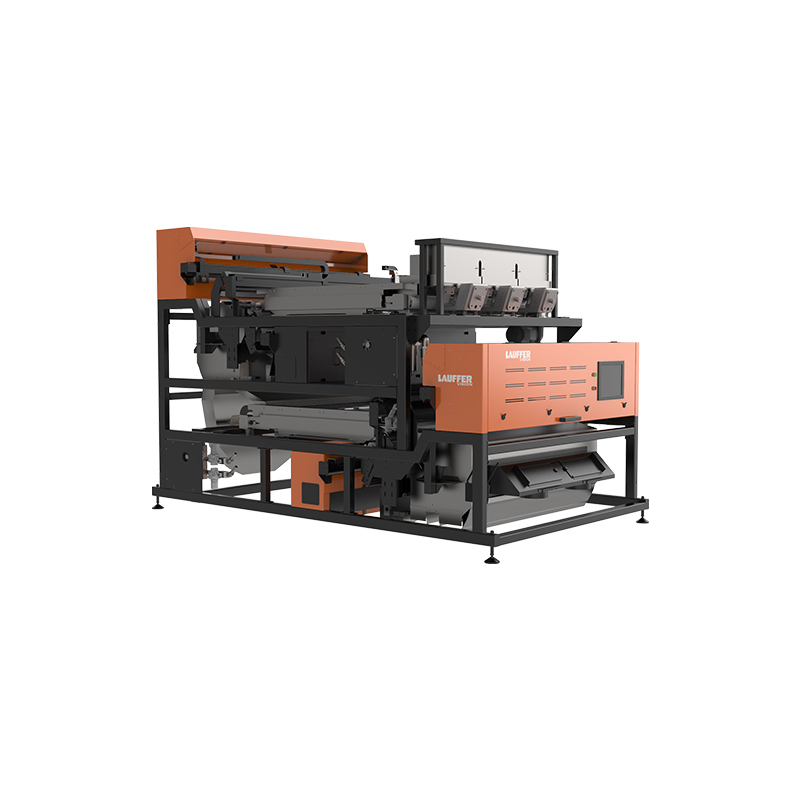

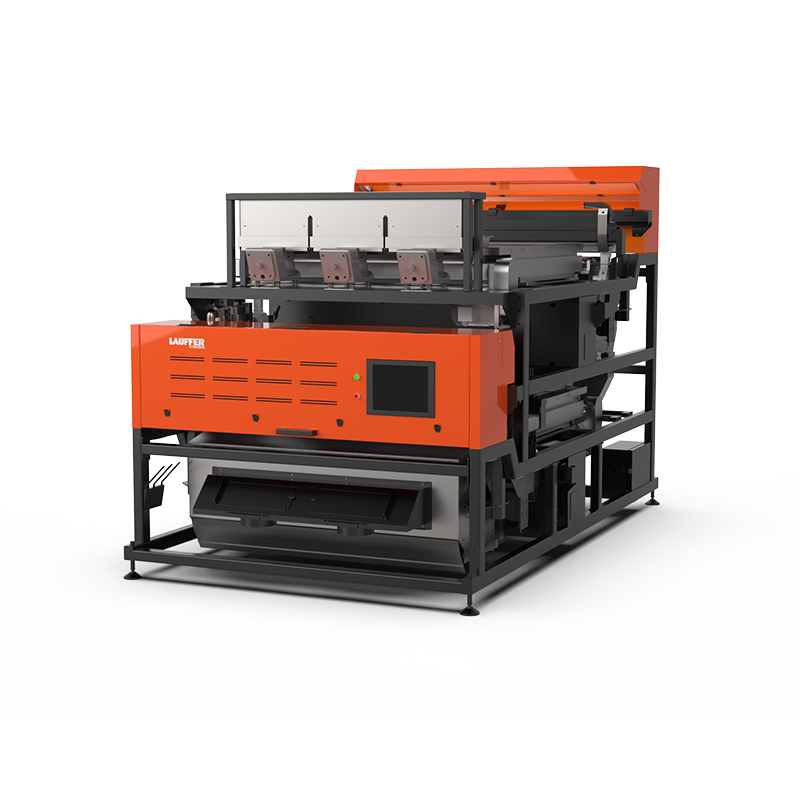

Stein HDFO ore optical sorter

Application:
Vertical/Horizontal:
Belt Width:
Air Nozzle:
  • Description
  • Specification



         Sorting ores by color, brightness and transparency. Double side scanning. For both dry & wet

         sorting.



       Applications

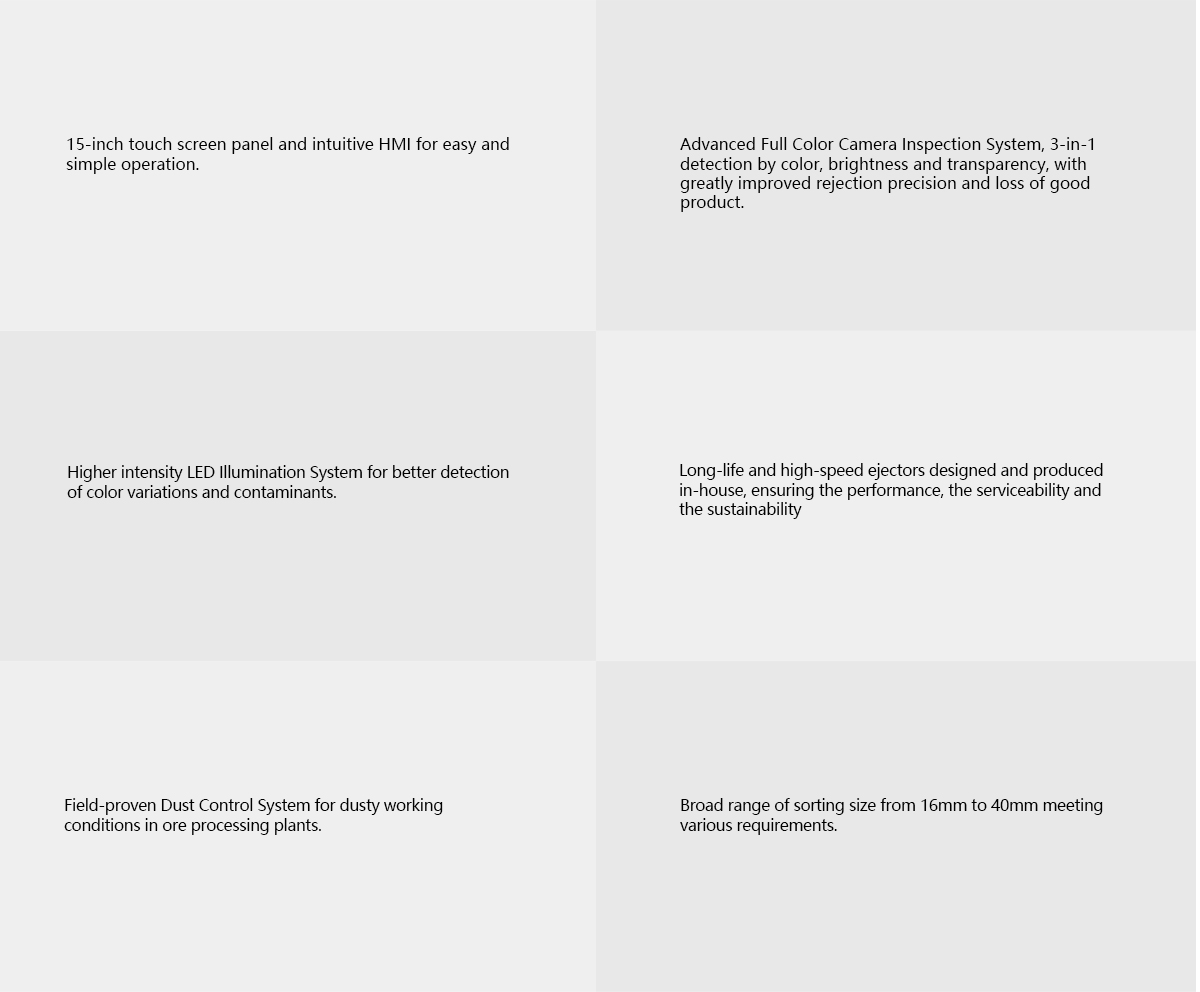

Features

l15-inch touch screen panel and intuitive HMI for easy and simple operation.

lAdvanced Full Color Camera Inspection System, 3-in-1 detection by color, brightness and transparency, with greatly improved rejection precision and loss of good product.

lHigher intensity LED Illumination System for better detection of color variations and contaminants.

lLong-life and high-speed ejectors designed and produced in-house, ensuring the performance, the serviceability and the sustainability.

lField-proven Dust Control System for dusty working conditions in ore processing plants.

lBroad range of sorting size from 16mm to 40mm meeting various requirements.


Model
HDFO3
Belt Mode
Double-belt
Belt Width (mm)
1500
Air Nozzle
192
Throughput

1~4cm: 8~15t/h

4~8cm: 5~9t/h

8~16cm: 3~7t/h

Voltage (v/hz)
220/50
Power (kw)
12
Air pressure (Mpa)
0.6~0.8
Air Consumption (L/min)
≥6000
Unpaked Weight (kg)
2700
Dimensions (mm)
3527×2172×2309
