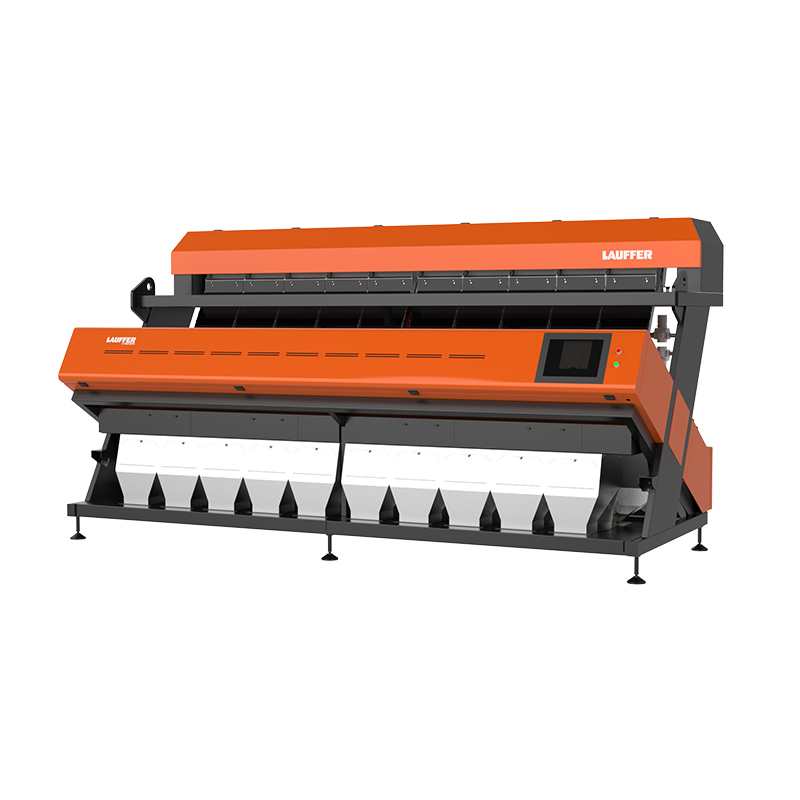

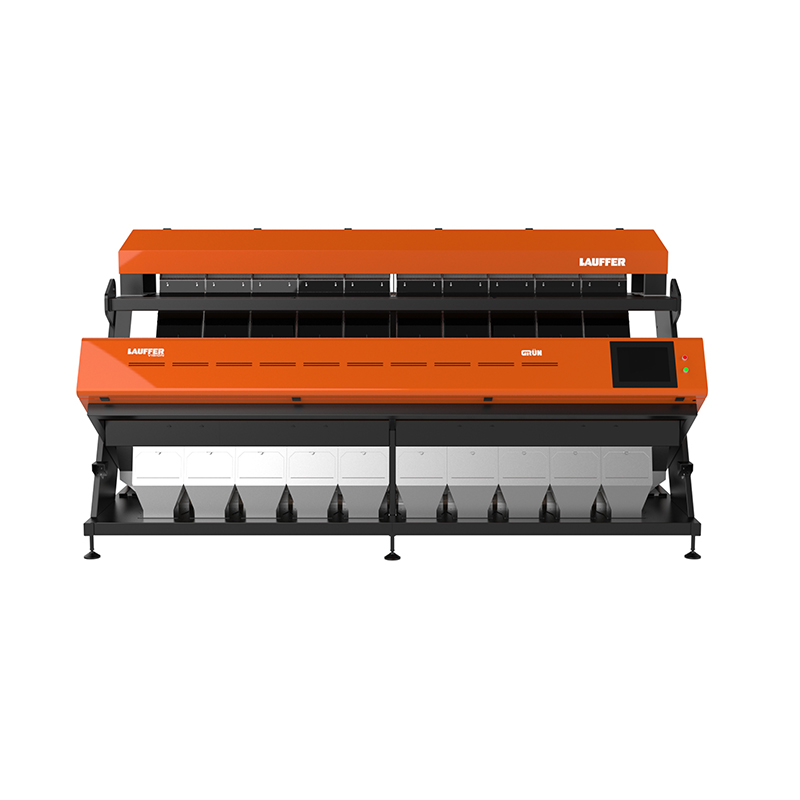

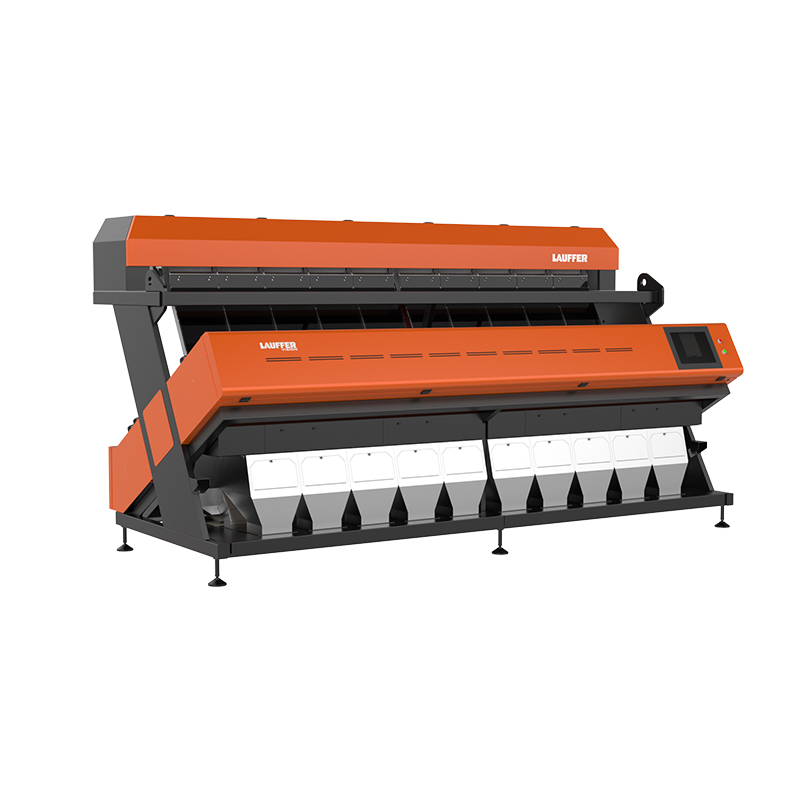

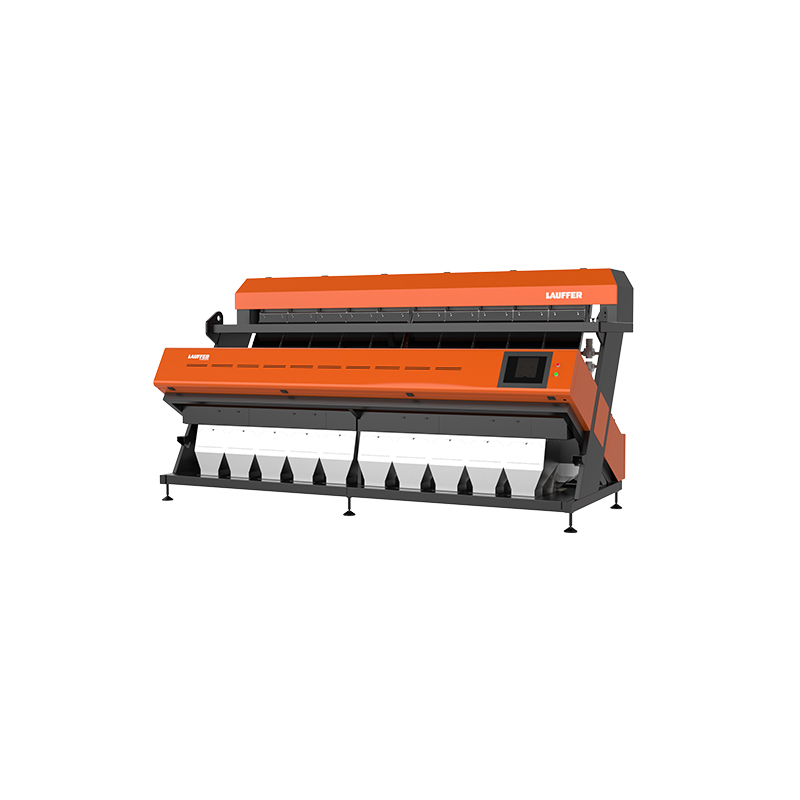

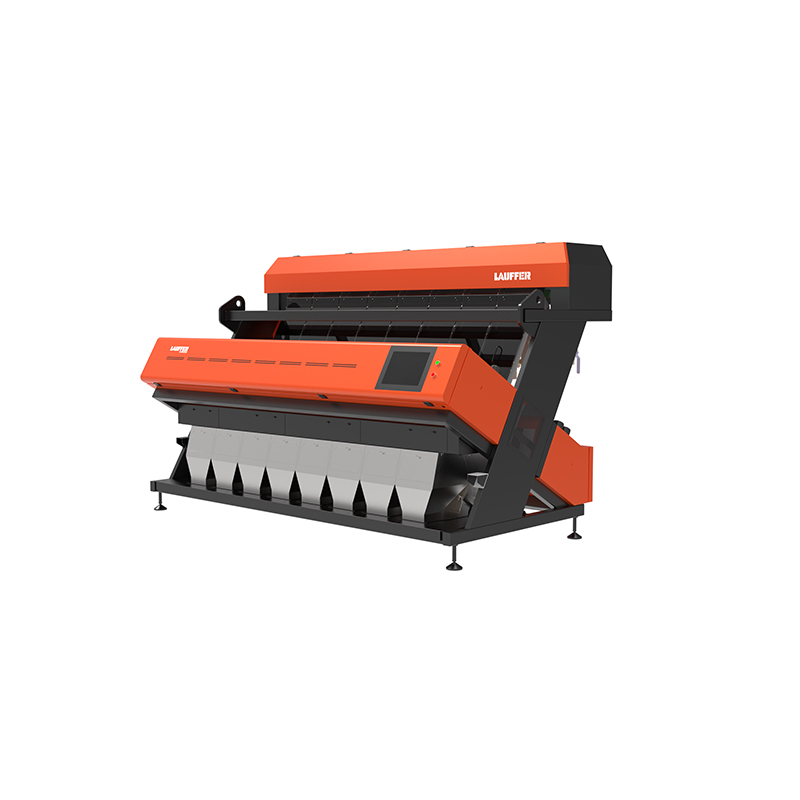

Grün VPC Optical Sorter

Accurate color detection to plastic flakes with RGB Camera System; Purifying high-value color flakes from plastic mix
Application:
Mode:
Chute:
Air Nozzles:

Grün VPC Optical Sorter is a cost-effective sorting solution designed for recycling pre-processing plants to use low-cost RGB Camera System to sort shredded plastic flakes by color, increasing recycled material value

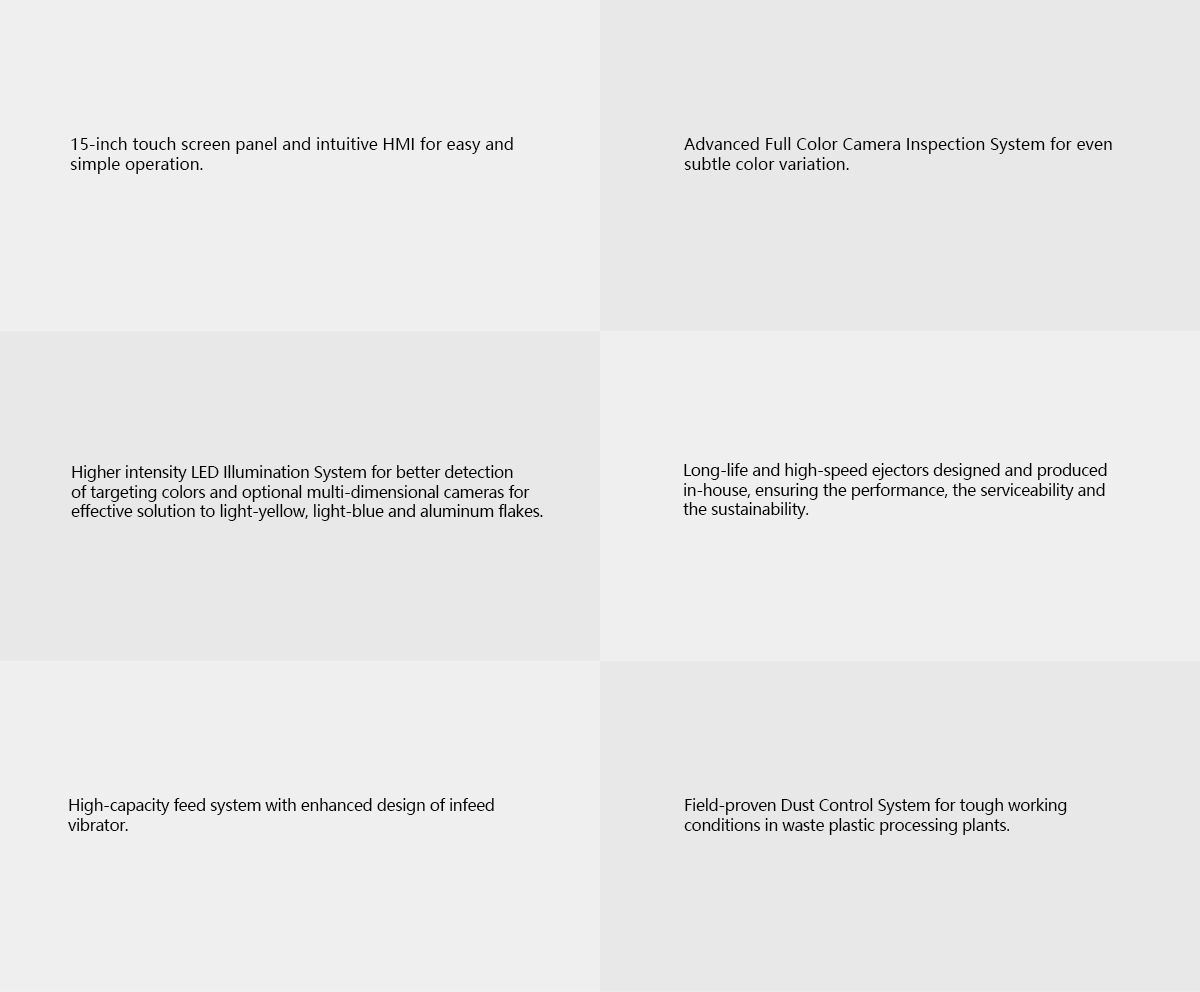

Technical Features

 Tailored Sorting Solution for Color Detection to Plastic Flakes

 High-capacity vibratory feeder evenly distributes plastic flakes into a single layer to minimize overlapping

 Sealed scanning and control boxes provide machine with high-level dust protection

 Field-proven Dust Control System integrated maintains high operation reliability and performance consistency, and minimizes downtime

 Modular design of vertical frame size from 4 to 10 chutes (4/6/8/10) provides processors more flexibility



 Reliable Industrial Inspection System

 High-Resolution RGB Camera System differentiate colors for high-purity output

 Optional NIR Camera System identifies light-yellow, light-blue and low-density aluminum flakes

 High-Intensity LED Illumination System enables detection to subtle color differences, minimizing false rejects



 High-Performance Ejector System

 Engineered for enhanced durability, optimized speed and air consumption

 Accurate rejection and reliable performance at high-capacity sorting

 Adjustable settings for typical plastic flake sizes (3-15 mm)



 15-inch Industrial Touchscreen Control Panel

 Intuitive HMI with multilingual support

 Instant switching between product profiles

 Comprehensive remote support system

 Remote Access and Monitoring

 Real-time Performance Dashboard

 Live Expert Diagnosis

 Interactive Troubleshooting

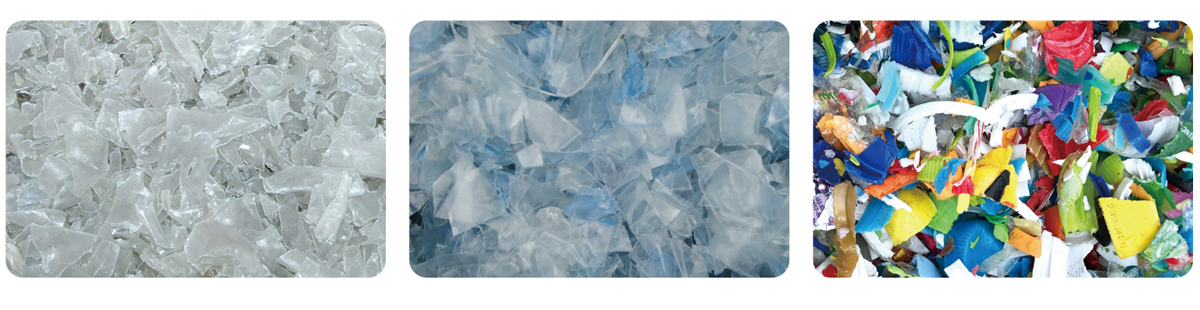

Applications



Specifications

Model

Chute

Air Nozzle

Throughput

(t/h)

Air Pressure

(mpa)

Air Consumption

(m3/min)

Power

(kw)

Unpacked Weight

(kg)

Dimension

(mm)

Grün VPC1

1 64 0.4~0.8 0.6~0.8 <1.0 0.9 680

1255×1670×1995

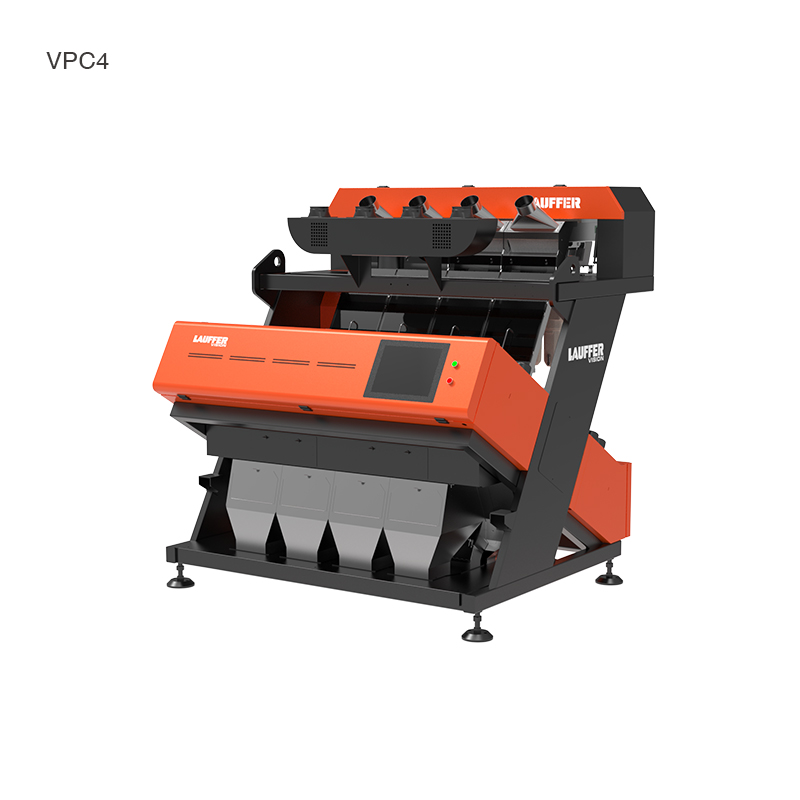

Grün VPC4
4 256 1.5~3.0 0.6~0.8
<2.0 2.9 1160

2170×1829×1995

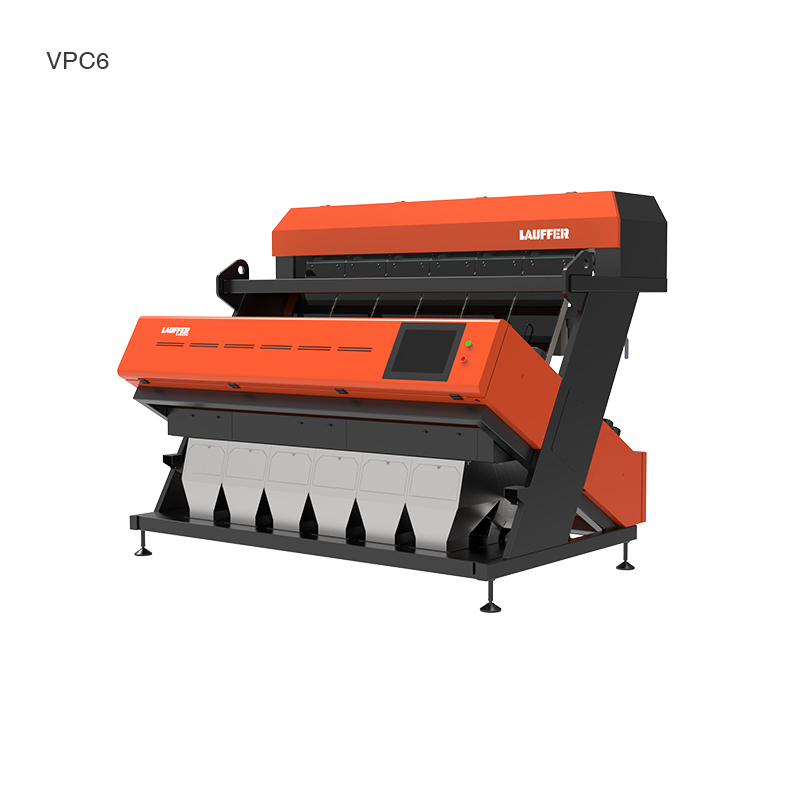

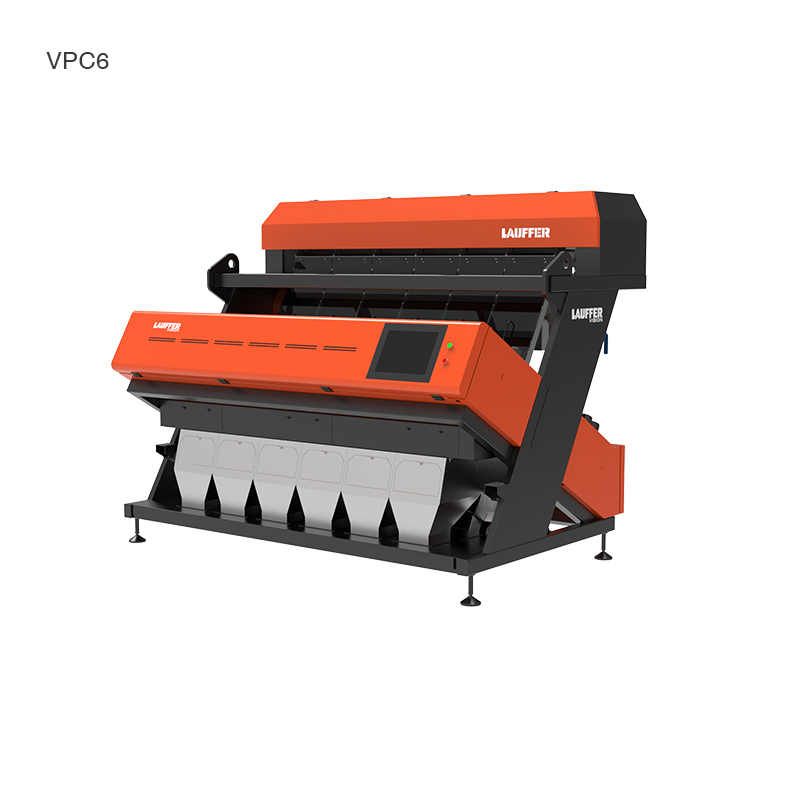

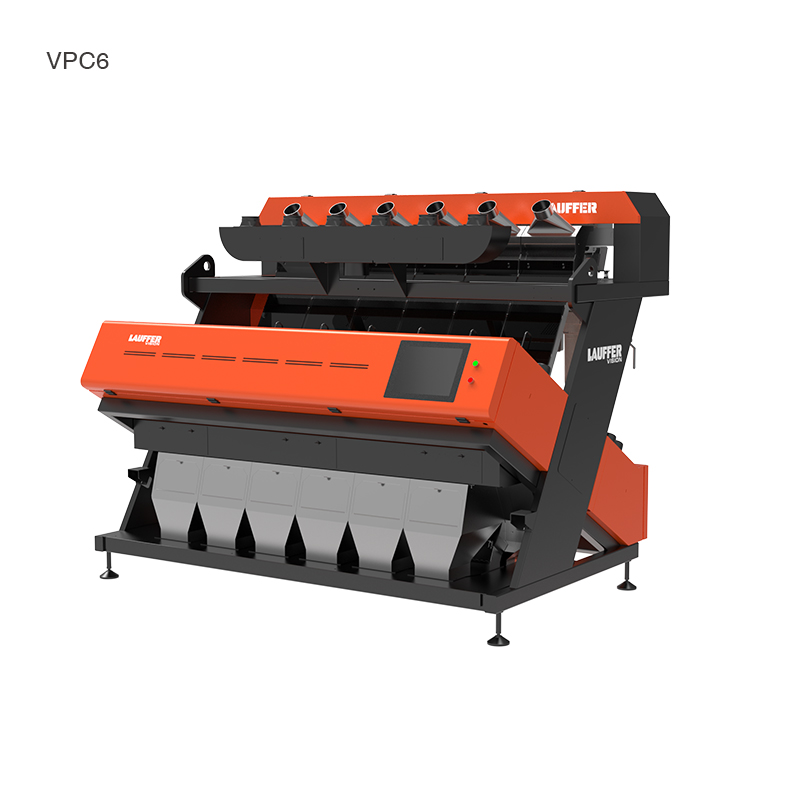

Grün VPC6
6 384 2.0~4.0
0.6~0.8
<3.0
4.4 1450 2800×1829×1995

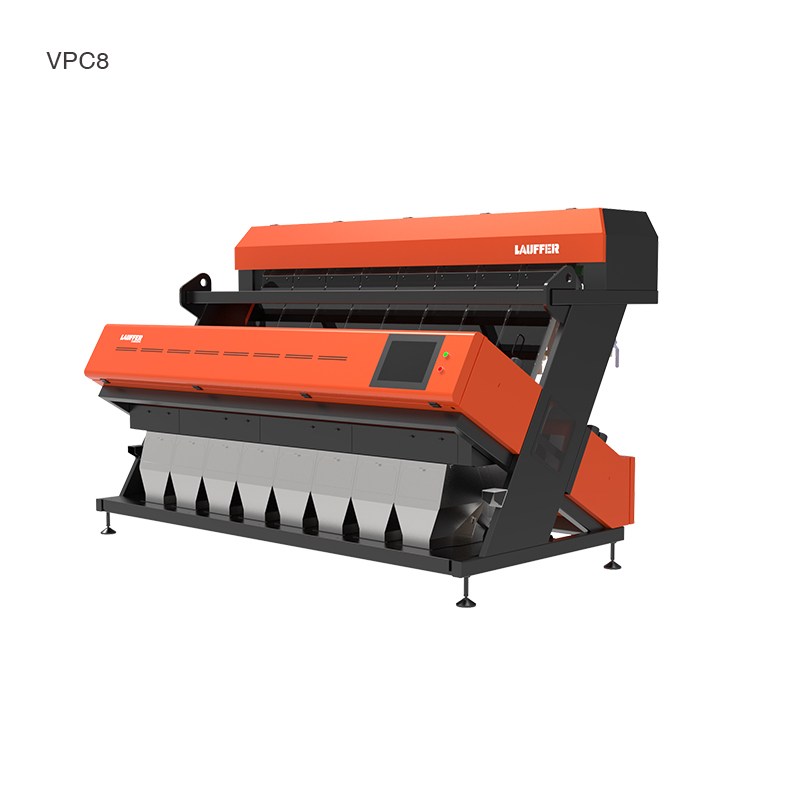

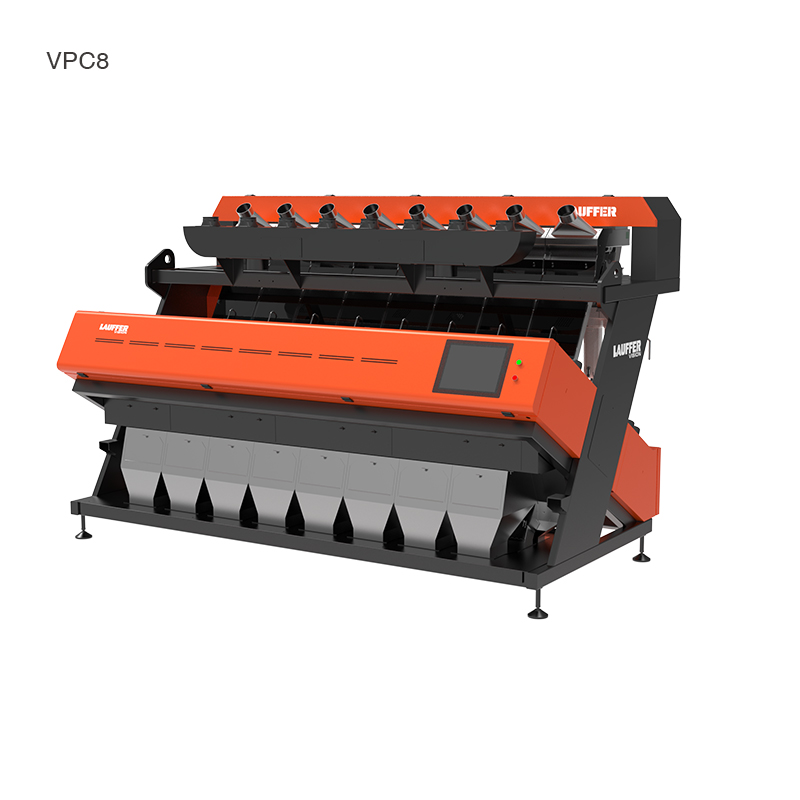

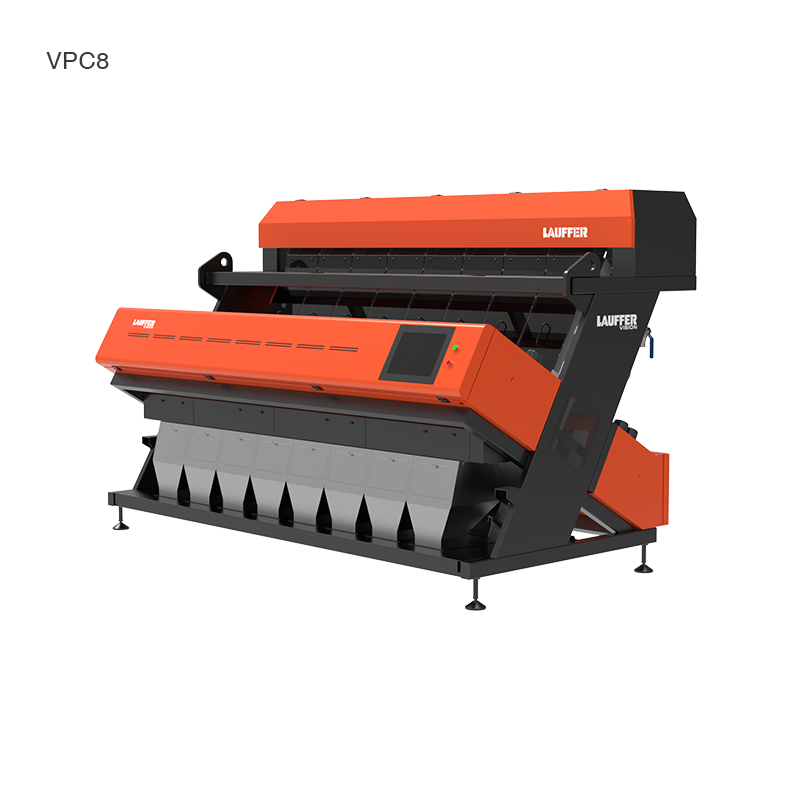

Grün VPC8
8 512 3.0~6.0
0.6~0.8
<4.0
5.9 1700 3430×1829×1995

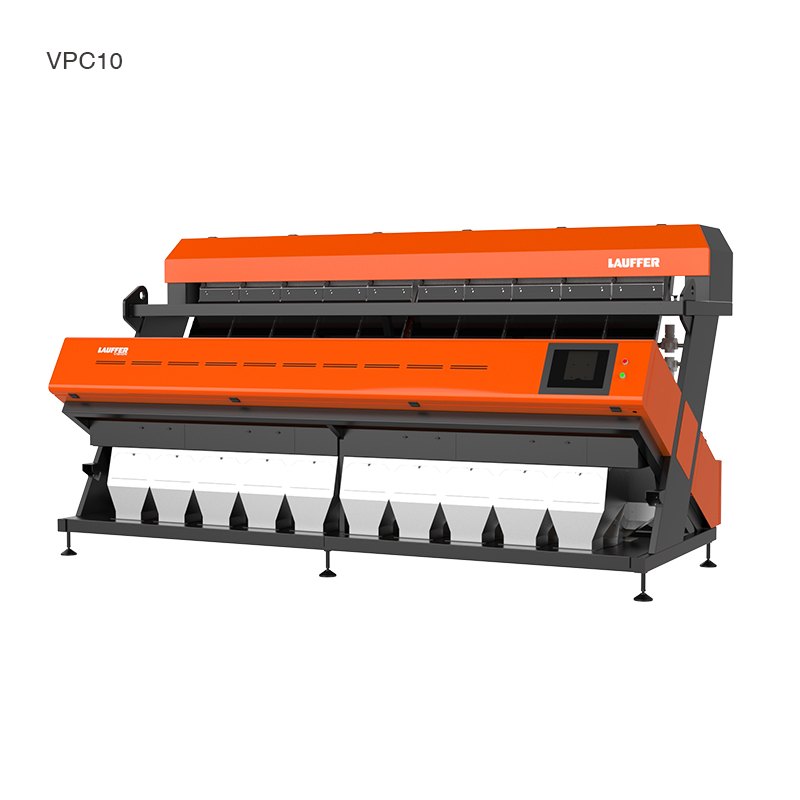

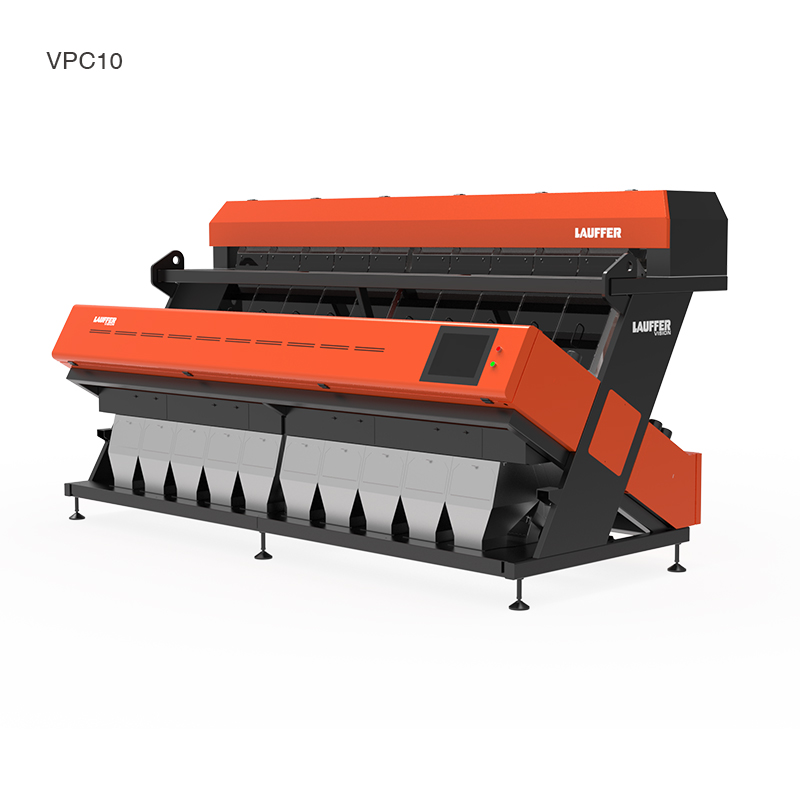

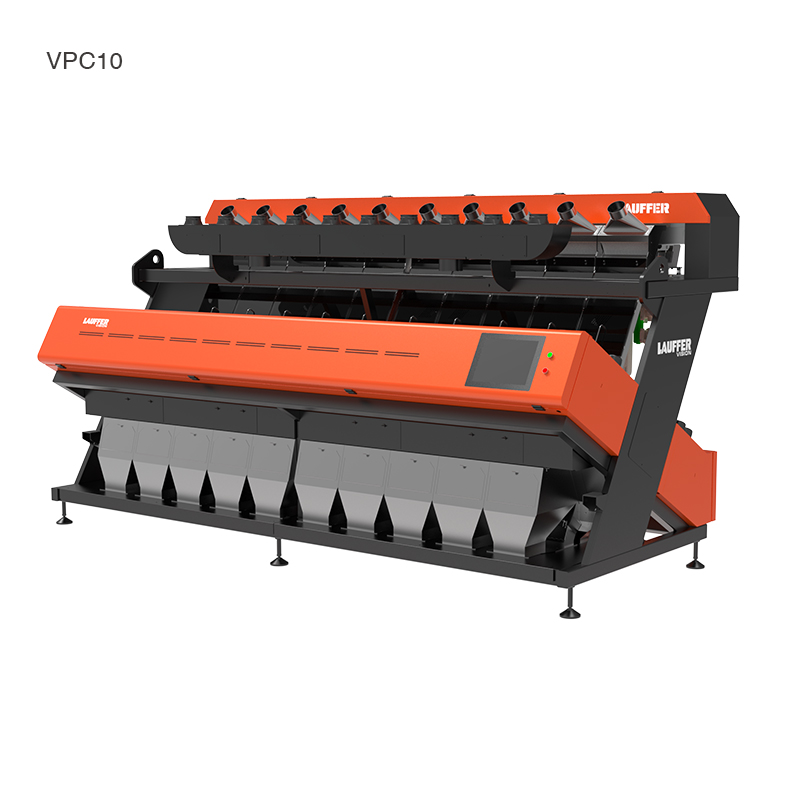

Grün VPC10
10 640 4.0~8.0
0.6~0.8
<5.0
7.3 2050 4070×1829×1995
